RunCam Camera > Product details

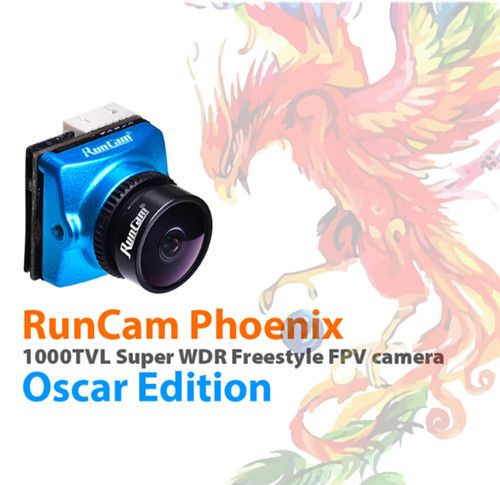

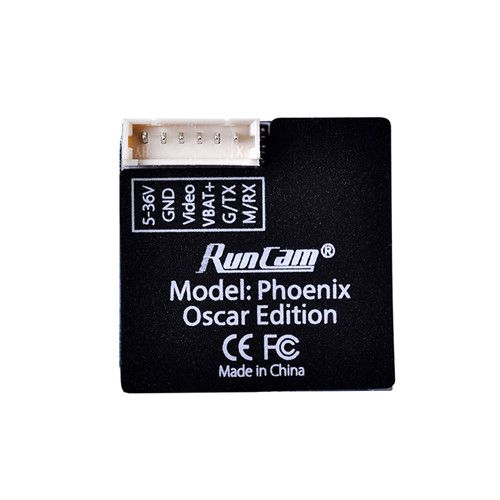

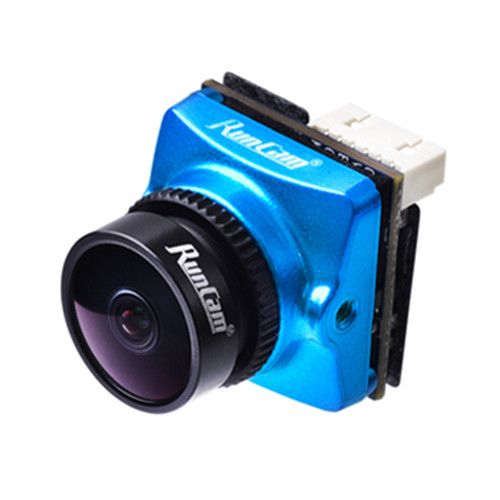

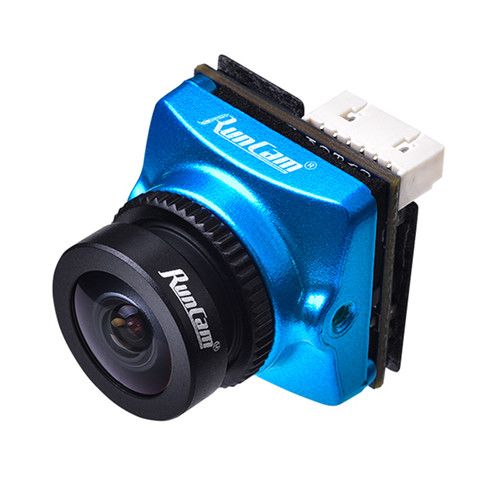

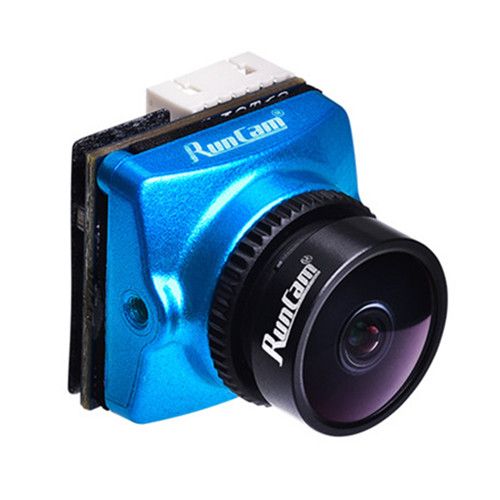

RunCam Phoenix Oscar Edition 1000tvl 1/3 Super 120dB WDR Mini FPV Camera Support OSD FC Control for RC Racing Drone

RunCam Phoenix Oscar Edition 1000tvl 1/3 Super 120dB WDR Mini FPV Camera Support OSD FC Control for RC Racing Drone
Part No.: XP504
Manufacturer: Runcam

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

RunCam Phoenix Oscar Edition 1000tvl 1/3 Super 120dB WDR Mini FPV Camera Support OSD FC Control for RC Racing Drone

Product Details

Model:RunCam Phoenix Oscar Edition
Image Sensor:1/3" 120dB WDR Sensor
Horizontal Resolution:1000TVL
Lens:2.5mm (M12) FOV140° (4:3)
Signal System:4:3 / 16:9 switchable
Mirror/Flip:Available
Signal System:PAL / NTSC Switchable
Integrated OSD:Yes
S/N Ratio:>50dB (AGC OFF)
Electronic Shutter Speed:Auto
Auto Gain Control (AGC):Auto
Min. Illumination:0.01Lux@1.2F
WDR:D-WDR
Day/Night:Color/Auto/B&W
Menu Control:Cable Control / Remote Control Switchable
Power:DC 5-36V
Current:220mA@5V
                  120mA@12V
Housing Material:ABS
Net Weight:9g
Dimensions :19mm*19mm*20mm

Item Packing

Camera x 1
1928 ABS bracket x 1
Set of screws x 1
6pin FPV silicone cable x 1
Manual x 1
