Hobbywing Xerun 2700kV AXE550 FOC sensored Brushless Power System Motor & ESC combo for Rock Crawler

Hobbywing Xerun 2700kV AXE550 FOC sensored Brushless Power System Motor & ESC combo for Rock Crawler
Part No.: AXE550KV-2700kv-FOC
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Product Name:XeRun Axe Brushless Power System
Type
Scale:1/10th
Brushed/Brushless:BL
Sensored/Sensorless:SD FOC
Waterproof:YES(IP67)
Applications:1/10thRock Crawler
Specifications
Cont./Peak Current:60A/360A
Input Voltage:2-3S Lipo/6-9 Cell NiMH
BEC Output:Switch Mode:6V/7.4V@3A
Wires & Connectors
Input Wires:Red-14AWG-200mm*1/ Black-14AWG-200mm*1
Output Wires:No
Input Connectors:XT60
Output Connectors:Solder Posts
ESC Programing via
SET Button on ESC:Not Supported
LED Program Box:Not Supported
LCD Program Box:Not Supported
WiFi Module:Not Supported
Bluetooth Connection:Supported
Firmware
Firmware Upgrade:Supported
Size:47.4x36.2x24.6mm
Weight:82g

Product Details

Motor:2700KV
Combo Number:38020277
Poles:4
Resistance(Ω):0.016
No-load Current (A):2.7
Motor Diameter(mm):36.0(1.42in)
Motor Length(mm):66.2mm(2.61in)
Shaft Diameter(mm):5(0.197in)
Shaft Length(mm):16(0.63in)
Weight(g) :289(10.0oz)

Item Packing

Hobbywing Xerun 2700kV AXE550 FOC sensored Brushless Power System Motor & ESC combo x 1

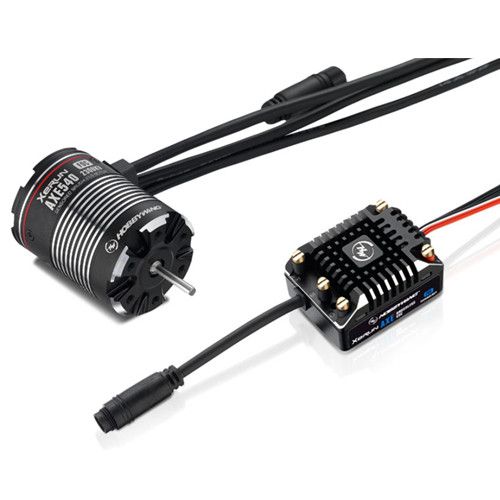

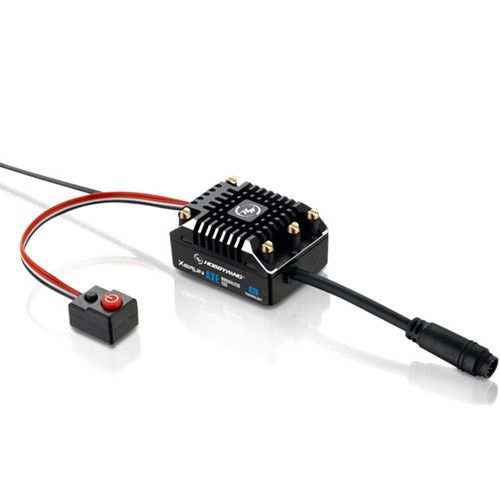

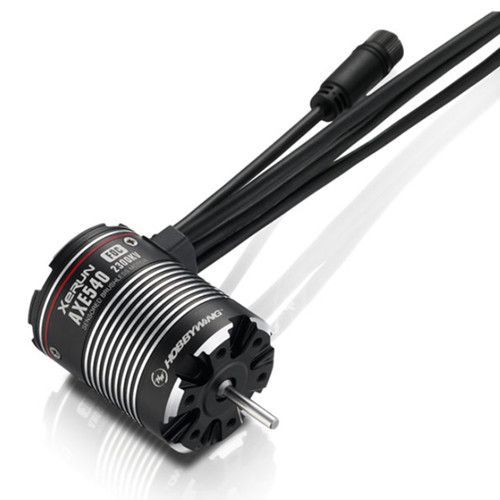

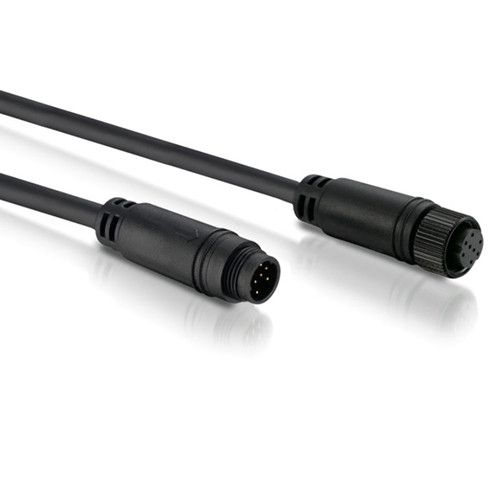

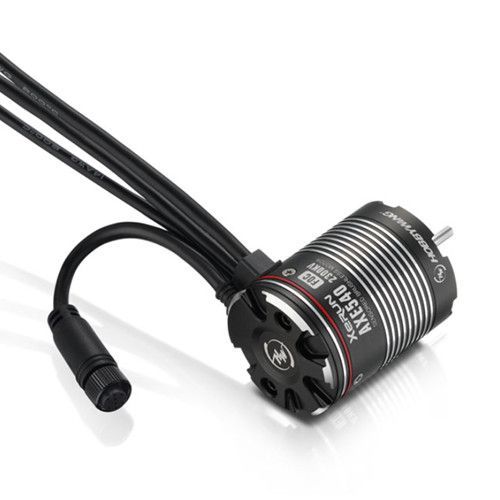

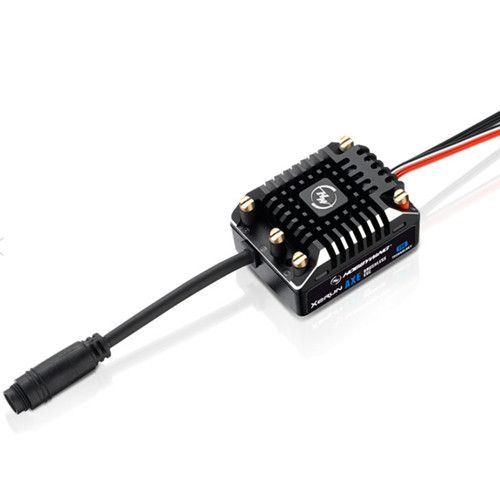

Detailed Images
