Tarot 4006 620KV Brushless Motor TL68P02 for Multi-axis Copters Multicopters
| Part No.: | BM-4006 |
| Manufacturer: | TAROT |
Send to a friend
Features
Tarot 4006 620KV Brushless Motor TL68P02 for Multi-axis Copters Multicopters
Product Details
- The motor outer diameter: 46MM
- The stator diameter: 40.6M
- The stator end thickness: 6MM
- The stator terminal number: 24 slot
- Motor pole number: 22P
- The wire diameter: 0.23MM
- Gear shaft installation - diameter: 4MM
- Motor height: 22.0MM
- The motor shaft length: 30.50MM
- Per volt speed: 620 RPM / Volt
- Motor weight: 82G
- Motor resistance: 126 M
- No load current 14.8V: 0.8A
- 14.8 load current: 14A
- 4006 brushless motor mounting specifications: 27.7MM equilateral triangle
- The stator diameter: 40.6M
- The stator end thickness: 6MM
- The stator terminal number: 24 slot
- Motor pole number: 22P
- The wire diameter: 0.23MM
- Gear shaft installation - diameter: 4MM
- Motor height: 22.0MM
- The motor shaft length: 30.50MM
- Per volt speed: 620 RPM / Volt
- Motor weight: 82G
- Motor resistance: 126 M
- No load current 14.8V: 0.8A
- 14.8 load current: 14A
- 4006 brushless motor mounting specifications: 27.7MM equilateral triangle
Item Packing
- 4006/620KV brushless motor 82G x 1
- Cup head screw M3 * 6MM * 3
- Half round head screw M3 * 8MM * 2
- Metal rotor mounted 2.5G * 1
- Cup head screw M3 * 6MM * 3
- Half round head screw M3 * 8MM * 2
- Metal rotor mounted 2.5G * 1

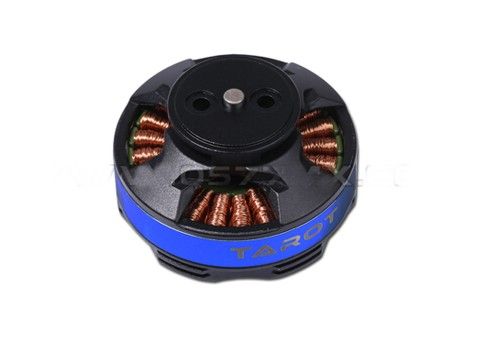

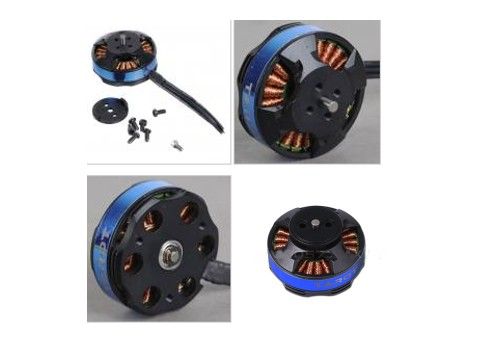

Detailed Images
