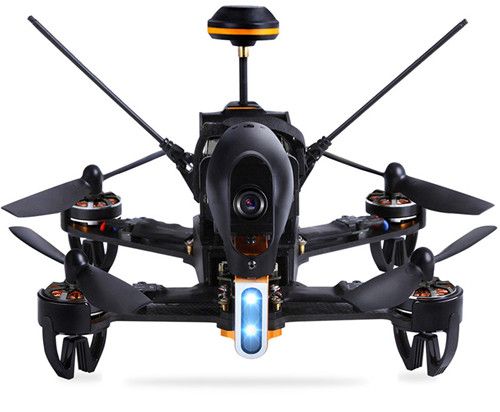

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller for FPV

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller for FPV
Part No.: F210-KIT
Manufacturer: Walkera

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller for FPV (does not include DEVO7 radio/Camera/OSD/Battery/Charger)

Features:

Incomparable advantages, exceed your expectation
Bow and streamlined design, combined with the physical mechanics, its four wheelbases are equal. The center of gravity moves to the central point,
makes flight agiler, more reliable and stable. The racer Body is made of carbon fiber materials, plus a protective cover motor design, all makes the F210 solid and anti-crash and its flight speed comparable to F1 racing .

Standard equidistant axis design
Standard axis equidistant design, independent research and development. Better agility and flexibility, faster and easier to fly.

Demanding flight support
With Brushless motor plus guard landing cushion frame design , the F210 passed various rigorous reliability tests, Including drop test , crash test bending resistance test , high and low temperature test and humidity test , etc. Which guarantee the racer’s high quality and safe flight.

Modular design to break stereotypes
A combination of different modules, enclosed modular design, F 210 is safe, and anti-crash, easy to install and disassemble. With the latest F3flight system, the professional speed controller and 5.8G image transmission, the players set the speed freely according to their needs. By selecting and combining modules, the player can DIY the F210 to different products, which can need the different demands of various players

Personalized setting
Players can set the flight control parameters according to their needs. The F3 flight controller, provide a platform for the experts from worldwide to exchange ideas.

Mushroom antenna
Ultra-long transmission range, real-time obtain the flight status and flight data, transmission distance over 800 meters, even in the FPV flight, the screen effect is very smooth

Anti-collision and ruggedness

The bow design, Based on anti-collision and anti-drop mechanics, reduce the impact of surface damage to a minimum, ensure the safety of normal flight

Product Details

- Main Rotor Dia: 128mm
- Overall (L x W x H): 182x182x103mm
- Weight: 370g(Battery included)
- Receiver: DEVO-RX713
- Main Controller: FCS-F210(F3)
- Transmitter: TX5825(FCC)/TX5824(CE)
- Brushless Motor: WK-WS-28-014A(CW/CCW)KV2500
- Brushless ESC: F210(CW/CCW)
- Battery: 14.8V 1300mAh 40C 4S Li-PO
- Flight Time: 8~9mins
- Working environment: -10℃ ~ +40℃

TX5825(FCC)/TX5824(CE) transmitter
- 5.8G wireless image transmission
- TX5825(FCC) Bind B section: 4 channels
- TX5824(CE) Bind B section: 8 channels
- TX5825(FCC) output power: ≤200mW
- TX5824(CE) output power: ≤25mW

Item Packing

- 1* F210 quadocpter (does not include DEVO7 radio/Camera/OSD/Battery/Charger)
