Micro 2.4G 5ch DSM2 Receiver with PPM Input Brush/Brushless Race Drone Indoor

Micro 2.4G 5ch DSM2 Receiver with PPM Input Brush/Brushless Race Drone Indoor
Part No.: XP114
Manufacturer: hymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Micro 2.4G 5ch DSM2 Receiver with PPM Input Brush/Brushless Race Drone Indoor



Product Details

Item Name: DSM2 Micro RC Receiver
Channels: 5 channels (6 channels PPM)
 Receiving Sensitivity: -99dBm
Frequency Range: 2.4-2.48GHz
Power: 3.7-5V DC
Weight: 0.28g
Antenna Length: 30mm

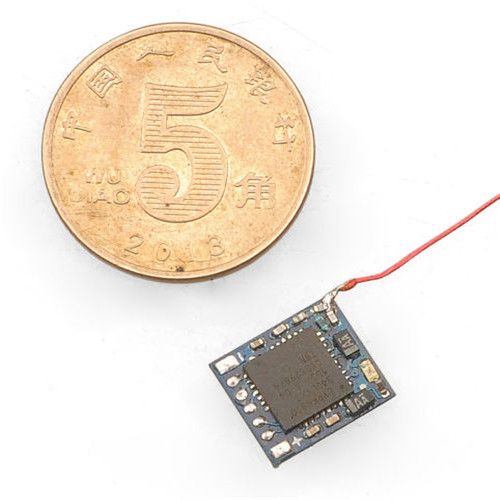

Size: 9.5mm*10.5mm*2.5mm

Generally this DSM2 could support all JR and Spektrum transmitter. It also could support WALKERA DEVO 10 and DEVO 7E with deviation firmware. And it could support all transmitter which has DSM2 protocol.

There is no bind pin designed, the receiver has an "autobind" procedure just like with small quad-copters. When switch on, receiver tries to bind with transmitter for about 3s (led is blinking). If receiver find a transmitter (must be also in bind mode) then it records transmitter identifier and works with it. If it can't bind with a transmitter then is retrieves previously bind transmitter identifier and works with it. This way, you save an extra pin and just need to bind only once. After bind procedure, If reception is ok then led if on, if no reception at all led if off, if reception if bad led is blinking randomly.

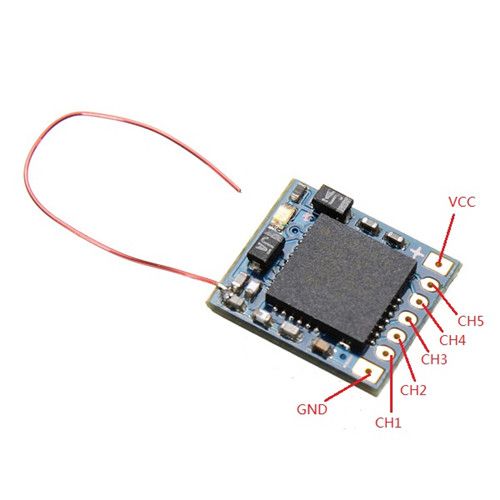

CH1 to CH5 is servo signal output.
If CH1 connect to GND, CH2 will output 6CH PPM signal.

Item Packing

1 x  DSM2 5CH Micro Receiver

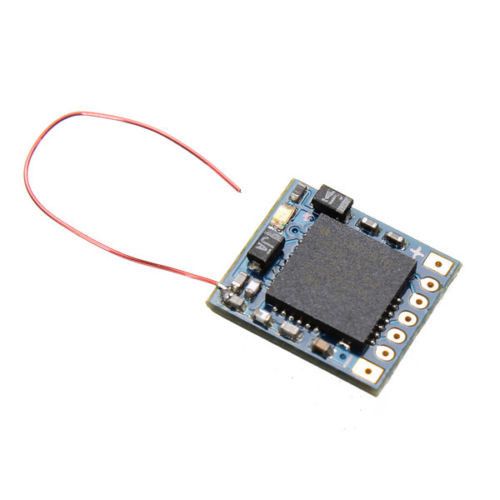

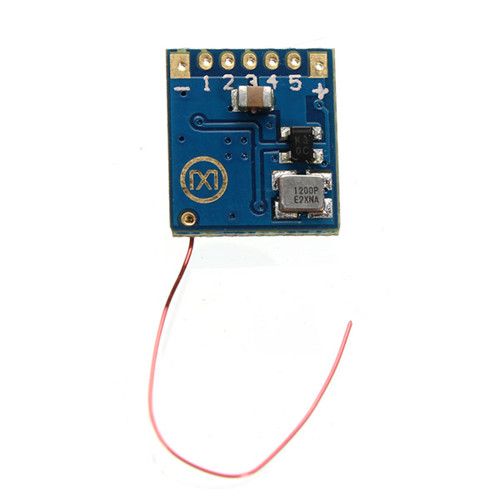

Detailed Images
