Holybro Pixhawk 6C Autopilot H743 Flight Controller (Aluminum Case) PM07 Power Module M9N GPS for RC Multirotor Airplanes 20250
| Part No.: | PIX6C-PM07 |
| Manufacturer: | Holybro |
Send to a friend
Features
The Pixhawk® 6C is the latest update to the successful family of Pixhawk® flight controllers, based on the Pixhawk® FMUv6C Open Standard and the Connector Standard. It comes with PX4 Autopilot® pre-installed. Inside the Pixhawk® 6C, you can find an STMicroelectronics® based STM32H743, paired with sensor technology from Bosch® & InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle, suitable for both academic and commercial applications.
The Pixhawk® 6C’s H7 microcontroller contain the Arm® Cortex®-M7 core running up to 480 MHz, has 2MB flash memory and 1MB RAM. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models. The FMUv6C open standard includes high-performance, low-noise IMUs on board, designed to be cost effective while having IMU redundancy. A vibration isolation System to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances.
The Pixhawk® 6C is perfect for developers at corporate research labs, startups, academics (research, professors, students), and commercial application.
Product Details
Processors & Sensors
FMU Processor: STM32H743
- 32 Bit Arm® Cortex®-M7, 480MHz, 2MB memory, 1MB SRAM
IO Processor: STM32F103
- 32 Bit Arm® Cortex®-M3, 72MHz, 64KB SRAM
On-board sensors
- Accel/Gyro: ICM-42688-P
- Accel/Gyro: BMI055
- Mag: IST8310
- Barometer: MS5611
Electrical data
Voltage Ratings:
- Max input voltage: 6V
- USB Power Input: 4.75~5.25V
- Servo Rail Input: 0~36V
Current Ratings:
- Telem1 Max output current limiter: 1.5A
- All other port combined output current limiter: 1.5A
Mechanical data
- Dimensions: 84.8 * 44 * 12.4 mm
- Weight (Aluminum Case) : 59.3g
- Weight (Plastic Case) : 34.6g
Item Packing
Pixhawk 6C Flight Controller x 1
PM07 14S Power Module x 1
M9N GPS x 1

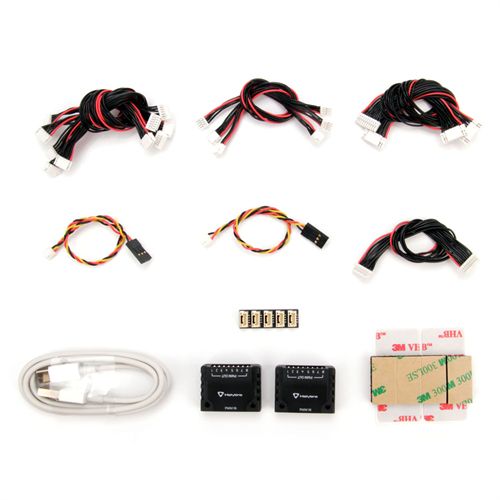

Cable Set x 1
PM07 14S Power Module x 1
M9N GPS x 1
Cable Set x 1
Detailed Images
