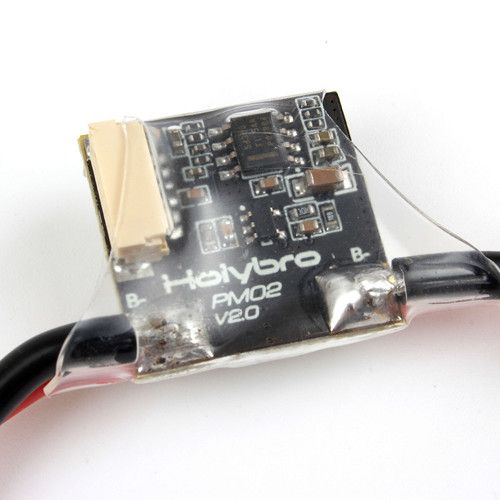

Holybro APM Power Module With XT60 Connectors Galvanometer APM PIXHAWK Power Module

Holybro APM Power Module With XT60 Connectors Galvanometer APM PIXHAWK Power Module
Part No.: PIX-PM02
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

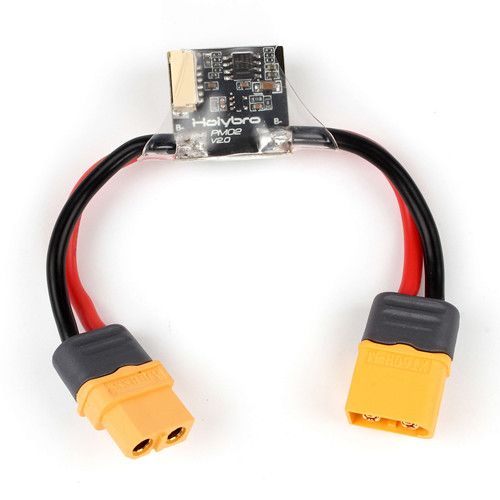

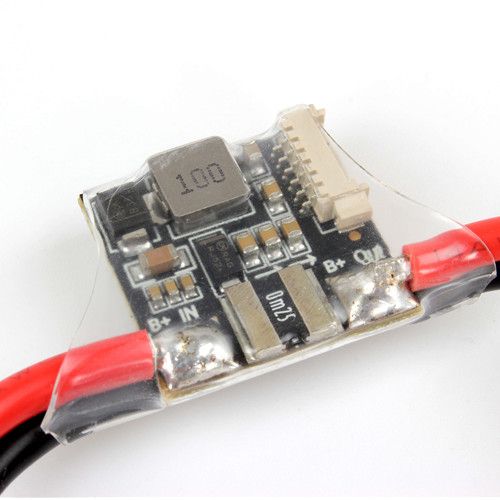

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 10S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.

Product Details

Max input voltage: 42V
Max current sensing: 120A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.2V and 3A max
6-pos Molex cable plugs directly to APM/Pix32's 'PM' connector
6-pos GH cable plugs directly to Pixhawk4/Pixhawk4 mini 'PM' connector

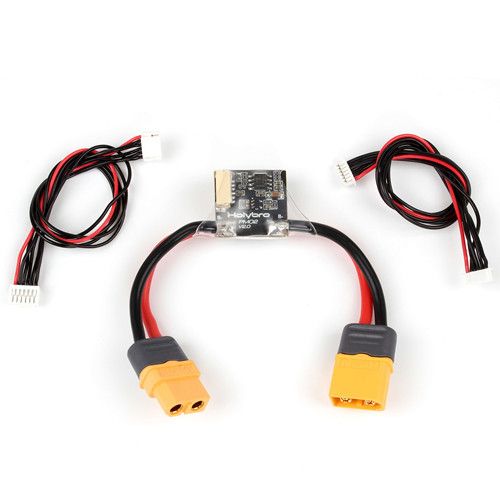

Item Packing

APM Power Module  x 1
Molex 6 Position Connector 15 cm x 1
GH 6 Position Connector 15 cm x 1

Detailed Images
