Happymodel PWM High Torque HV 28V 6S 120KG Metal Gear Servo Robot Servo

Happymodel PWM High Torque HV 28V 6S 120KG Metal Gear Servo Robot Servo
Part No.: HA-PWM120
Manufacturer: happymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The servo is suitable for flat installation in the wing of the drone. It is installed with 4 large-span M5 screws. The mechanical structure is stable and saves vertical space for the servo installation. Servos installed in this way are usually used to control the flaps and ailerons of the aircraft.

The weight of the servo body is 305 grams. The servo arm weighs 20 grams.

Product Details

Working voltage range: DC24V-28V
Locked torque: 24V: 100kg.cm, 28V: 120kg.cm
Rated torque: 40kg.cm
Locked rotor current: 24V: 4A, 28V: 4.6A
Empty speed: 24V: 206 degrees per second, 28V: 240 degrees per second
Rated speed: 24V: 172 degrees per second, 28V: 200 degrees per second
Travel: ± 60 °
Working temperature: -40 ° C+ 65 ° C
Storage temperature: -55 ° C+ 85 ° C

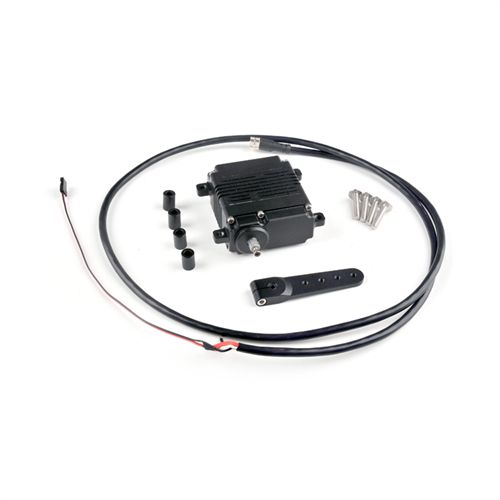

Item Packing

Happymodel PWM 120KG Servo x 1

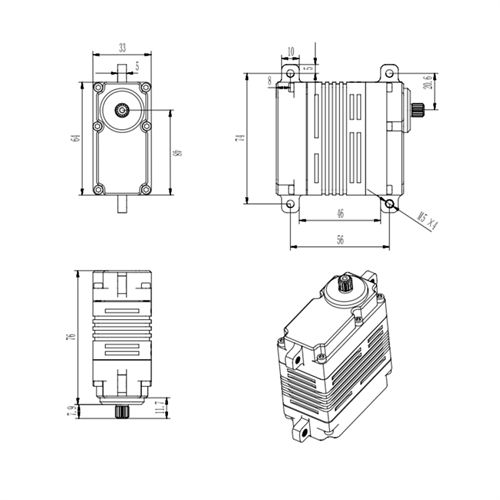

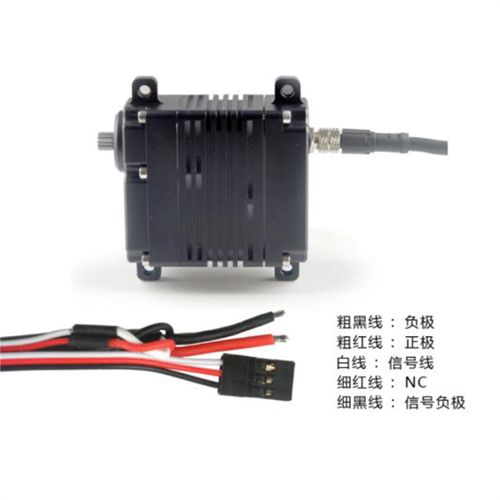

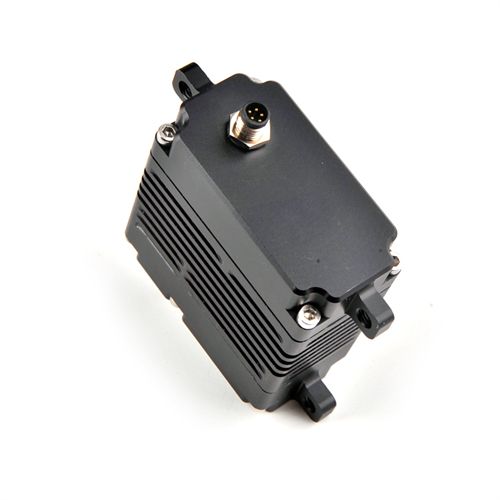

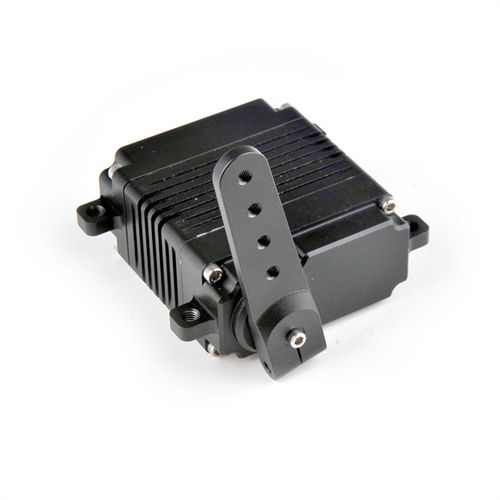

Detailed Images
