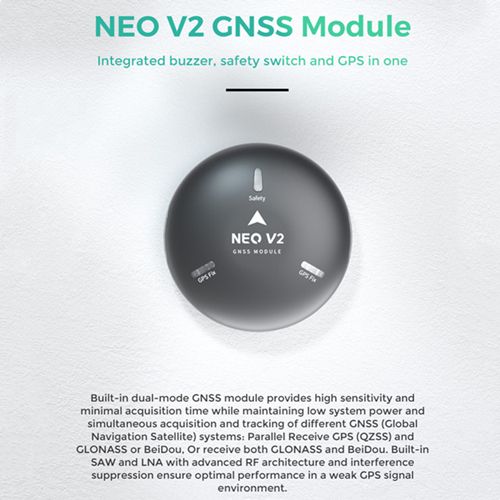

CUAV NEO V2 GPS GNSS Module w/ U-BLOX M8N GPS E-Compass Buzzer LED for Pixhack V5+ PX4 flight control

CUAV NEO V2 GPS GNSS Module w/ U-BLOX M8N GPS E-Compass Buzzer LED for Pixhack V5+ PX4 flight control
Part No.: CUAV-NEOV2
Manufacturer: CUAV

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

CUAV NEO V2 GPS GNSS Module w/ U-BLOX M8N GPS E-Compass Buzzer LED for Pixhack V5+ PX4 flight control

Product Details

Chip Type
-GPS Location:UBLOX M8N

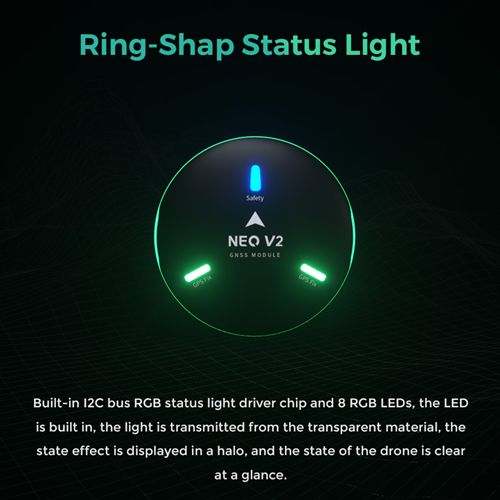

-RGB Status light:NCP5623C
-Compass:IST8310
-Buzzer:Passive buzzer
-Buzzer:Physical buttons

Positioning Performance
-Accuracy:3D Fix
-Update rate:10Hz(Max)
-Acquisition:Cold Start 26S | Host Start 1.5S | Aided Start 2S | Reacquisition 1S
-Receiver type:72 Channels GPS/QZSS L1 C/A, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
-Sensitivity:Tracking & Navigation -167dBm | Cold Start -148dBm | Hot Start -156dBm | Reacquisition -160dBm
-Functional:1. Advanced jamming;2. Fast search satellite speed Security and integrity protection;3. Receiving up to three GNSS at the same time

Working Conditions
-Input voltage:5V
-Temperature:-10 - 70°C

Item Packing

NEO V2 GPS GNSS Module (V5 New Version) x 1

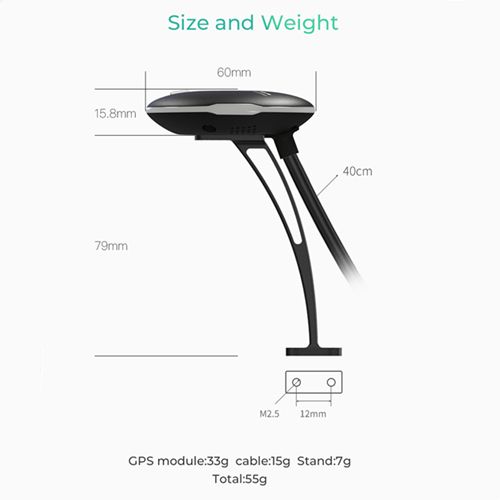

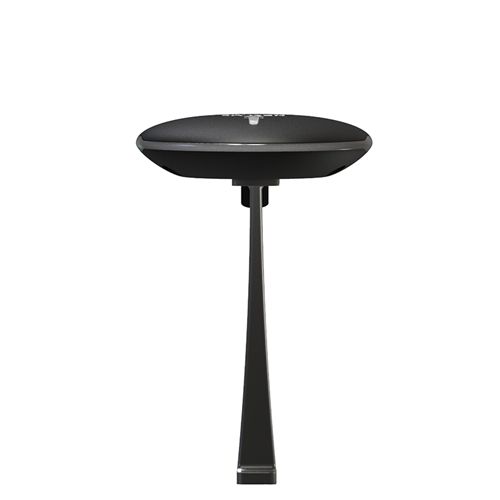

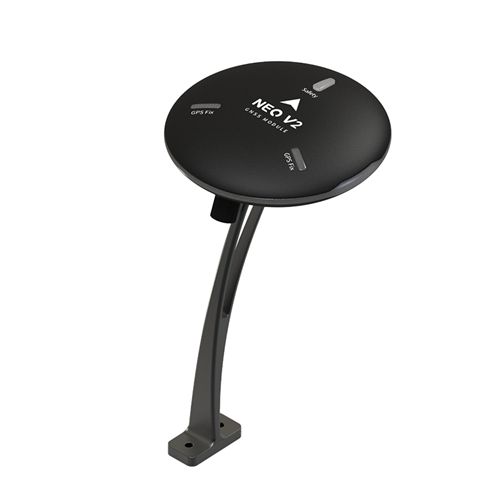

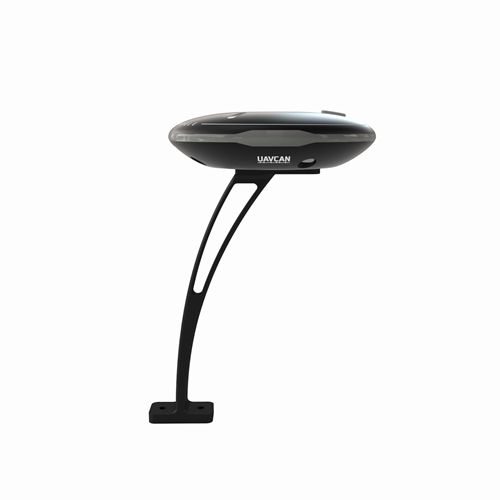

Detailed Images
