Hobbywing Platinum HV 130A V4 BEC / OPTO 6-14S Lipo Empty mold Brushless ESC for RC Drone Helicopters Aircraft

Hobbywing Platinum HV 130A V4 BEC / OPTO 6-14S Lipo Empty mold Brushless ESC for RC Drone Helicopters Aircraft
Part No.: PL-HV130A-V4
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Hobbywing Platinum HV 130A V4 BEC / OPTO 6-14S Lipo Empty mold Brushless ESC for RC Drone Helicopters Aircraft

Product Details

Product Name:Platinum HV 130A V4
Product Number:30209200
Type
- Brushed/Brushless:BL
- High Voltage/Regular:High Voltage
Specifications
- Cont./Peak Current:130A/160A
- Input Voltage:6-14S LiPo
- BEC Output:Switch Mode:5-8V,10A
Wires & Connectors
- Input Wires:Red-12AWG-150mm*1/Black-12AWG-150mm*1
- Output Wires:Black-12AWG-100mm*3
- Input Connectors:No
- Output Connecotors:No
(Note: All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
- Transmitter:Not Supported
- LED Program Card:Not Supported
- LED Program Box:Not Supported
- LCD Program Box:Supported
- WiFi Module:Supported
- OTA Programmer:Supported
- Program Port:Separate Program Port
Firmware Upgrade:Supported
Size:101.0x45.5x27.0mm
Weight:169g
Applications:550-600 Class Heli (Main Blade: 550-690mm)
.90-.140 Class Fixed-wing Airplane, 2m FAIF3A & 3D
EDF (with Diameter≦105mm)

Item Packing

Platinum HV 130A V4 Brushless ESC x 1

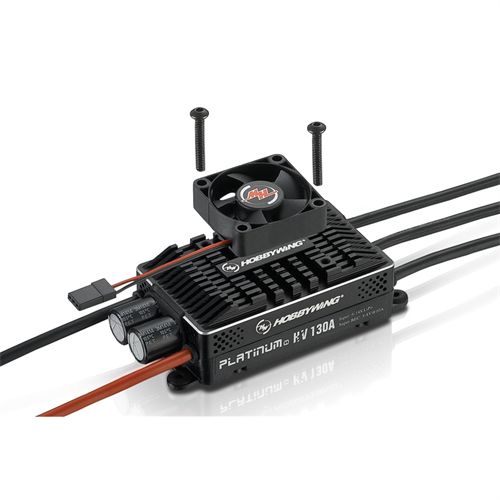

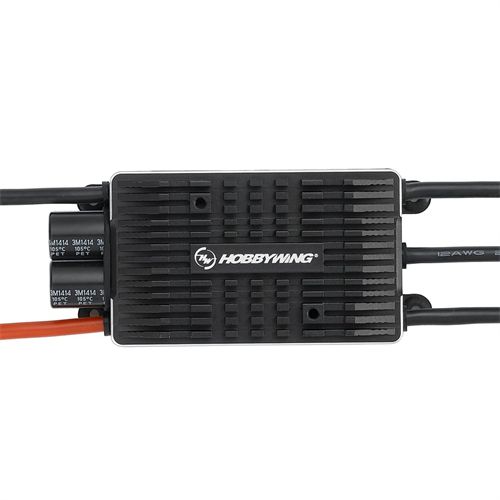

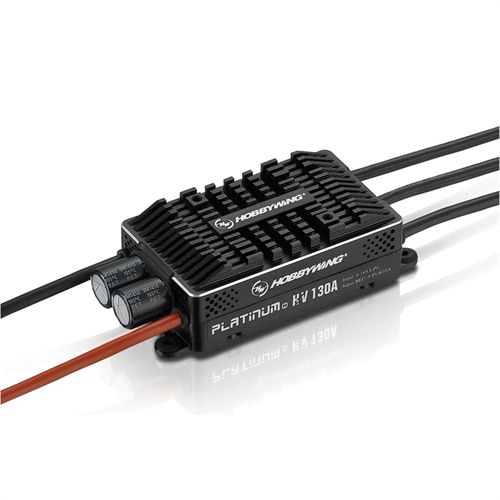

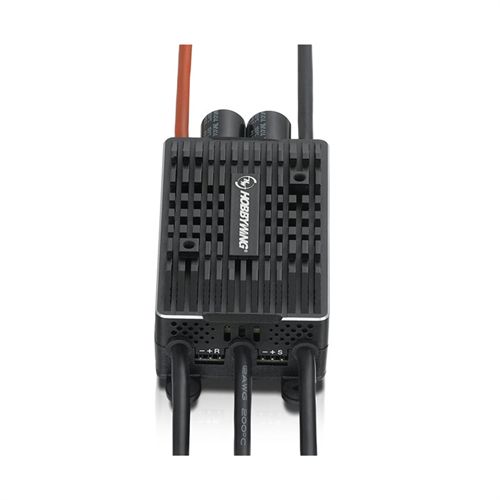

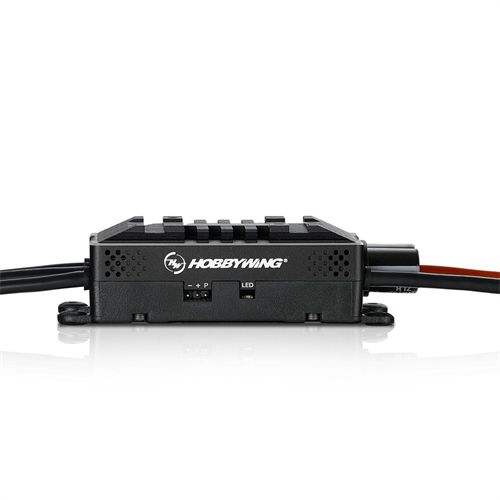

Detailed Images
