Q2434 Multi axis multi rotor motor propeller seat, carbon fiber propeller quick disassembly and quick installation propeller seat
| Part No.: | Q2434 |
| Manufacturer: | Feixiang |
Send to a friend
Features
*7075 aluminum material increases strength and wear resistance. The wave washer not only alleviates swaying but also has a good shock absorption effect.
*The special-shaped design of the locking plate and groove has less play and closer fit. The screw presses the locking plate a second time for more accurate positioning.
*The special-shaped design of the locking plate and groove has less play and closer fit. The screw presses the locking plate a second time for more accurate positioning.
Product Details
Propeller center hole diameter: 10mm.
Propeller size: 24 - 34 inches.
Hole position: 20mm (center hole 10mm).
Motor shaft diameter: 8/10mm.
Motor model: 70×× - 80××, U8I - U12.
Maximum tension: <20 kg.
Weight: 40g.
Recommended service life: 500 hours.
Propeller size: 24 - 34 inches.
Hole position: 20mm (center hole 10mm).
Motor shaft diameter: 8/10mm.
Motor model: 70×× - 80××, U8I - U12.
Maximum tension: <20 kg.
Weight: 40g.
Recommended service life: 500 hours.
Item Packing
1×Q2434 Multi axis multi rotor motor propeller seat CW
1×Q2434 Multi axis multi rotor motor propeller seat CCW
1×Q2434 Multi axis multi rotor motor propeller seat CCW

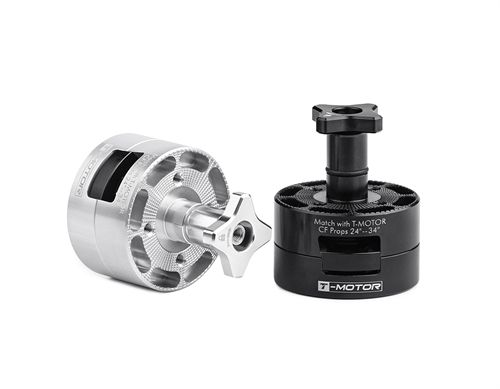

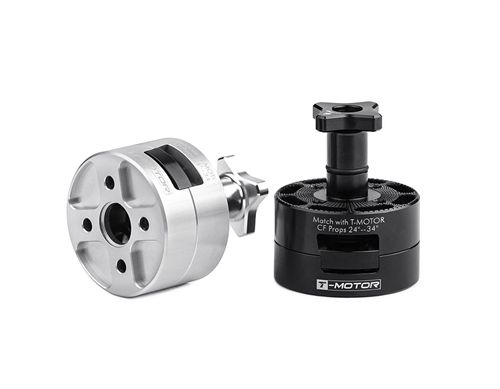

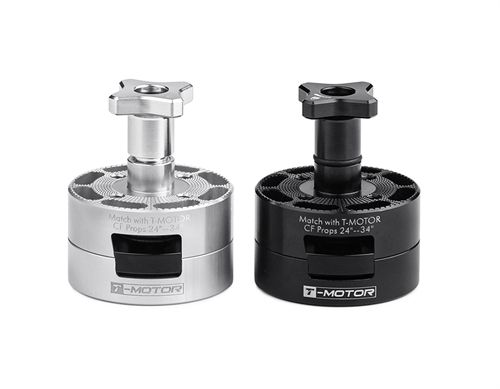

Detailed Images
