T-Motor Ultra-light U8 Lite KV100 Efficient Motor With ultralight CF Propellers For UAV Helicopter RC Drones
| Part No.: | U8Lite-85KV |
| Manufacturer: | T-MOTOR |
Send to a friend
Features
*Imported custom silver wires. Fast current flow on the surface of silver wires improves the motor response speed for easy control over the aircraft. The silver winding greatly reduces copper loss and helps lower the motor heat by 30%.
*Magnetic Circuit Optimization. The curved magnets in the new U8 have less magnet space. The optimized design helps save energy during flight.
*Max. Thrust: 7.3kg. Heavy Load. With the fall of motor temperature, the max thrust of the new U8 reaches 7.3 kg from 5kg, which doubles the aircraft payload.
*A maximum temperature drop of 34°C can be achieved. Data obtained when the motor runs at 32V+500W for 10 minutes.
*Magnetic Circuit Optimization. The curved magnets in the new U8 have less magnet space. The optimized design helps save energy during flight.
*Max. Thrust: 7.3kg. Heavy Load. With the fall of motor temperature, the max thrust of the new U8 reaches 7.3 kg from 5kg, which doubles the aircraft payload.
*A maximum temperature drop of 34°C can be achieved. Data obtained when the motor runs at 32V+500W for 10 minutes.
Product Details
Diameter: 87.1 mm.
Height: 27.05 mm.
Shaft Diameter: 15 mm.
Configuration: 36N42P.
Lead Spec: 90 mm.
Packing Size: 130 x 111 x 50.6 mm.
KV value: 85.
Rated voltage (lithium battery): 12S.
Motor weight (including cable): 243g.
Propeller recommendation: 28 - 29 inches.
Idle current (18V): 0.5A.
Internal resistance: 225±5mΩ.
Peak current (180s): 19.1A.
Maximum power (180s): 916.8W.
Aircraft Compatibility
Quadcopter (28CF): Load-bearing 10kg.
Hexacopter (28CF): Load-bearing 15kg.
Octocopter (28CF): Load-bearing 20kg.
Height: 27.05 mm.
Shaft Diameter: 15 mm.
Configuration: 36N42P.
Lead Spec: 90 mm.
Packing Size: 130 x 111 x 50.6 mm.
KV value: 85.
Rated voltage (lithium battery): 12S.
Motor weight (including cable): 243g.
Propeller recommendation: 28 - 29 inches.
Idle current (18V): 0.5A.
Internal resistance: 225±5mΩ.
Peak current (180s): 19.1A.
Maximum power (180s): 916.8W.
Aircraft Compatibility
Quadcopter (28CF): Load-bearing 10kg.
Hexacopter (28CF): Load-bearing 15kg.
Octocopter (28CF): Load-bearing 20kg.
Item Packing
1×T-Motor Ultra-light U8 Lite KV100 Efficient Motor

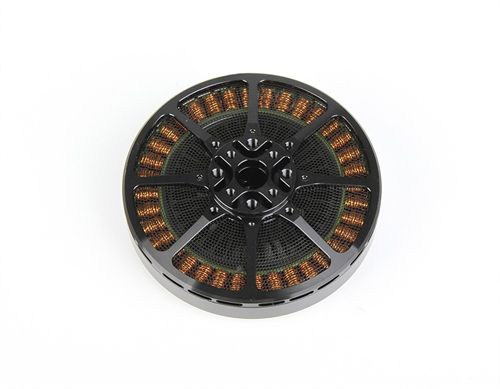

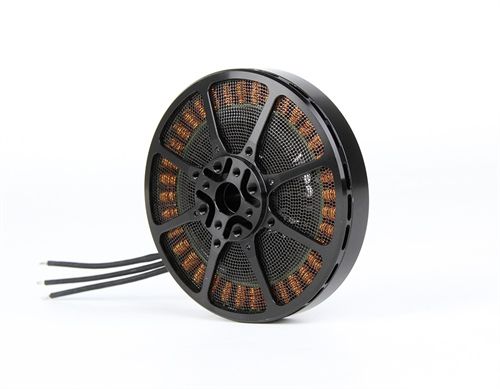

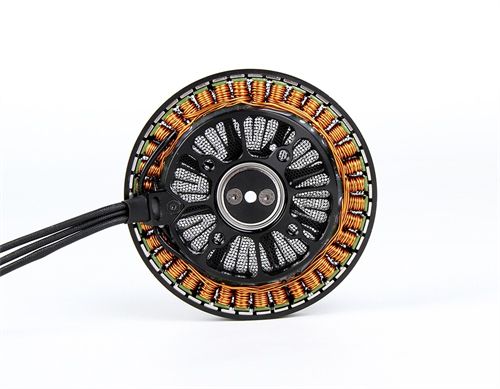

Detailed Images
