Waveshare Driver Board ESP32-WROOM-32 Module Based Multi-Functional for General Robots
| Part No.: | WS-MDB-23730 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Driver Board ESP32-WROOM-32 Module Based Multi-Functional for General Robots
Product Details
Model：General Driver for Robots
SKU：23730
Weight: 49g
Control module：ESP32-WROOM-32
Control chip：ESP32
Power supply DC：7~13V
Power interface：XH2.54
Antenna connector：IPEX1
Download interface：Type-C
Wireless communication：WIFI, Bluetooth,ESP-NOW
Dimensions：65×65mm
Mounting hole spacing：49×58mm
Mounting hole diameter：3mm
SKU：23730
Weight: 49g
Control module：ESP32-WROOM-32
Control chip：ESP32
Power supply DC：7~13V
Power interface：XH2.54
Antenna connector：IPEX1
Download interface：Type-C
Wireless communication：WIFI, Bluetooth,ESP-NOW
Dimensions：65×65mm
Mounting hole spacing：49×58mm
Mounting hole diameter：3mm

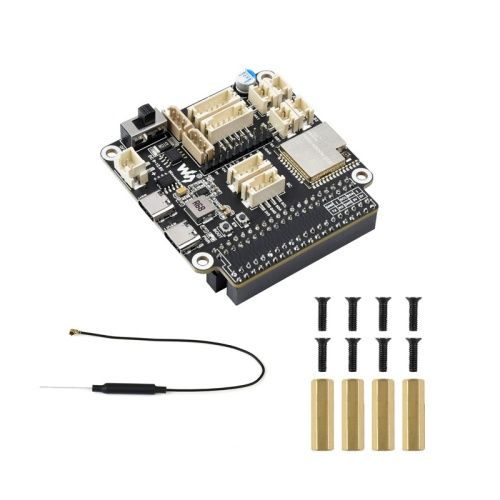

Item Packing
General Driver x1
Bluetooth antenna x1
Screws pack x1
Bluetooth antenna x1
Screws pack x1

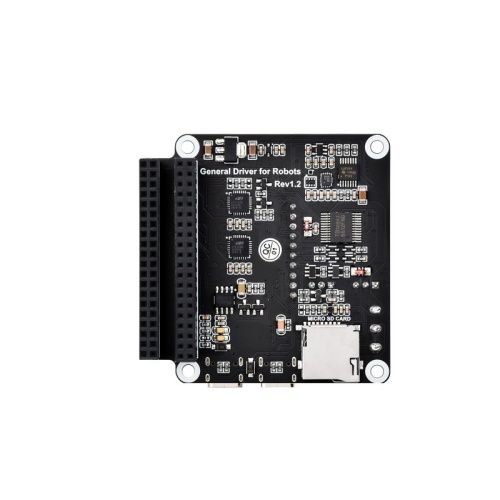

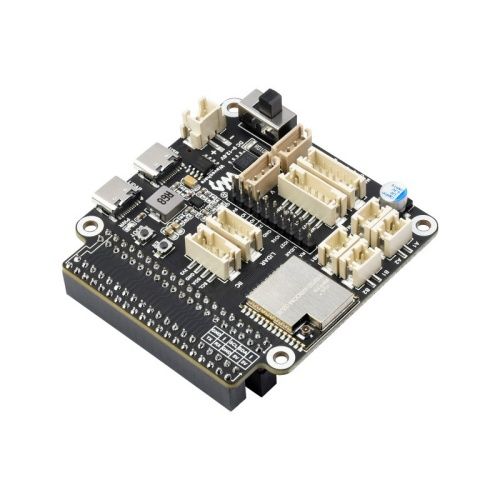

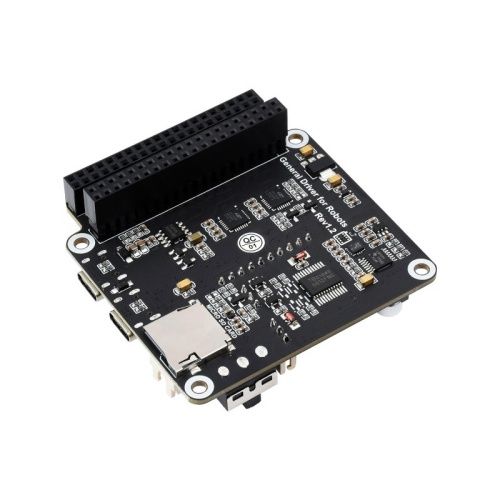

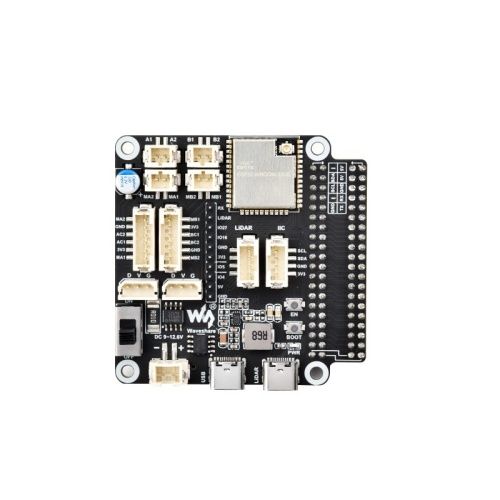

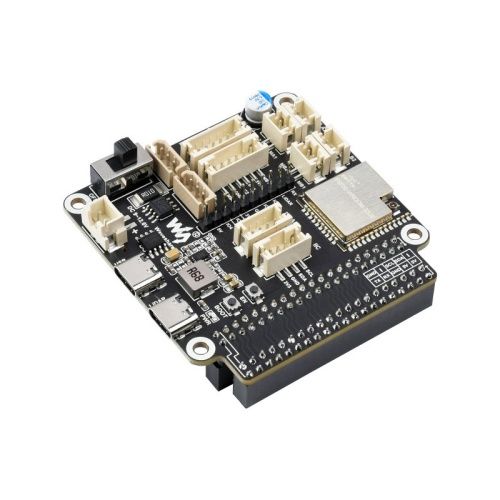

Detailed Images
