Waveshare Stepper Motor HAT Dual HR8825 Motor Controller Up To 1/32 Microstepping for Raspberry Pi

Part No.: | WS-MDB-22311 |
Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Stepper Motor HAT Dual HR8825 Motor Controller Up To 1/32 Microstepping for Raspberry Pi
Product Details
Model:Stepper Motor HAT (B)
SKU:22311
Weight:36g
Motor Controller:HR8825
Motor Drive Voltage:8.2V~28V
Motor Drive Current:2.5A
Logic Voltage:3.3V
Mounting Hole Size:3.0mm
Dimension:65×56mm
SKU:22311
Weight:36g
Motor Controller:HR8825
Motor Drive Voltage:8.2V~28V
Motor Drive Current:2.5A
Logic Voltage:3.3V
Mounting Hole Size:3.0mm
Dimension:65×56mm

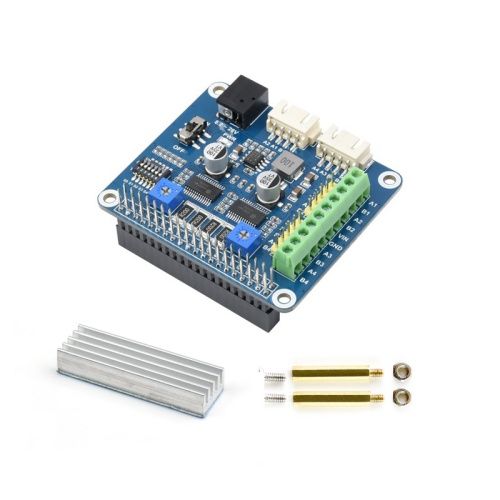

Item Packing
Stepper Motor HAT (B) x1
RPi screws pack (2pcs) x1
Aluminum heatsink x1
RPi screws pack (2pcs) x1
Aluminum heatsink x1

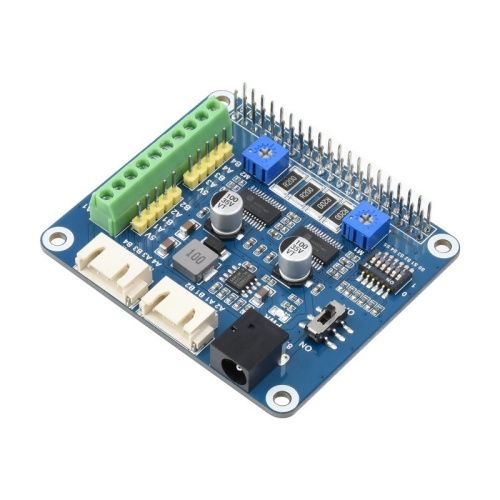

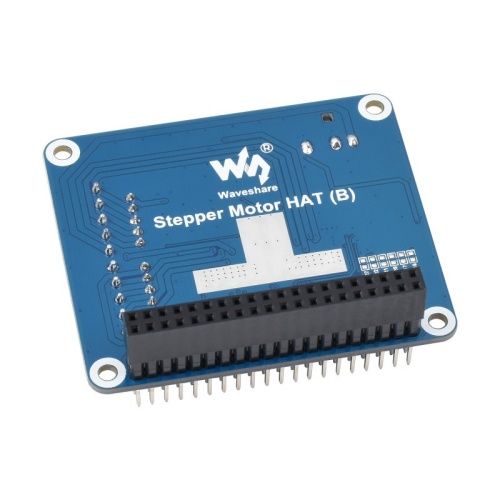

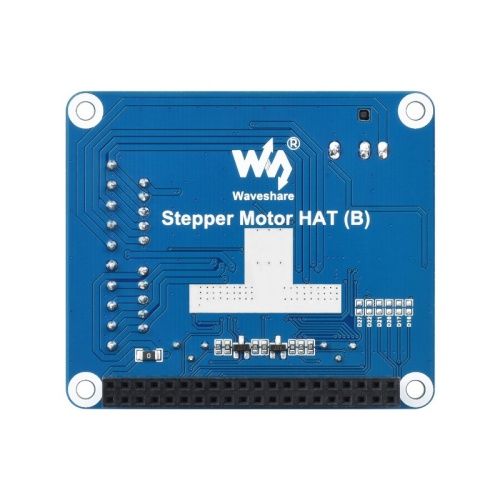

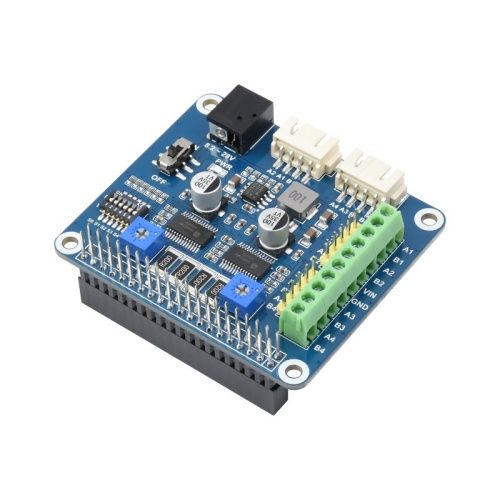

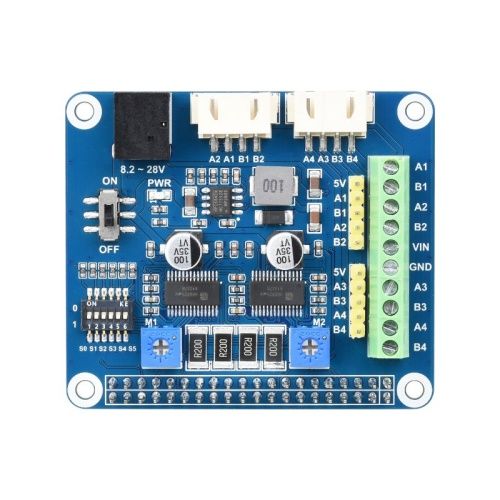

Detailed Images
