Waveshare Direct Drive Servo Motor Driver Board ESP32 Control ESP Now Support for DDSM Series Hub Motors
| Part No.: | WS-MDB-27806 |
| Manufacturer: | Feixiang |
Send to a friend
Features
Waveshare Direct Drive Servo Motor Driver Board ESP32 Control ESP Now Support for DDSM Series Hub Motors
Product Details
Model：DDSM Driver HAT (A)
SKU：27806
Weight：70g
Controller module：ESP32
Power supply port：XT60,DC5525
Power supply：DDSM115：12-24V DC,DDSM210：11~22V DC
Hub motor port：DDSM115, DDSM210
Communication interface：Type-C×2,UART
Wireless communication：2.4G WiFi
Mounting hole diameter：3 mm
Mounting hole spacing：58×49 mm
PCB size：85×57 mm
SKU：27806
Weight：70g
Controller module：ESP32
Power supply port：XT60,DC5525
Power supply：DDSM115：12-24V DC,DDSM210：11~22V DC
Hub motor port：DDSM115, DDSM210
Communication interface：Type-C×2,UART
Wireless communication：2.4G WiFi
Mounting hole diameter：3 mm
Mounting hole spacing：58×49 mm
PCB size：85×57 mm

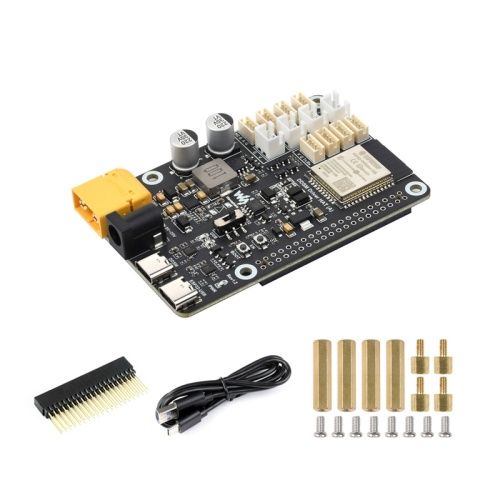

Item Packing
DDSM Driver HAT (A) x1
2×20 pin header x1
USB Type-A to Type-C cable x1
Screws pack x1
2×20 pin header x1
USB Type-A to Type-C cable x1
Screws pack x1

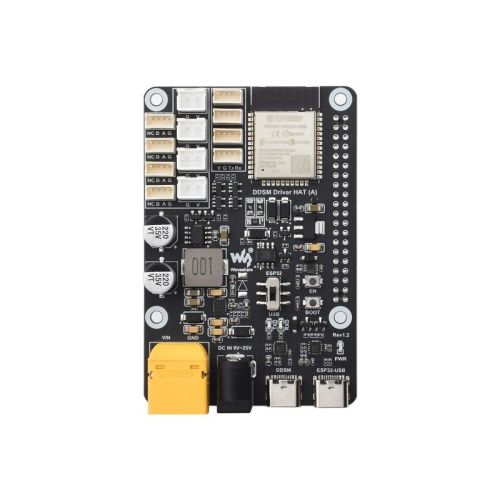

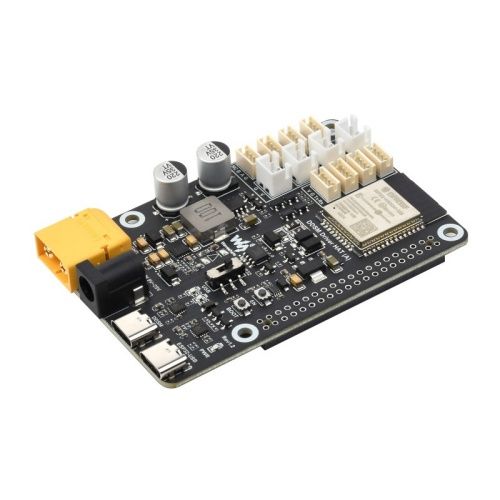

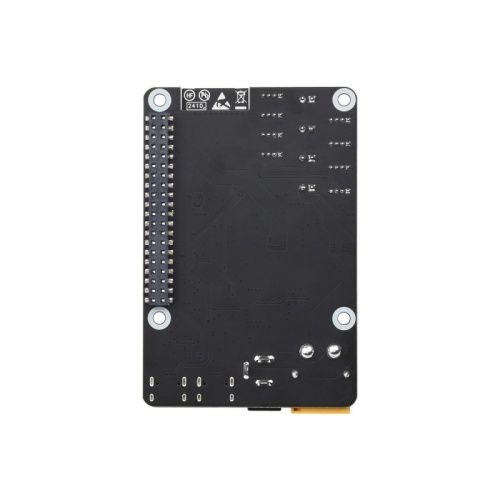

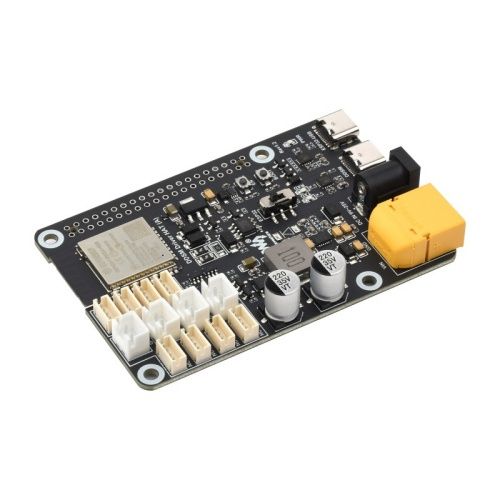

Detailed Images
