Corona R8DM-SB 2.4GHz DMSS Receiver 8 Channel for JR DMSS XG6 XG7 XG8 XG11 XG14 2.4GHz Transmitters

Corona R8DM-SB 2.4GHz DMSS Receiver 8 Channel for JR DMSS XG6 XG7 XG8 XG11 XG14 2.4GHz Transmitters
Part No.: COR-R8DM-SB
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Without using the S.BUS output extension energy channel, RBDM has 8 PWM channels, R6DM has 6 PWM channels, and R4DM has 4 PWM channels to choose from.
When using the S.BUS output to expand the servo channel, R8DM outputs the S.BUS signal on channel 8, R6DM outputs the S.BUS signal on channel 6, R4DM outputs the S.BUS signal on channel 4, and the remaining channels still output normal PWM signals.
The delay is 13mS when connected to JR-XG7 remote control, and 14mS when connected to other models of remote control

Product Details

Model:R8DM-SB
Operating Current:60mA max and 35mA under linked
Operating Voltage:3.6~8.5V
Latency:13mS or 14mS
Sensitivity:about -100dBm
Weight:11g
Compatibility:XG6,XG7,XG8 ,XG11 and XG14 under DMSS protocol mode

Item Packing

R8DM-SB receiver x1

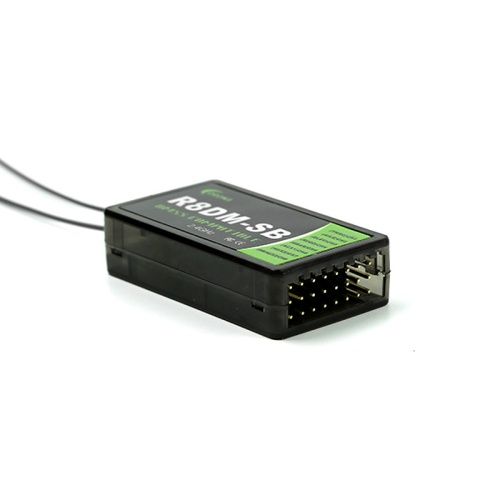

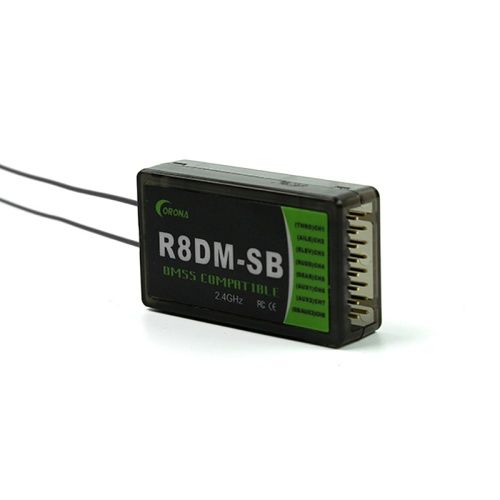

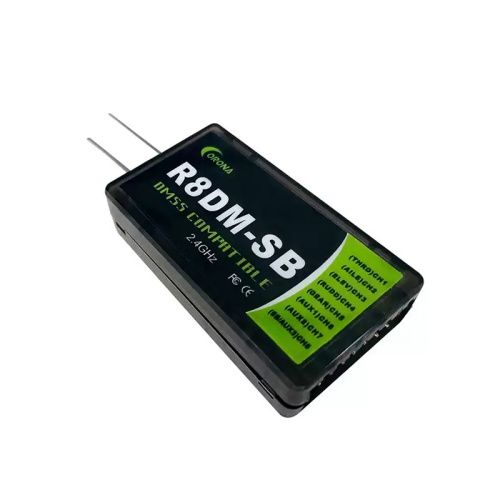

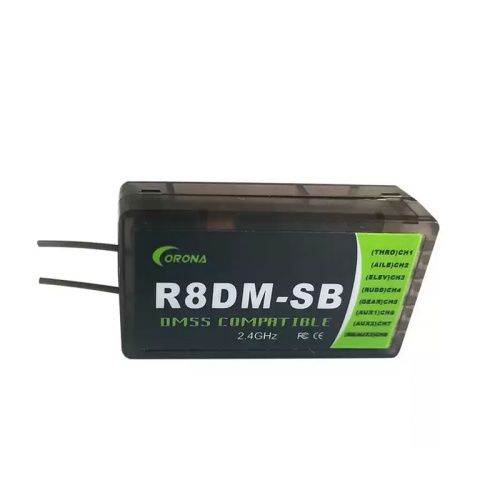

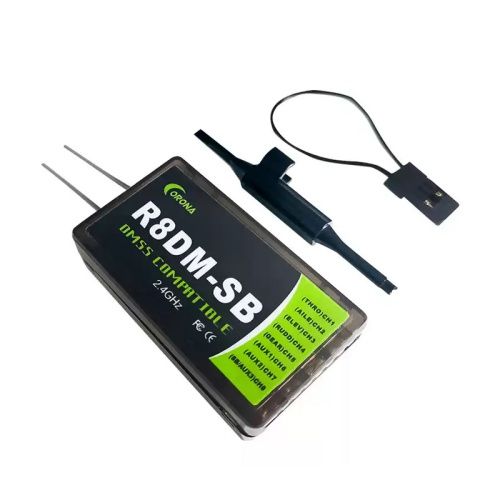

Detailed Images
