DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 6S 2300KV Brushless Motor for RC Airplane
| Part No.: | 70EDF-2300KV |
| Manufacturer: | Feixiang |
Send to a friend
Features
DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 6S 2300KV Brushless Motor for RC Airplane
Product Details
tem Name: EDF unit with brushless motor set
EDF Unit: 70mm 12 blades
Brushless Motor: 2300KV
Ducted Fan Weight: 108g
Total Weight: 178g
Motor Specifications
KV: 3300
No.of Cells(Lipo): 6S
Max. Voltage: 25.2V
Maximum Thrust ：2240g
Max Continuons Current(A)/60s: 65A
Full Load Power: 1638W
Shaft Diameter: Φm
Banana Plug: Φ3.5mm
Weight: 108g
Recommended ESC: 70A(not included)
Recommended Battery: 6S 3500MAH 35C (not included)
Colour:black
Material:Plastic + metal
Item Packing
70mm 12 Blades Ducted Fan EDF Unit x 1

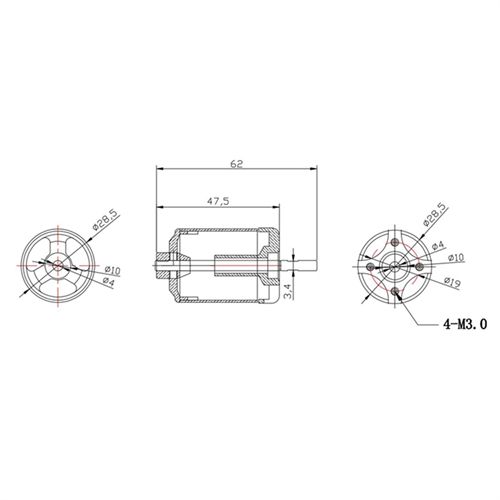

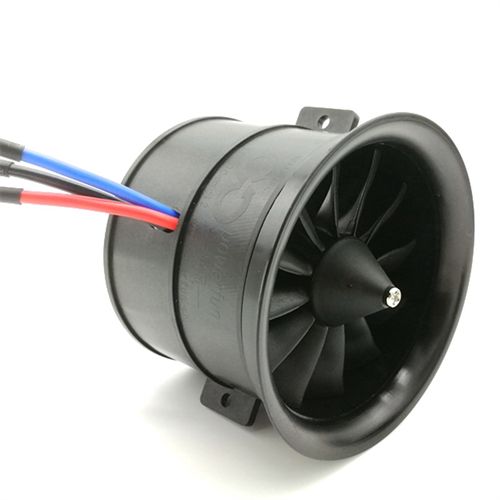

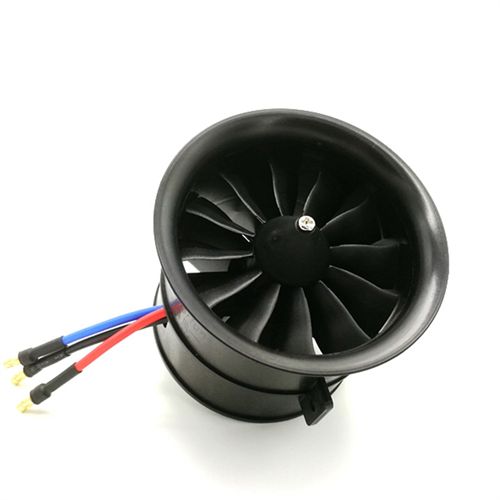

Detailed Images
