DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 4S 3400KV Brushless Motor for RC Airplane
| Part No.: | 70EDF-3400KV |
| Manufacturer: | Feixiang |
Send to a friend
Features
DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 4S 3400KV Brushless Motor for RC Airplane
Product Details
Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 12 blades
Brushless Motor: 3400KV
Ducted Fan Weight: 108g
Total Weight: 178g

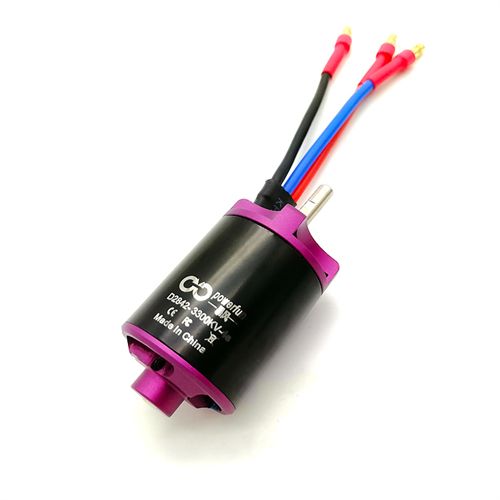

Motor Specifications
KV: 3300
No.of Cells(Lipo): 4S
Max. Voltage: 16.8V
Maximum Thrust ：1640g
Max Continuons Current(A)/60s: 62A
Full Load Power: 1042W
Shaft Diameter: Φm
Banana Plug: Φ3.5mm
Weight: 108g
Recommended ESC: 70A(not included)
Recommended Battery: 4S 3500MAH 35C (not included)
Colour:black
Material:Plastic + metal
Item Packing
70mm 12 Blades Ducted Fan EDF Unit x 1
Detailed Images
