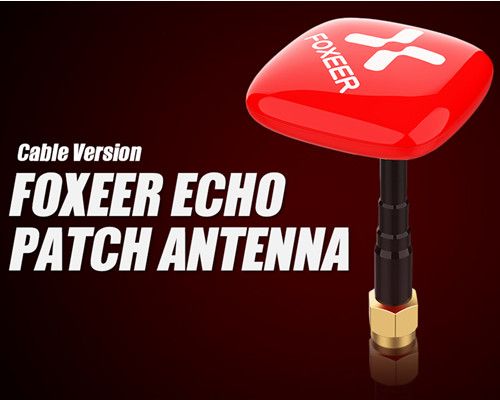

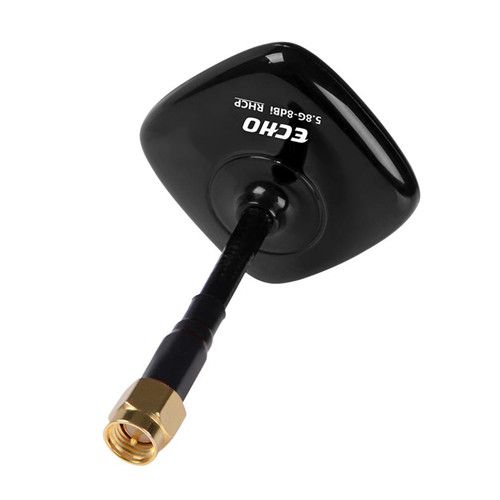

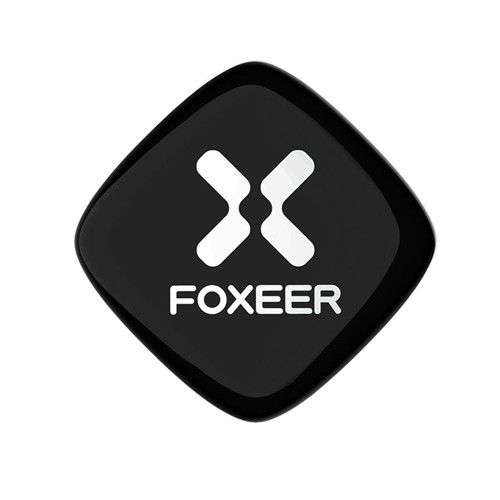

160mm Foxeer 5.8GHz 8DBi Echo Patch RHCP FPV Antenna Feeder FPV Goggles Black Cable Version PA1508

160mm Foxeer 5.8GHz 8DBi Echo Patch RHCP FPV Antenna Feeder FPV Goggles Black Cable Version PA1508
Part No.: QA662
Manufacturer: Foxeer
Quantity:out of stock

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

160mm Foxeer 5.8GHz 8DBi Echo Patch RHCP FPV Antenna Feeder FPV Goggles Black Cable Version

Product Details

Shell material: Imported PC+ABS
Weight: 10.4g
Antenna length: 160mm
Center frequency: 5.8 GHz
Gain : 8dBi
Radiation direction angle: 84.7 degree
Bandwidth: 500 MHz (5.5 – 6.0GHz)
Matching: VSWR < 1.25 (at center frequency)
Impedance: 50Ω
Axial ratio: < 3
Center frequency: 5600~5950MHz
Radiation efficiency: 98%
Polarization: RHCP
Connector:SMA

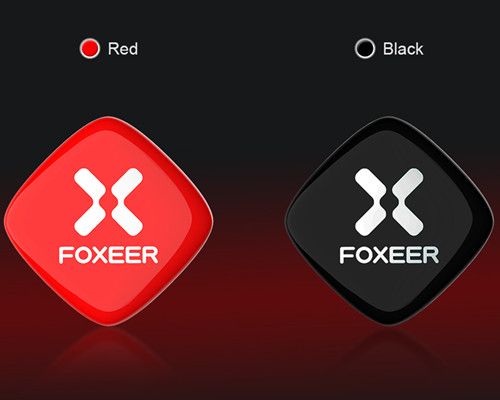

Color: black

Item Packing

160mm Foxeer 5.8GHz 8DBi Echo Patch RHCP FPV Antenna Feeder FPV Goggles Black Cable Version X 1

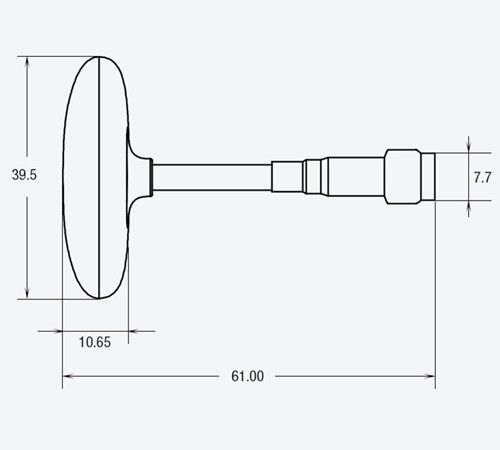

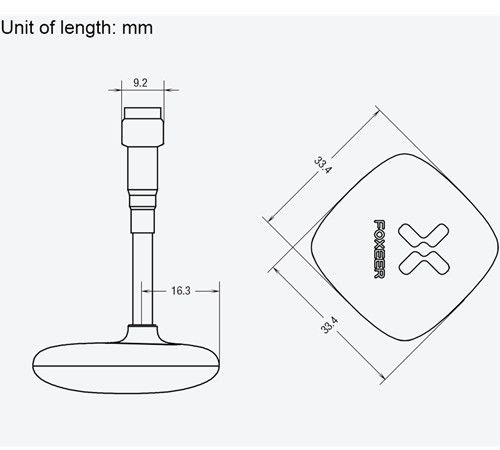

Detailed Images
