HolyBro H-RTK Unicore UM982 Dual Antenna High-Precision GNSS Positioning System for OpenSource Pixhawk Flight Controller Drone
| Part No.: | HL-12036 |
| Manufacturer: | Holybro |
Send to a friend
Features
The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.
One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.
This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS,Beidou, Galileo, and QZSS global positioning systems.
It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.
Features
•Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module
•Can replace the traditional compass/magnetometer
•Perfect for system/environment with high magnetic interference
•Excellent RTK performance
Tips: It is recommended to use the H-RTK F9P-Base orF9P Helical as your base station because it's simple setup procedure in Mission Planner & QGroundControl. Neither MP nor QGC can configure the UM982 automatically as base station at this moment, additional manual setup is required.
Product Details
Application
•Rover
•Moving Baseline Rover
•Base Station (Recommend using H-RTK F9P-Base as base station)
Compass：IST8310
GNSS：BDS B1I/B2I/B3I，GPS L1C/A/L2P (Y)/L2C/L5，GLONASS L1/L2，Galileo E1/E5a/E5b，QZSS L1/L2/L5
Antennas Peak Gain (MAX)：2dBi
LNA Gain(typical)：33±2dB
Time-TO-First Fix：Cold start: ≤ 30s，Hot start: ≤ 5s
RTK-SurveyIn-Time：≤5 minute @2.0mCEP
Data and Update Rate：20 Hz Positioning & Heading，20 Hz Raw Data observation

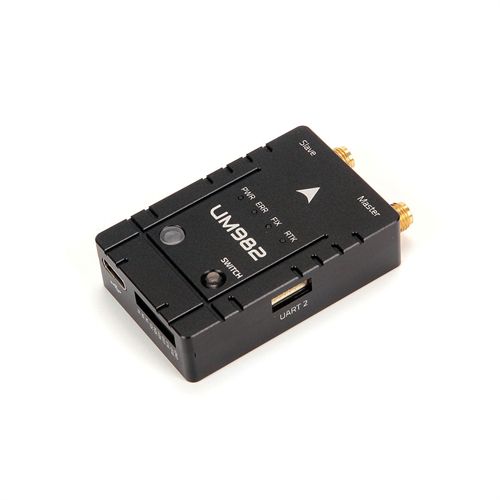

Port：Port 1: GH1.25 10-pin，Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
Cable Length：GH 10P: 150mm，GH 10P: 400mm，GH 10P to 6P: 300mm

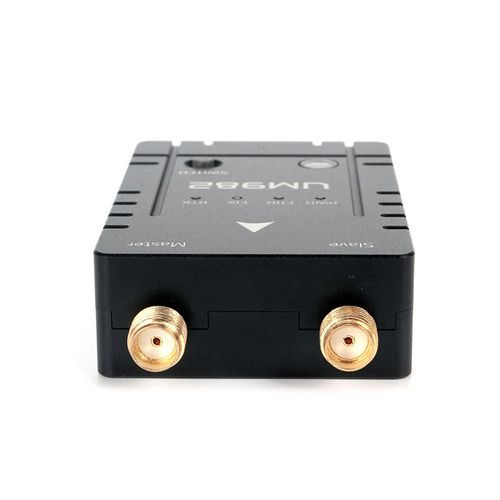

Antenna Connection Type：Board: SMA female，Antenna: SMA male
Baud rate (Adjustable)：230400 5Hz default
Working voltage：4.75V~5.25V
Current Consumption：~350mA
Dimensions：Board: 34.8*58.9*14.4mm，Antenna Diameter: 27.5mm，Antenna height: 59mm

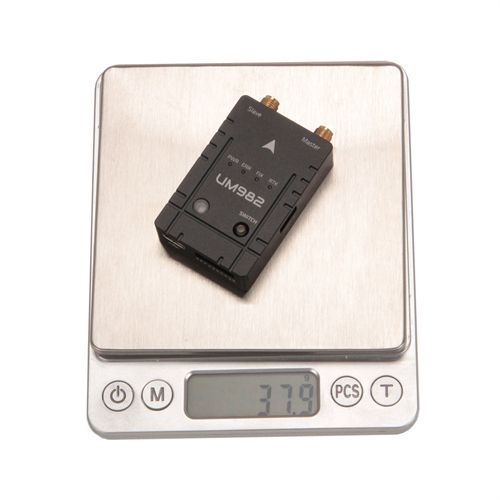

Weight：37.9g (without antennas)

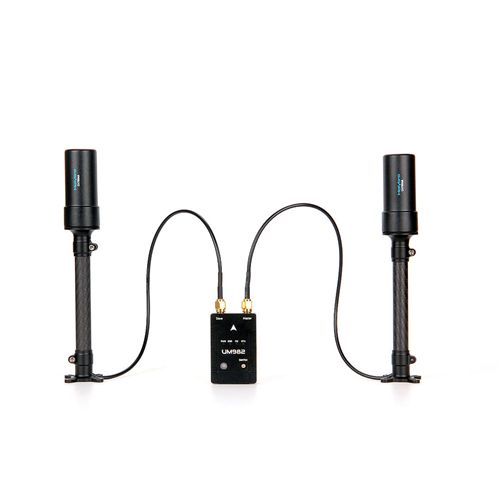

Item Packing
•2x High Precision Helical Antennas
•2x Antenna Mounts
•2x SMA Cables
•2x 10pin - 10pin JST-GH Cables
•1x 10pin - 6pin JST-GH Cable
•1x 6pin - 6pin JST-GH Cable

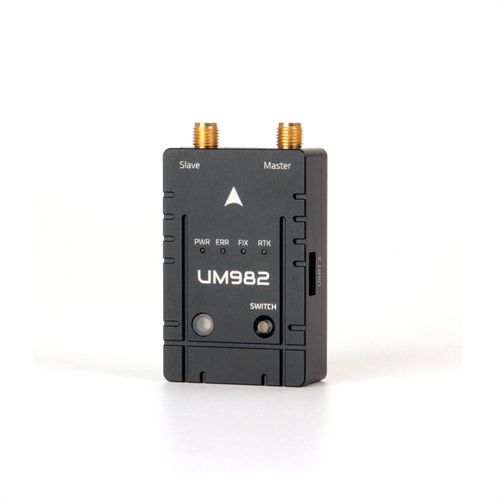

Detailed Images
