MATEKSYS Matek OPTICAL FLOW & LIDAR SENSOR 3901-L0X for RC FPV Racing Drone
| Part No.: | 3901-LOX |
| Manufacturer: | Matek |
Send to a friend
Features
MATEKSYS Matek OPTICAL FLOW & LIDAR SENSOR 3901-L0X for RC FPV Racing Drone
Product Details
Optical Flow: PMW3901
Lidar: VL53L0X
Interface UART
Protocol: INAV MSP
Working Range: 8cm~200cm
Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)
Minimum Illumination >60Lux
Input voltage: 4.5~5.5V
Power Consumption: 40mA

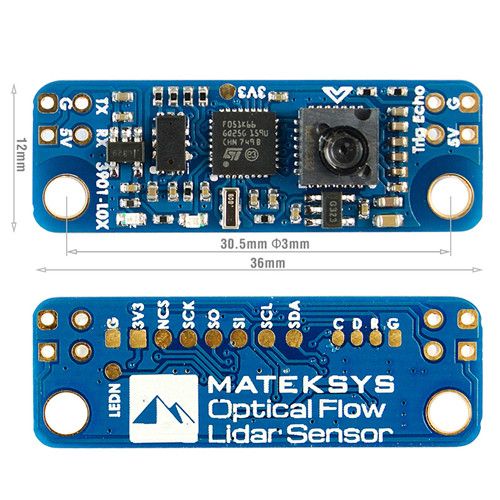

Size: 36*12mm, 2g
Tips
Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.
Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.
Any unused UART of FC supports it
Sonar connection (Trig & Echo) has not been implemented
Item Packing
Module 3901-L0X x 1pc

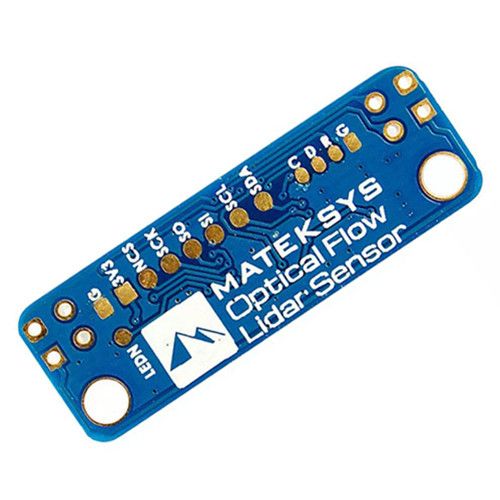

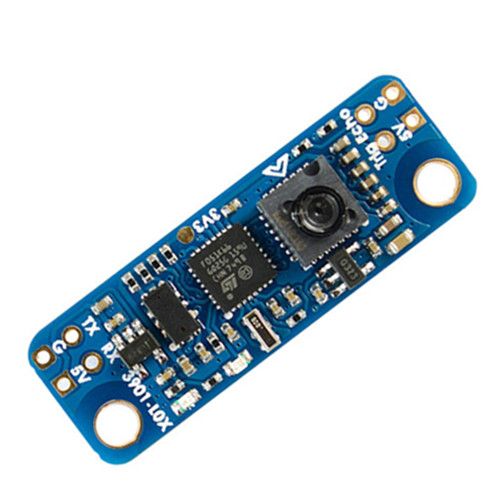

Detailed Images
