Crius APM Power Module 28V/90A BEC Power Module w/12AWG Silicone Line XT60 Plug for Pixhawk
| Part No.: | APM-PM-28V |
| Manufacturer: | Feixiang |
Send to a friend
Features
- PM is a DC-DC power supply module designed for APM 2.5/2.5.2/2.6 and Pixhawk. It also has voltage and current detection function. The onboard imported molex1.25-6P connector ensures stable and reliable power supply. The included 6P cable can directly correspond to the "PM" socket of APM or Pixhawk. The PM supports up to 28V input, 5.3V+-0.1V output, and lasts up to 3A. It uses mature and reliable switching regulator IC and large-size power inductor. High conversion efficiency
Product Details
- Input voltage: 6~28V
- Output voltage: 5.3V +- 0.1V
- Maximum output current: 3A
- Maximum measuring current: 90A
- Maximum measurement voltage: 28V (limited by BEC input voltage)
- 6P dedicated cable can be directly connected to APM/Pixhawk flight control
- Additional 4P pinholes, which can be connected to other flight controls by self-welding/pin headers
- Weight: 26g
- Output voltage: 5.3V +- 0.1V
- Maximum output current: 3A
- Maximum measuring current: 90A
- Maximum measurement voltage: 28V (limited by BEC input voltage)
- 6P dedicated cable can be directly connected to APM/Pixhawk flight control
- Additional 4P pinholes, which can be connected to other flight controls by self-welding/pin headers
- Weight: 26g
Item Packing
Crius APM Power Module 28V/90A BEC Power Module x 1

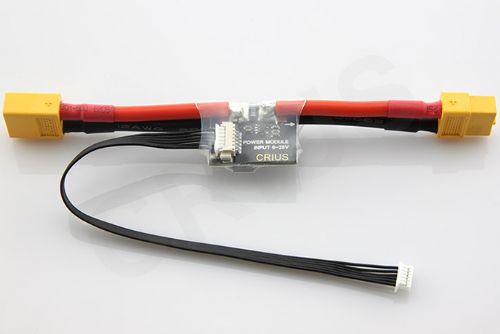

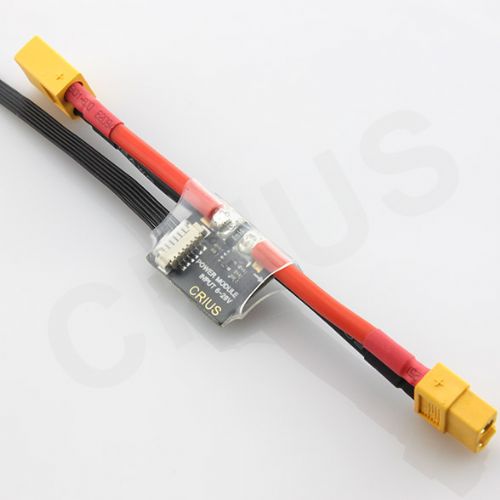

Detailed Images
