CUAV CAN PMU/UAVCAN Bus Digital Precisely Detect Voltage Current APM/PX4 Open Source
| Part No.: | CAN-PMU |
| Manufacturer: | CUAV |
Send to a friend
Features
CAN PMU is a drone power management unit with a built-in STM32F4 processor and running the CUAV ITT algorithm. It can accurately measure the drone voltage and current in real time. It supports a maximum of 6-62V voltage and 110A current and can output 5.4V 5A. (Maximum instantaneous 8A / 120s, constant 5A) Powers the flight controller, uses CAN bus communication, supports standard UAV CAN protocol, and each PMU unit is factory calibrated to ensure good consistency and high accuracy.
Product Details
Basic parameters
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Voltage input: 6-62V(2-15S)
- Max current: 110A
- Voltage accuracy: ±0.05V
- Current accuracy: ±0.1A
- Resolution: 0.01A/V
- Max output power: 6000W/90S
- Max stable power: 5000W
- Power port output: 5.4V/5A
- Protocol: UAVCAN
- Operating temp: -20℃ ~ +100℃
- Firmware upgrade: Support
- Calibration: No need
Interface Type
- IN/OUT: XT90(Cable end)/Amass 8.0(Module end)
- Power: 5025850670
- CAN: GHR-04V-S
Appearance
- Size: 46.5mm×38.5mm×22.5mm
- Weight: 76g
- Processor: STM32F412 100Mhz 512K Flash 256K RAM
- Voltage input: 6-62V(2-15S)
- Max current: 110A
- Voltage accuracy: ±0.05V
- Current accuracy: ±0.1A
- Resolution: 0.01A/V
- Max output power: 6000W/90S
- Max stable power: 5000W
- Power port output: 5.4V/5A
- Protocol: UAVCAN
- Operating temp: -20℃ ~ +100℃
- Firmware upgrade: Support
- Calibration: No need
Interface Type
- IN/OUT: XT90(Cable end)/Amass 8.0(Module end)
- Power: 5025850670
- CAN: GHR-04V-S
Appearance
- Size: 46.5mm×38.5mm×22.5mm
- Weight: 76g

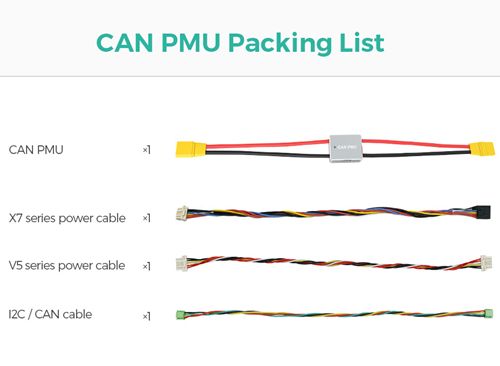

Item Packing
CAN PMU x1
X7 series power cable x1
V5 series power cable x1
I2C / CAN cable x1
X7 series power cable x1
V5 series power cable x1
I2C / CAN cable x1

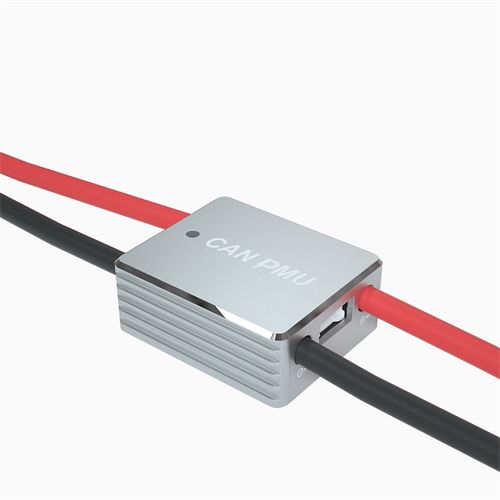

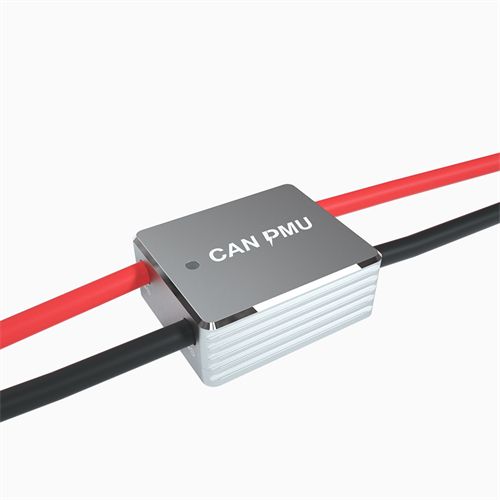

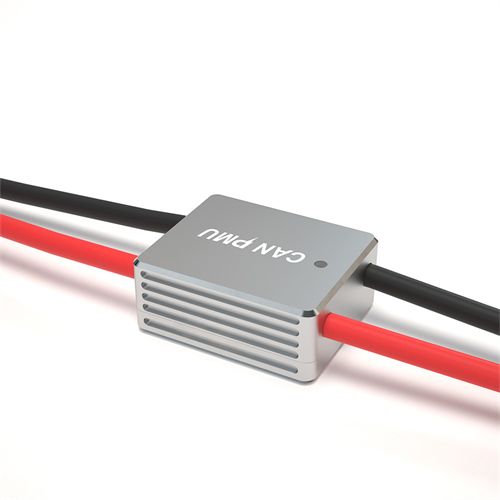

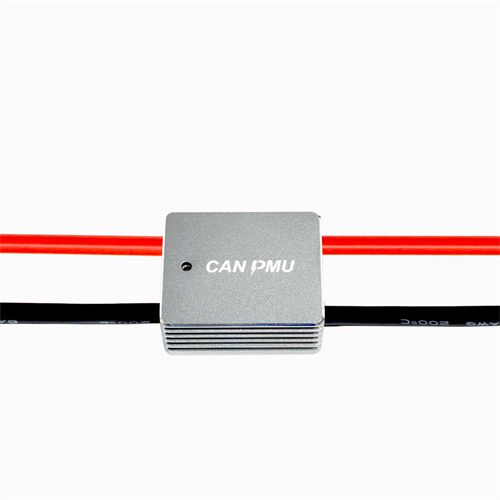

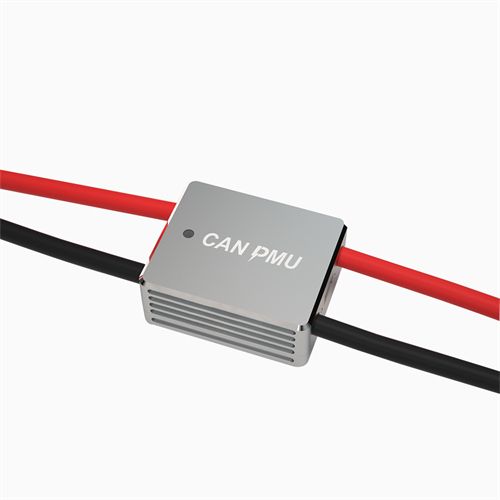

Detailed Images
