Makeflyeasy PMU Power Management Module Support 60V Input BEC-5V-5A Output
| Part No.: | MFE-PMU |
| Manufacturer: | Feixiang |
Send to a friend
Features
PMU is a high-performance power management module, including current and voltage detection functions, supporting a maximum of 60V input and output to supply power to ESC, UBEC, payload and other electronic devices, and output 5.3V 5A to supply power to the flight control
Product Details
Model：PMU
Working Voltage：12V-60V(3S-12S)
Working Amps：0-80 A
V/A Accuracy：±0.1 V/±0.2 A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Regulated Output：5.3V/5A
Operating Temp.：-20°C~+100°C
Interface：IN/OUT:AWG12,Power:SM06B-GHS-TB
Size：Module:50×32×10mm,Line:220mm
Weight：65g
Working Voltage：12V-60V(3S-12S)
Working Amps：0-80 A
V/A Accuracy：±0.1 V/±0.2 A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Regulated Output：5.3V/5A
Operating Temp.：-20°C~+100°C
Interface：IN/OUT:AWG12,Power:SM06B-GHS-TB
Size：Module:50×32×10mm,Line:220mm
Weight：65g
Item Packing
Makeflyeasy PMU x1

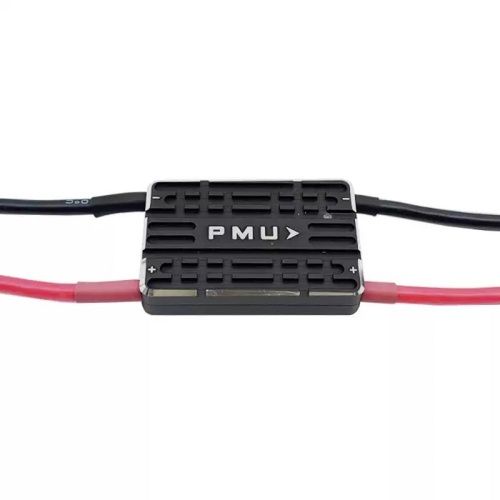

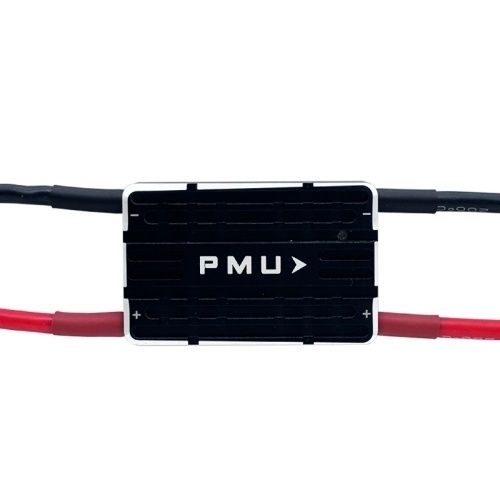

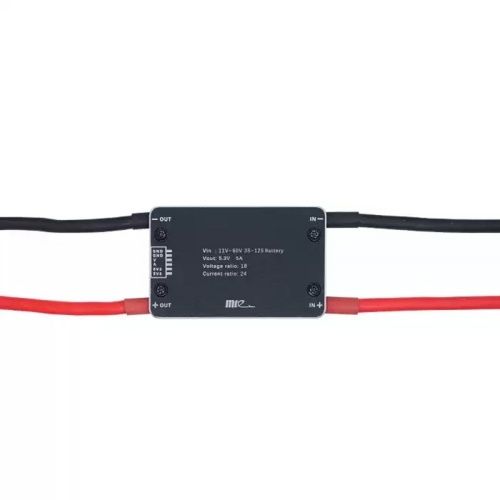

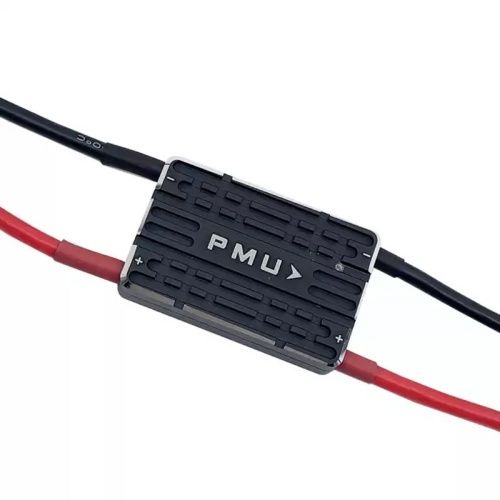

Detailed Images
