Accessories > Product details
Benewake IP67 100m Distance Lidar TF03-100 Vehicle Anti-collision UAV Fixed Height Industrial Security Lidar UART
| Part No.: | TF03-100 |
| Manufacturer: | Feixiang |
Send to a friend
Features
TF03-100 is a industrial high-speed LiDAR with a range of up to 100m. TF03-100 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions①. Different built-in operating modes let customers change parameters and configuration to meet their need.
Product Details
Product performance
- Operating range：0.1m-100m@90% reflectivity；0.1m-40m@10% reflectivity；0.1m-80m@90% reflectivity&100Klux；0.1m-30m@10% reflectivity&100Klux
- Accuracy：±10cm (within 10m), 1% (10m and further)
- Distance resolution：1cm
- Frame rate：1Hz~1000Hz adjustable (default 100Hz)
- Ambient light immunity：100Klux
- Operation temperature：-25~60℃
- Enclose rating：IP67
Optical parameters
- Light source：LD
- Central wavelength：905nm
- Photobiological safety：CLASS1(EN60825)
- FOV：0.5°
Electrical parameters
- Supply voltage：5V
- Average current：≤180mA
- Power consumption：≤0.9W
- Communication level：LVTTL(3.3V)
- Communication interface：UART/CAN/IO
- Operating range：0.1m-100m@90% reflectivity；0.1m-40m@10% reflectivity；0.1m-80m@90% reflectivity&100Klux；0.1m-30m@10% reflectivity&100Klux
- Accuracy：±10cm (within 10m), 1% (10m and further)
- Distance resolution：1cm
- Frame rate：1Hz~1000Hz adjustable (default 100Hz)
- Ambient light immunity：100Klux
- Operation temperature：-25~60℃
- Enclose rating：IP67
Optical parameters
- Light source：LD
- Central wavelength：905nm
- Photobiological safety：CLASS1(EN60825)
- FOV：0.5°
Electrical parameters
- Supply voltage：5V
- Average current：≤180mA
- Power consumption：≤0.9W
- Communication level：LVTTL(3.3V)
- Communication interface：UART/CAN/IO
Item Packing
Benewake IP67 100m Distance Lidar x 1

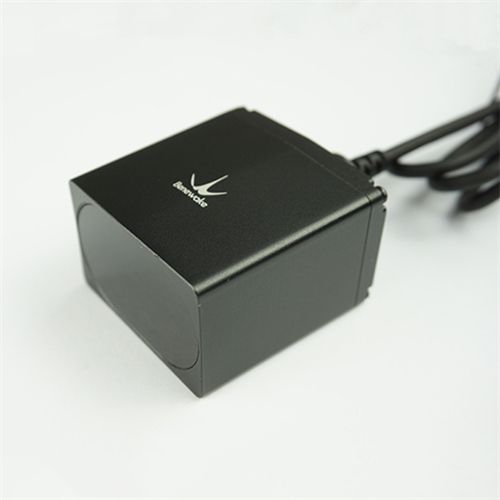

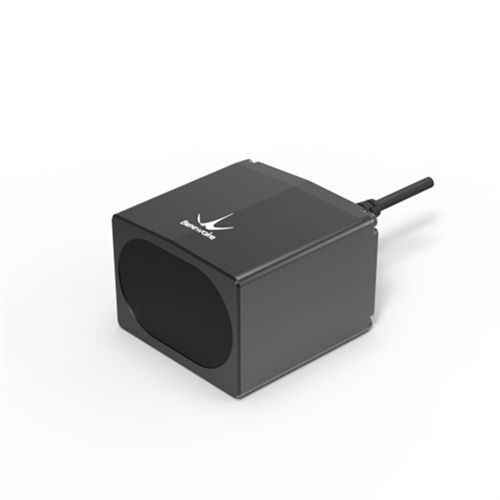

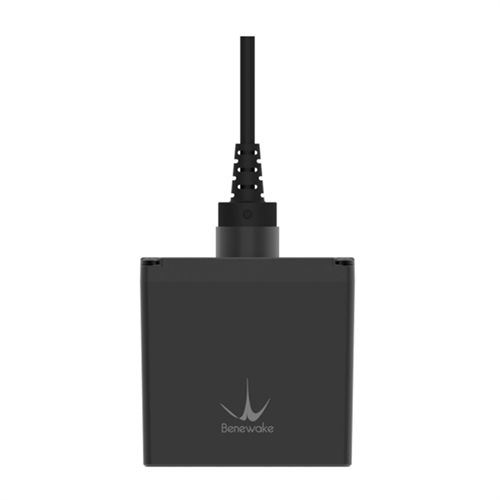

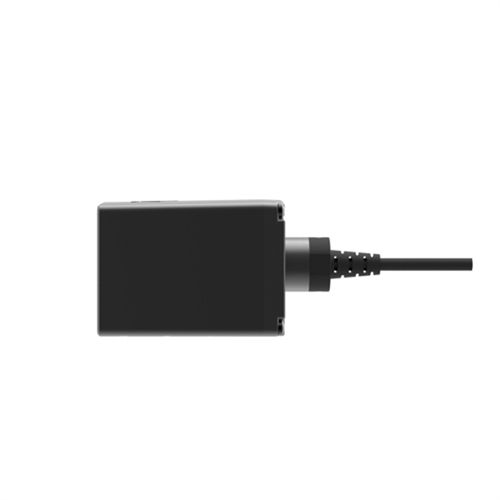

Detailed Images
