Lightware SF40/C 100 Meter Laser Range Radar For UAV Pixhawk
| Part No.: | LI-SF40C |
| Manufacturer: | Feixiang |
Send to a friend
Features
SF40/C is a long range (100 meter), laser scanner designed specifically to provide UAVs with SLAM intelligence.
Typical applications:
- Assist with takeoff, landing and hovering.
- Collision avoidance and low level manoeuvre.
- Critical UAS component.
Product Details
Range：0.2 ... 100 meters (natural targets)
Revolutions per second：5.5
Resolution：3 cm
Readings per revolution：3638
Readings per second：20010
Motor power supply voltage：12.0 V DC (+-10%)
Motor power supply current ：0.5 A (max)
Laser power supply voltage ：5.0 V DC (+-10%)
Outputs & interfaces ：Serial UART 3.3 V TTL

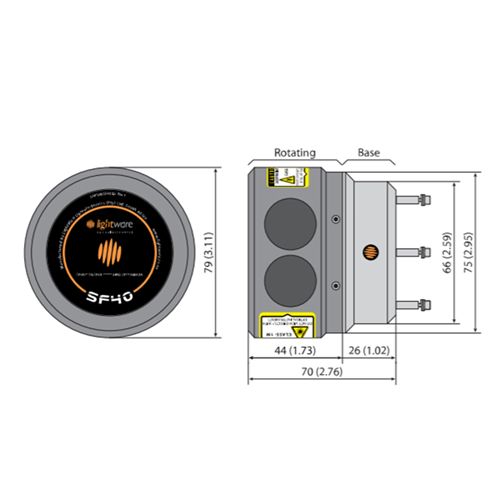

Dimensions ：70 mm (height) x 79 mm (largest diameter)
Weight：256 g
Laser power ：20 W (peak), 11 mW (average), Class 1M
Optical aperture ：51 mm
Beam divergence ：0.2°
Operating temperature ：0 ... 40°C
Approvals FDA：1410968-002 (2018/09)
Revolutions per second：5.5
Resolution：3 cm
Readings per revolution：3638
Readings per second：20010
Motor power supply voltage：12.0 V DC (+-10%)
Motor power supply current ：0.5 A (max)
Laser power supply voltage ：5.0 V DC (+-10%)
Outputs & interfaces ：Serial UART 3.3 V TTL
Dimensions ：70 mm (height) x 79 mm (largest diameter)
Weight：256 g
Laser power ：20 W (peak), 11 mW (average), Class 1M
Optical aperture ：51 mm
Beam divergence ：0.2°
Operating temperature ：0 ... 40°C
Approvals FDA：1410968-002 (2018/09)
Item Packing
SF40/C 100 Meter Laser Range Radar x 1
