Frsky Gimbal-M7 M7 High Sensitivity Hall Sensor Gimbal for Taranis Q X7
| Part No.: | Gimbal-M7 |
| Manufacturer: | Frsky |
Send to a friend
Features
Hall sensor
- 4 ball-bearings
- Adjustable tension
- Can be enable or disable self centering on both axis and ratcheting on the Y axis
- Special material quality that wears well
- 4 ball-bearings
- Adjustable tension
- Can be enable or disable self centering on both axis and ratcheting on the Y axis
- Special material quality that wears well
Product Details
Brand Name: Frsky
Item Name: Gimbal-M7 M7 Hall Sensor Gimabl for Taranis Q X7
Model: Gimbal-M7
Supply Voltage (VCC): DC 3.0 ~ ±0.5V
Sensitivity: 2.50 mV/G
Linear Output Voltage Range: 0.1 ~ ( VCC +0.1) V
Output Load Resistance (output to ground) >15KQ
Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
Noise (no load): ≤40mVpp
Quiescent Output Power Supply Rjection: -69dB
Usage: for Frsky Taranis Q X7 Radio Transmitter
Machanical Specification:
X-Axis Adjustable Angle Range: 60°±5°
Y-Axis Adjustable Angle Range: 60°±5°
Adjustable Height Range: 24.5mm-30.5mm
Installation Dimension: 42.9mmx54mm
Item Packing
1x Frsky M7 Hall Sensor Gimbal

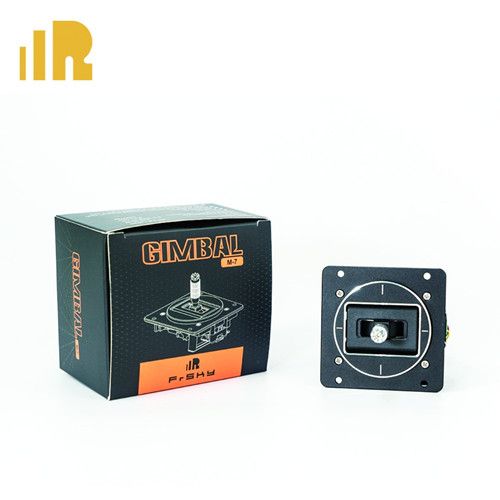

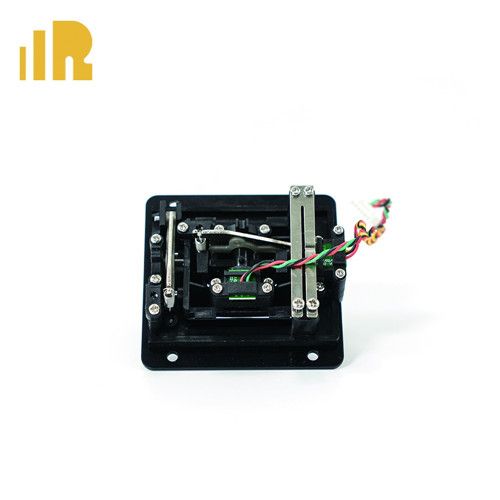

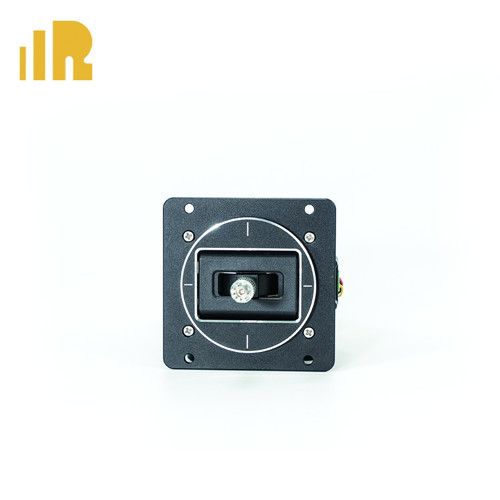

Detailed Images
