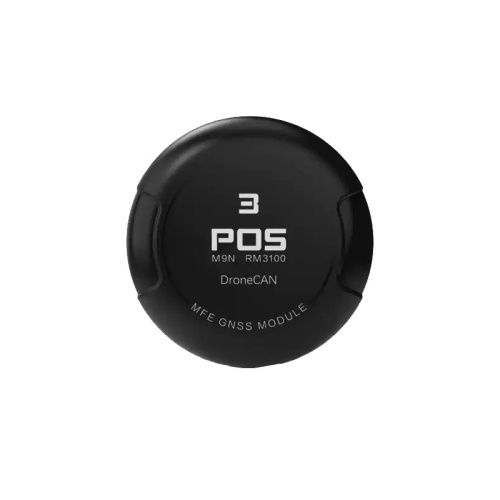

Makeflyeasy POS3 DroneCAN Navigation Module GPS M9N & RM3100 for Fixed Wing UAVs
| Part No.: | MFE-POS3-CAN |
| Manufacturer: | Feixiang |
Send to a friend
Features
POS 3 is built-in with Ublox NEO-M9N module and RM3100 magnetic compass, featuring high positioning accuracy and anti-interference
Product Details
Model：POS3 CAN
Processor：STM32F427
GPS：U-blox M9N
Magnetic compass：RM3100
Positioning accuracy：1.5m(SBAS)
Update Frequency：25hz(Max)
Cold Start：24S
Hot Start：2S
Tracking Sensitivity：-167dBm
Magnetic compass accuracy：±0.1°
Magnetic compass resolution：13nT/LSB
Operating Voltage：5V
Operating temperature：(-10°C~70°C)
Size：Modules: 60×60×17mm，Wires: 300mm
Weight：51g
Processor：STM32F427
GPS：U-blox M9N
Magnetic compass：RM3100
Positioning accuracy：1.5m(SBAS)
Update Frequency：25hz(Max)
Cold Start：24S
Hot Start：2S
Tracking Sensitivity：-167dBm
Magnetic compass accuracy：±0.1°
Magnetic compass resolution：13nT/LSB
Operating Voltage：5V
Operating temperature：(-10°C~70°C)
Size：Modules: 60×60×17mm，Wires: 300mm
Weight：51g
Item Packing
Makeflyeasy POS3 CAN x1

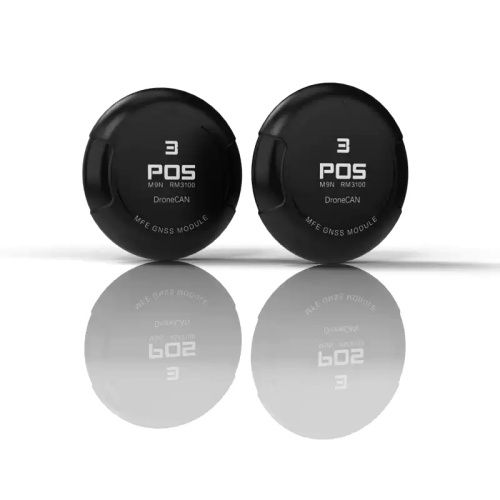

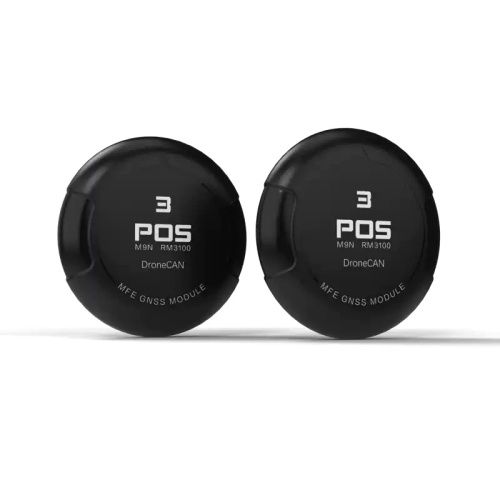

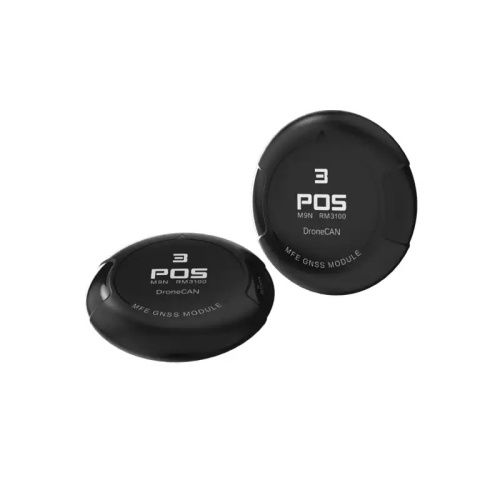

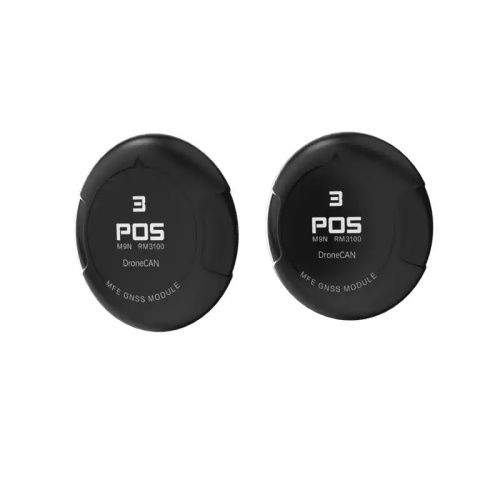

Detailed Images
