iFlight BLITZ Mini M10 GPS V2 for FPV parts
| Part No.: | IF-Mini-M10-V2 |
| Manufacturer: | IFlight |
Send to a friend
Features
*UBLOX M10 chip, low power consumption, strong signal
*Compass module QMC5883L integrated
*Built-in farad capacitor for faster hot start
*High-precision positioning
*Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
*10 Hz Refresh rate
*Built-in Flash
*Compass module QMC5883L integrated
*Built-in farad capacitor for faster hot start
*High-precision positioning
*Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
*10 Hz Refresh rate
*Built-in Flash
Product Details
Compass module: QMC5883L
Baud Rate: 9600-460800 (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8g
Input Voltage: 3.3-5.5 V
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Baud Rate: 9600-460800 (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8g
Input Voltage: 3.3-5.5 V
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Item Packing
1 x BLITZ Mini M10 GPS V2

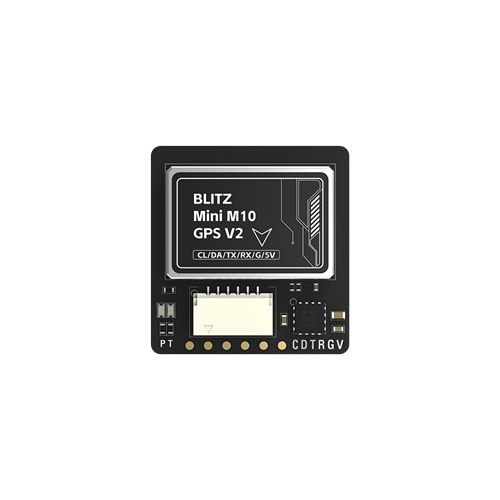

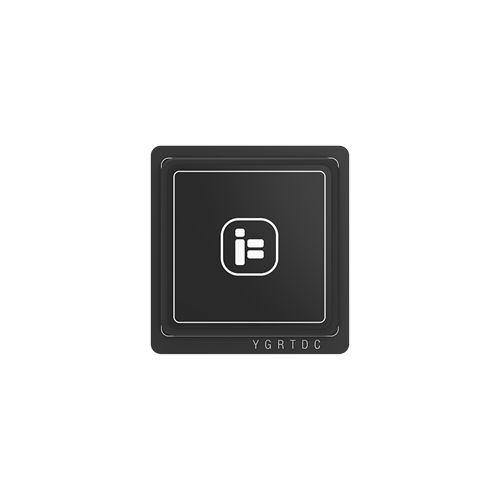

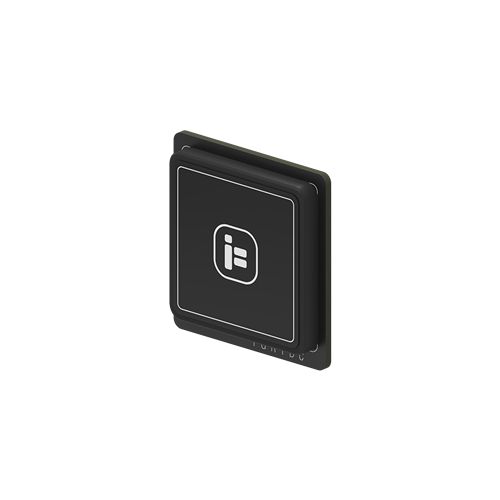

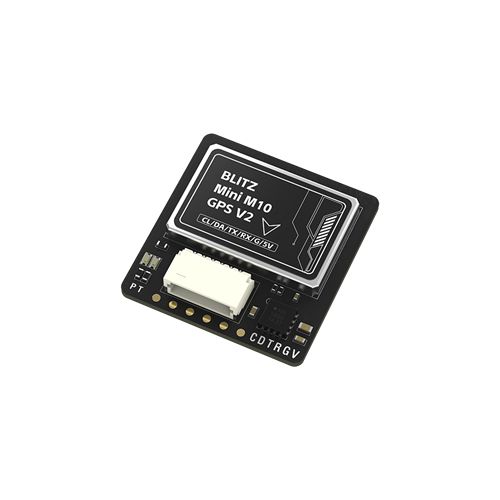

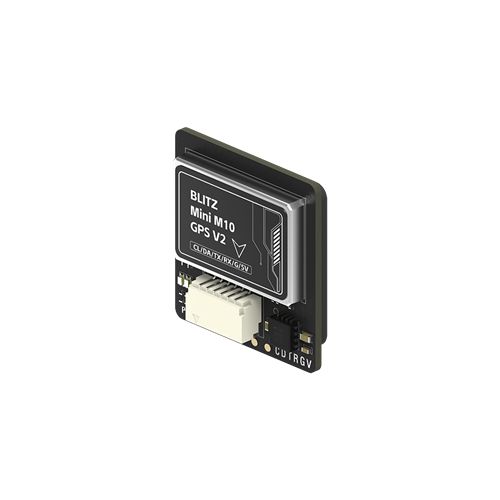

Detailed Images
