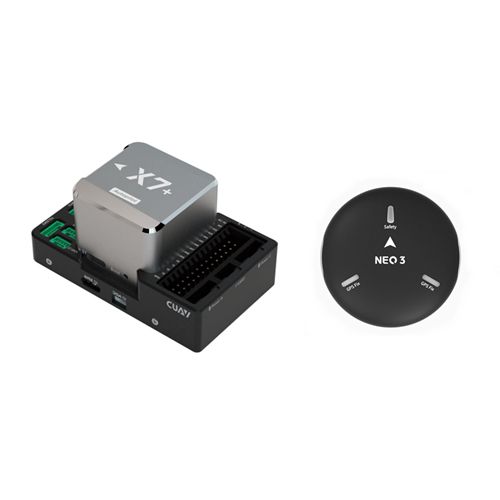

CUAV X7+ Flight Controller NEO 3 GPS Pixhawk Open Source PX4 ArduPilot GNSS FPV RC Drone Quadcopter

CUAV X7+ Flight Controller NEO 3 GPS Pixhawk Open Source PX4 ArduPilot GNSS FPV RC Drone Quadcopter
Part No.: NEO3-X7+
Manufacturer: CUAV

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

X7+ autopilot uses STM32H743 series processors CPU, Cortex-M7 core (with double precision Floating-Point Unit). It makes operating frequency increase to 480Mhz, 2MB Flash,1MB RAM,Meet the higher computing needs of flight controllers Compared with the STM32F7 product line, the dynamic power consumption efficiency is doubled.

Product Details

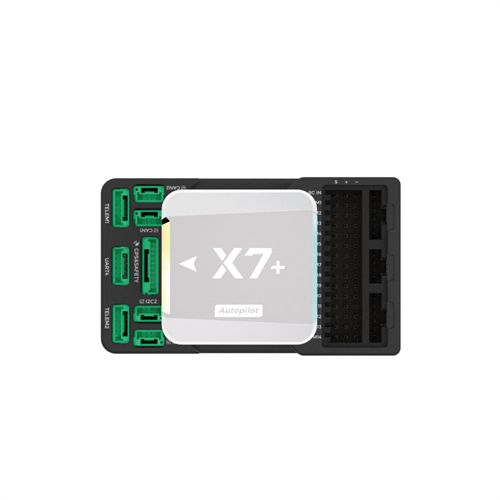

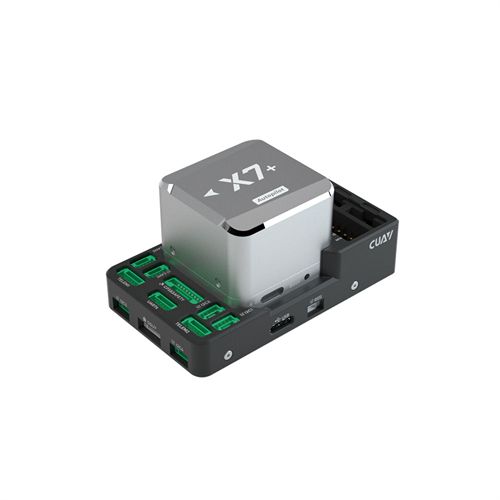

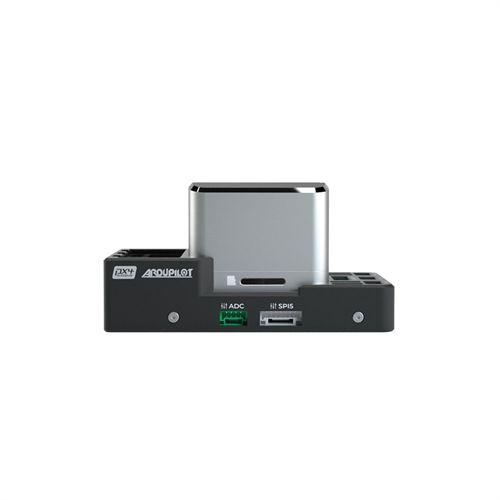

X7+ Flight Controller
Processor:STM32H743
Frequency:480MHz
Flash:2MB
RAM:1MB
Acce & Gyro:ICM-42688-P;ICM-20689;ICM-20689
Compass:RM3100
Barometer:Ms5611x2
UART:5
I2C:6 ( 2 interface are integrated in GPS & SAFETY & UART4 )
CAN:2
ADC IN:1 ( Support 6.6V / 3.3V )
SPI:1
PWM OUT:14 ( M1~M12 Support DSHOT protocol)
RC IN:1 ( Support PPM SBUS DSM)
RSSI:PWM or 3.3V analog voltage
Power IN:Power A for ADC protocol , Power C for CAN protocol
GPS Port:1 ( Other ports can be configured as GPS 2 , default is UART4)Safety switch:Integrated into GPS & SAFTETY port
Beeper:Integrated into GPS & SAFTETY port
Debug:1 ( UART7 )
JATG:1
USB:Type-C x 1
TF slot:1
Rated voltage:4.5 ~ 5.5V
USB voltage:4.75 ~ 5.25V
Servo voltage:0 ~ 36V
Working Temp:-20 ~ 85°C
LxWxH:77x45.5x39mm
Weight:104g
Ardupilot Firmware:Ardupilot 4.10 or above version Copter / Plane / Helicopter / VTOL / unmanned vehicle / Rover , etc
PX4 Firmware:PX4 1.12.3 or above version Copter / Plane / Helicopter / VTOL / unmanned vehicle / Rover , etc

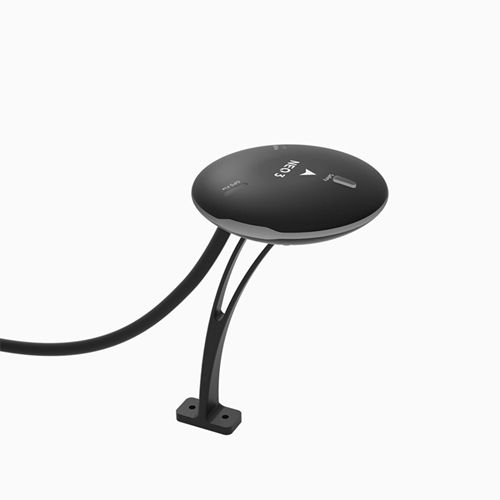

NEO 3 GPS
Compass:IST8310
GNSS receiver:UBLOX NEO M9N
RGB drive:NC5623C
Buzzer:Passive buzzer
Safety switch:Physical button
GNSS:Beidou、Galileo、GLONASS、GPS
GNSS Augmentation System
-SBAS:WAAS,EGNOS,MSAS
-QZSS:L1s(SAIF)
-Other:RTCM3.3
Number of concurrent GNSS:4
Frequency band
-GPS:L1C/A
-GLONASS:L10F
-Beidou:B1I
-Galileo:E1B/C
Horizontal accuracy:2.0M
Speed accuracy:0.05M/S
Nav. update rate:25Hz(Max)
Acquisition
-Cold start:24S
-Hot start:2S
-Aided start: 2s
Number of satellites(MAX):32+
Sensitivity
-Tracking and nav-167dBm
-Cold start Hot star-148dBm
-Reacquisition -160dBm
Protocol:UART+IO+I2C
Port TYpe:GHR-10V-S
Supported flight controller:CUAV series,Pixahwk series
Wave filtering:SAW+LNA+SAW
Anti-Electromagnetic/radio frequency interference:EMI+RFI
Upgrade firmware:support
Support Flight control type:Ardupilot/PX4*(PX4 is still working hard to adapt to the clock)
Input voltage:5V
Operating temperature:-10~70℃

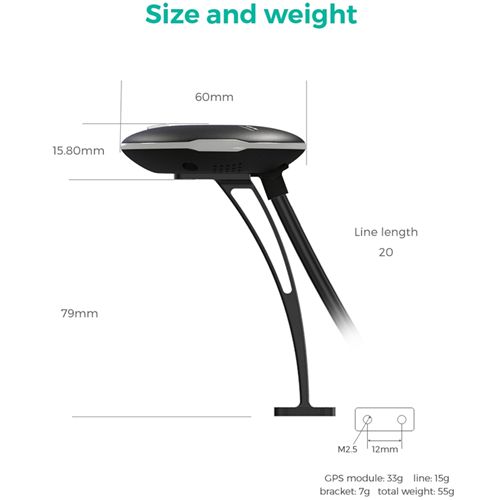

Size:60*60*16MM
Weight:33g

Item Packing

X7+ Flight Controller x 1
NEO 3 GPS x 1
