New CUAV Upgraded Drone CAN Protocol SKYE 2 Shock Resistance Heating Temperature Control Airspeed Sensor Meter
| Part No.: | SKYE-AS-II |
| Manufacturer: | CUAV |
Send to a friend
Features
*New generation linear structure
*Support DroneCan protocol
*Shock resistance，low temperature drift,high precision
*M4C intelligent precise heating
*Support DroneCan protocol
*Shock resistance，low temperature drift,high precision
*M4C intelligent precise heating
Product Details
Processor: STM32F4
Protocol: DroneCAN
Airspeed sensor: SM5391
Power supply range: Default 18~68V
Pitot tube heating power: 35W
Temperature control type: Resistance heating
Airspeed range: 0~106m/s
Accuracy: 1%FS
Humidity measurement: 0-100%
Temperature measurement: -20~125°C
Measuring range: ±6895Pa
Protection Level: P54 (To be installed on request)
Size: 102 × 28.2 × 30.5mm
Weight: 26.1g
Protocol: DroneCAN
Airspeed sensor: SM5391
Power supply range: Default 18~68V
Pitot tube heating power: 35W
Temperature control type: Resistance heating
Airspeed range: 0~106m/s
Accuracy: 1%FS
Humidity measurement: 0-100%
Temperature measurement: -20~125°C
Measuring range: ±6895Pa
Protection Level: P54 (To be installed on request)
Size: 102 × 28.2 × 30.5mm
Weight: 26.1g

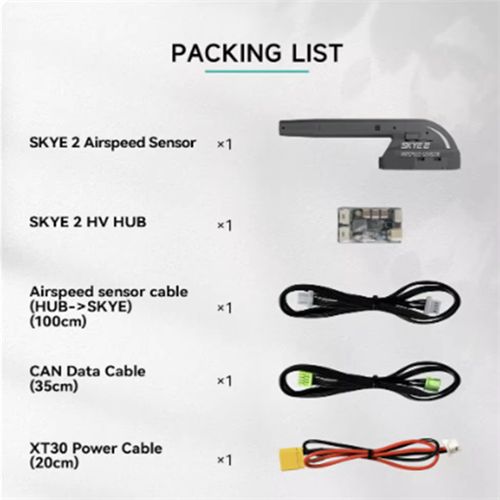

Item Packing
1 × SKYE 2 Airspeed Sensor
1 × SKYE 2 HVHUB
1 × Airspeed sensor cable (HUB->SKYE) (100cm)
1 × CAN Data Cable (35cm)
1 × XT30 Power Cable (20cm)
1 × SKYE 2 HVHUB
1 × Airspeed sensor cable (HUB->SKYE) (100cm)
1 × CAN Data Cable (35cm)
1 × XT30 Power Cable (20cm)
Detailed Images
