CUAV xb pro Radio digital radio module Pixhawk UAV flight control data transmission-Ground combi

CUAV xb pro Radio digital radio module Pixhawk UAV flight control data transmission-Ground combi
Part No.: CUAV-XBPRO
Manufacturer: CUAV

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Dual-end switching
The CUAV XB Radio PRO is built with TTL and USB ports. It features a seamless switching design between the airborne end and the ground end, reducing usage costs with greater flexibility.
*Integrated RSSI output
The CUAV XB Radio PRO integrates signal strength output and can be directly connected to the drone controller, enabling users to obtain the current signal strength in real time and thus judge the risk of disconnection.

Product Details

Specification parameters
I. Hardware parameters
Frequency range: 902 - 928 MHz
Processor: ADF7023 transceiver, Cortex-X3 EFM32G230@28Mhz programmable device includes: Freescale MC9s08QE32
Antenna selection: wire, U.FIL and RPSMSA
Performance
Data rate: 10kbps/200Kbps (different according to different firmware rates, default 200k)
Urban/indoor distance: 10kbps: up to 2000 feet (610 meters); 200kbps: up to 1000 feet
Maximum power: 24dBM (250mw) software selectable
Receiving sensitivity: -101dBM@200Kpds; -110dBm@10kbps
Characteristics
Data interface: UART(3V), SPI
GPIO: 15 digital IOs, 4 10-bit ADC inputs, 2 PWM outputs
Network topology: DlgiMEsh, relay, point-to-point, point-to-multipoint, peer-to-peer network
Spread spectrum: FHSS (software selectable)
Programmability
Memory: 32kb FLASH/2kb RAM up to 50MHZ
CPU clock
Power supply
Supply voltage: 4 - 7v
Transmitting current: 229mA
Receiving current: 44mA
Sleep current: 3uA
Certification by regulatory agencies
FCC (USA): MCQ-XB900HP
IC (Canada): 1846A-XB900HP
C-tick (Australia): Yes
Anatel (Brazil): None
IDA (Singapore): None

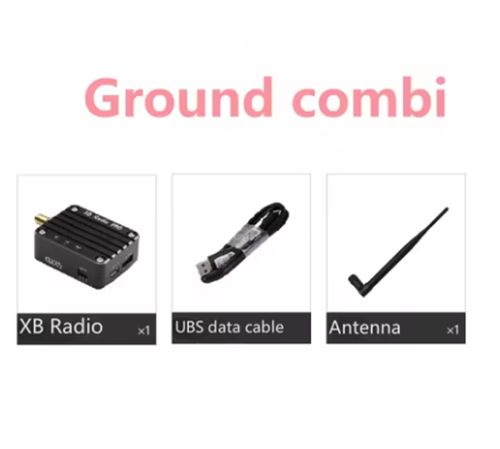

Item Packing

1×CUAV xb pro Radio digital radio module-Ground combi

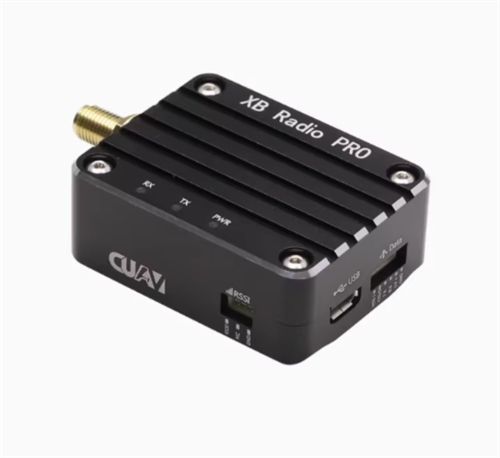

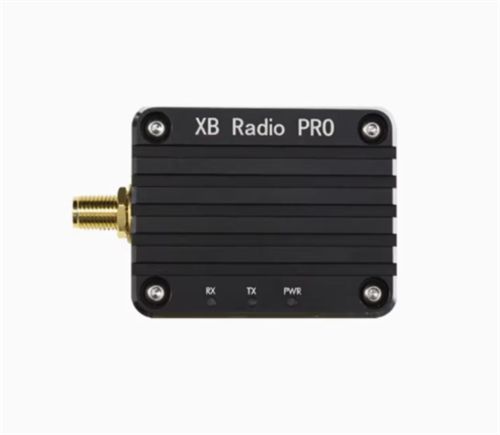

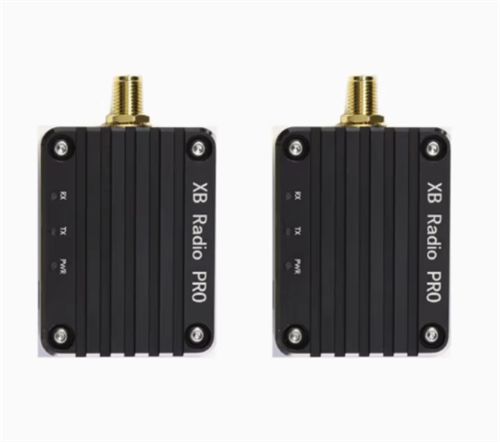

Detailed Images
