Hobbywing XRotor F7 Convertible Flight Controller For FPV Racing Drone Quadcopter
| Part No.: | XRF7 |
| Manufacturer: | Hobbywing |
| Quantity: | out of stock |
Send to a friend
Features
Super hardware and running speed
Equipped with STM32F722 MCU which has powerful computing ability and fast running speed,and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional Dshot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data
Equipped with STM32F722 MCU which has powerful computing ability and fast running speed,and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional Dshot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data
Product Details
Product Name：XRotor Flight Controller F7
Compatible with (Multirotors)：Quadcopters
Firmware：HOBBYWING_XROTORF7CONV
FC Programming：Supported
Programming via：Betaflight/Cleanflight-configurator
Compatible with (Modes)：PWM、Oneshot125、Oneshot42、Multishot、Dshot150、Dshot300、Dshot600、PROSHOT1000
Compatible with (Transmitters)：PPM、Spektrum、SBUS、SUMD、SUMH、 XBUS、IBUS、JETIEXBUS、CRSF、SRXL
OSD：Built-in
Voltage Monitoring：Supported
Current Monitoring：Supported
External Buzzer：Supported
LED Control：Supported

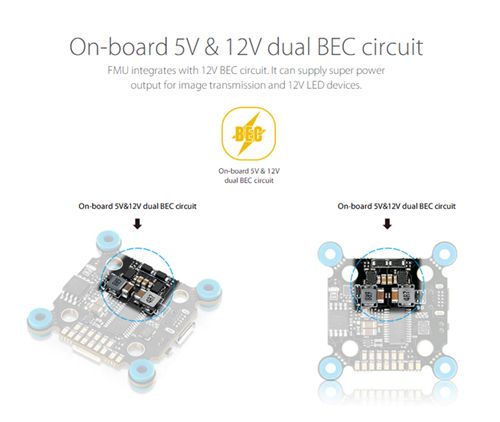

BEC：5V @ 1.5A ; 10V @ 1.5A
Size：32x32mm
Weight：3.3g
Applications：300mm above FPVs
Compatible with (Multirotors)：Quadcopters
Firmware：HOBBYWING_XROTORF7CONV
FC Programming：Supported
Programming via：Betaflight/Cleanflight-configurator
Compatible with (Modes)：PWM、Oneshot125、Oneshot42、Multishot、Dshot150、Dshot300、Dshot600、PROSHOT1000
Compatible with (Transmitters)：PPM、Spektrum、SBUS、SUMD、SUMH、 XBUS、IBUS、JETIEXBUS、CRSF、SRXL
OSD：Built-in
Voltage Monitoring：Supported
Current Monitoring：Supported
External Buzzer：Supported
LED Control：Supported
BEC：5V @ 1.5A ; 10V @ 1.5A
Size：32x32mm
Weight：3.3g
Applications：300mm above FPVs
Item Packing
XRotor Flight Controller F7 x 1

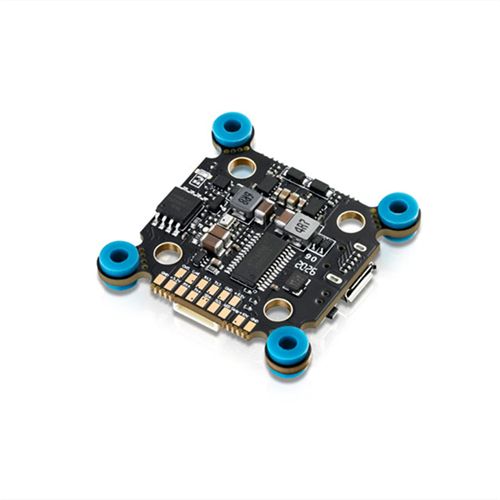

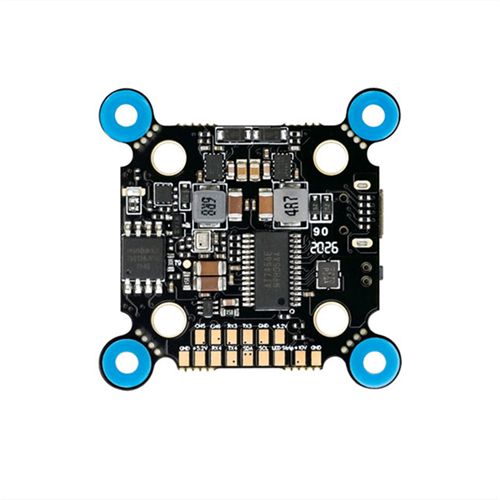

Detailed Images
