Matek H743-WLITE 2~6S Lipo Barometer DPS310 Flight Controller for RC Airplane Fixed-Wing FPV Drones

Matek H743-WLITE 2~6S Lipo Barometer DPS310 Flight Controller for RC Airplane Fixed-Wing FPV Drones
Part No.: H743-WLITE
Manufacturer: Matek

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Matek H743-WLITE 2~6S Lipo Barometer DPS310 Flight Controller for RC Airplane Fixed-Wing FPV Drones

Product Details

FC Specifications
MCU: STM32H743VIH6, 480MHz , 512KB RAM, 2MB Flash
IMU: ICM42688-P
Baro: DPS310 (I2C2)
OSD: AT7456E
Blackbox: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(12+LED)
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
2x I2C
1x CAN
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
9V(12V) for VTX power switch
High-precision Current Sense, 220A range
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K

FC Firmware
INAV: MATEKH743
ArduPilot: MATEKH743

PDB
Input voltage range: 6.8~30V (2~6S LiPo)
1x ESC power pads
Battery Voltage divider 1K:20K (Scale 2100 in INAV,  BATT_VOLT_MULT 21.0 in ArduPilot)
Current Senor: 220A,  3.3V ADC  (Scale 150 in INAV,  66.7 A/V in ArduPilot)
Sense resistor: 90A continuous, 220A peak

BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A

BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
for stable 9V/12V output, input voltage should > output voltage +1V

BEC Vx output
Designed for Servos
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
for stable Vx output, input voltage should > Vx voltage +1V

BEC 3.3V output
Designed for Baro / Compass module and external 3.3V peripherals
Linear Regulator
Continuous current: 200mA

Physical
Mounting: 25 x 25mm, Φ2mm

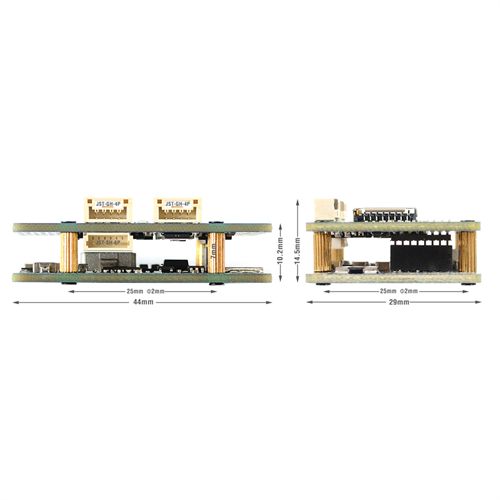

Dimensions: 44 x 29 x 14.5 mm
Weight: 22g  w/ USB/buzzer adapter

Item Packing

1x H743-WLITE
1x USB(Type-C)/Beep (Passive buzzer) Extender
1x 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
2x 20cm JST-GH-4P to JST-GH-4P cable for CAN & I2C port
1x Rubycon ZLH 35V 470uF capacitor
Dupont 2.54 pins  (Board is shipped unsoldered)

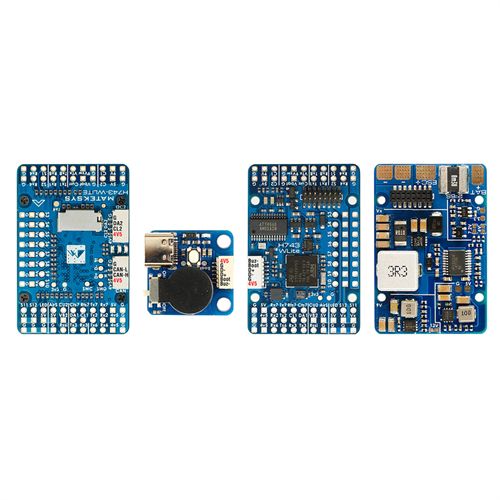

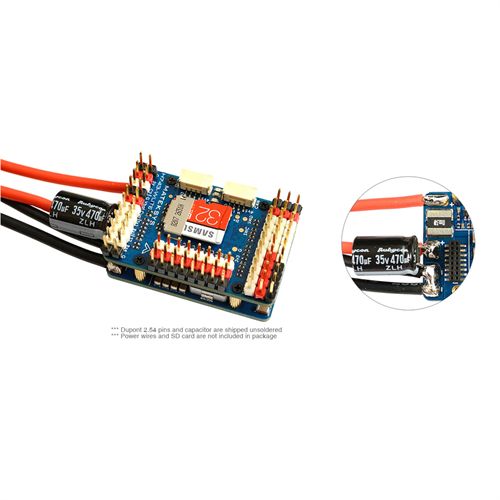

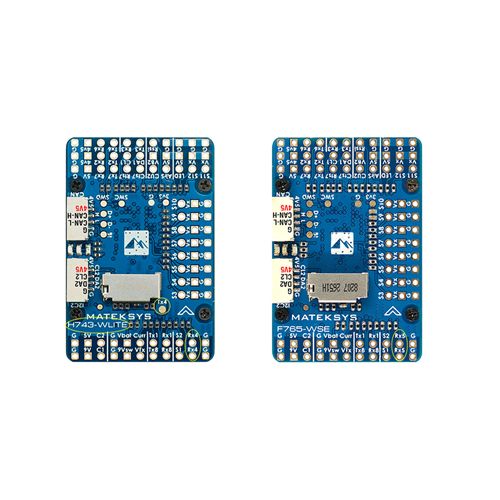

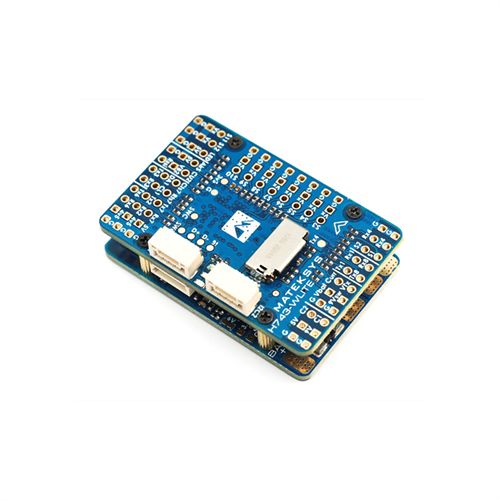

Detailed Images
