Happymodel Mobula7 75mm 1S Micro FPV Whoop Drone With 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS

Happymodel Mobula7 75mm 1S Micro FPV Whoop Drone With 5IN1 AIO Flight Controller Built-in 2.4G ELRS V2.0 RX Nano3 1/3 CMOS
Part No.: MOBULA7-ELRS
Manufacturer: happymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

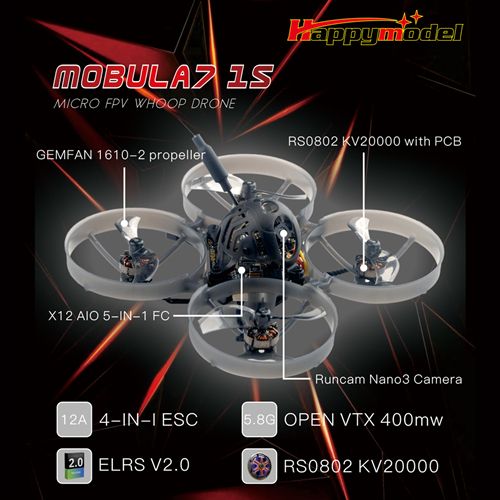

Features

X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)

Product Details

Brand Name: Happymodel
Item Name: Mobula7 1S 75mm Micro FPV whoop drone
Wheelbase: 75mm
Size: 99mm*99mm*40mm

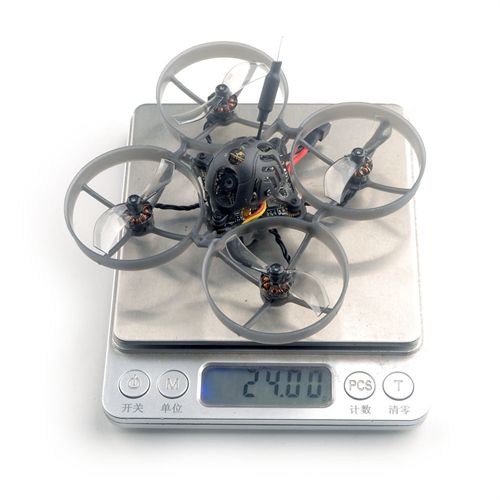

Weight: 24g

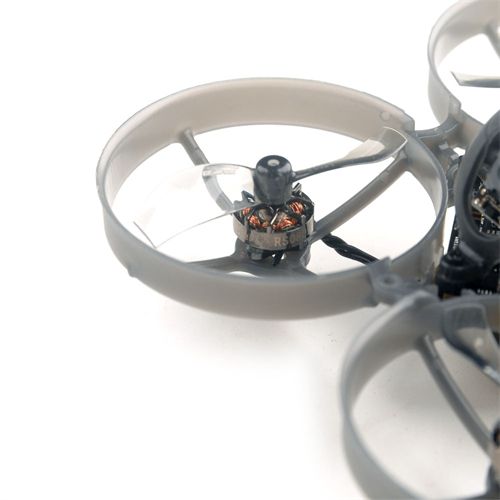

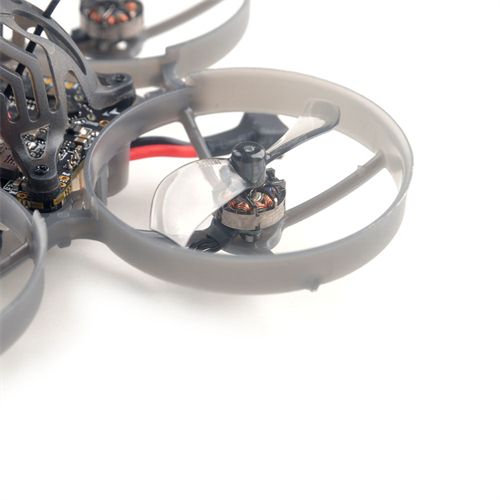

Motor
-- Mode: RS0802 KV20000
-- Configu-ration:9N12P
-- Stator Diamter:8mm
-- Stator Length:2mm
-- Shaft Diameter:Φ1.5mm
-- Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
-- Weight(g):2.0g
-- No.of Cells(Lipo):1S only
Propellers
-- Weight:0.24g
-- Material:PC
-- Pitch:1 inch
-- Props Dia:40mm
-- Center Thickness:5mm
-- Center Hole Dia:1.5mm
Flight controller
-- X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
-- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
-- Sensor: MPU6000 or ICM20689(SPI connection)
-- Mount hole size: 25.5mm*25.5mm
-- Power supply: 1S battery input (DC 2.9V-4.35V)
-- Built-in 12A(each) Blheli_S 4in1 ESC
-- Built-in Betaflight OSD(SPI Control)
-- Built-in 5.8G OpenVTX 0mw~400mw
-- Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
-- Built-in voltage detection
-- Built-in current sensor
Onboard 4in1 ESC
-- Power supply: 1S LiPo/LiPo HV
-- Current: 12A continuous peak 15A (3 seconds)
-- Support BLHeliSuite programmable
-- Factory firmware: Z_H_30_REV16_7.HEX
-- Default protocol: DSHOT300
-- Support Bluejay firmware
Onboard SPI ExpressLRS 2.4GHz Receiver
-- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
-- ExpressLRS Firmware version: V2.0
-- RF Frequency: 2.4GHz
-- Antenna : SMD antenna
-- Telemetry output Power: <12dBm
-- Receiver protocol:  SPI ExpressLRS
-- Compatible with ExpressLRS V2.0 TX Module
-- Couldn’t flash separately ExpressLRS firmware
Onboard 5.8g OPENVTX
-- Firmware version: OPENVTX
-- Smartaudio v2.1
-- PIT Mode support
-- RCE Mode support
-- Channels:48ch
-- Transmitting Power: 0/RCE/25mw/100mw/400mw
-- Power supply: DC 5V
-- Current (5v): <650ma (400mw)
Runcam Nano3
-- Model: RunCam Nano 3
-- Image Sensor: 1/3" CMOS
-- Horizontal Resolution: 800TVL
-- Lens: 2.1mm(M8) FOV 150°
-- Signal System: NTSC
-- S/N Ratio: >50dB
-- Electronic Shutter Speed: Auto
-- Auto Gain Control (AGC): Auto
-- Min. Illumination: 0.01Lux@1.2F
-- D-WDR: Auto
-- Day/Night: Color
-- Power:DC 3-5.5V
-- Current: 110mA@5V  120mA@3.3V
-- Housing Material: ABS
-- Net Weight: 1.2g
-- Dimensions: L14mm*W14mm*H9mm
Lipo Battery(Not include)
-- Capacity:650mAh
-- Voltage:3.8v
-- Continuous Discharge Rate: 30C
-- Instantaneous discharge rate: 60C
-- Size: 60mmx18mmx8mm
-- Weight: 16g
-- Connector: PH2.0

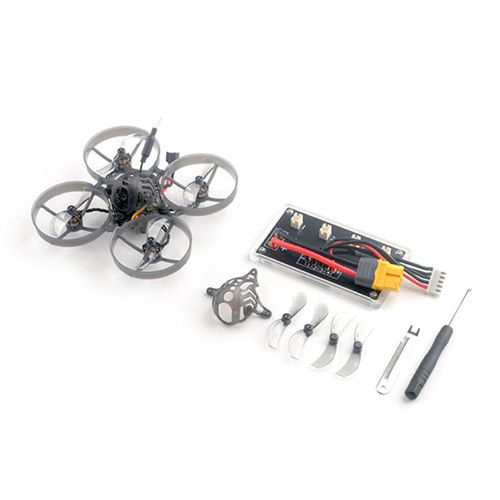

Item Packing

Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame) x 1
X12 ELRS V1.0 flight controller built-in SPI ELRS 2.4G receiver x 1
RS0802 KV20000 brushless motor x 4
Gemfan 1610-2 bi-blade propellers(4cw+4ccw) x 1
Runcam Nano3 1/3 CMOS 800TVL camera x 1
Onboard 5.8G Openvtx 0mw~400mw VTX x 1
1S parallel charging board x 1
Propeller disassemble tool x 1
Extra camera canopy x 1

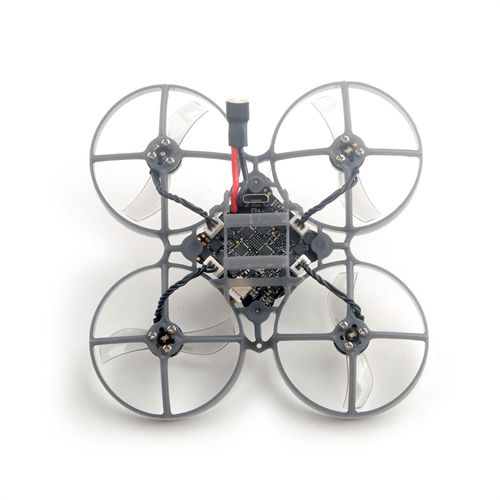

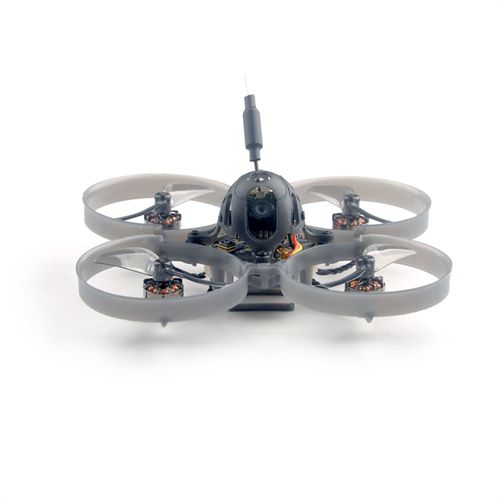

Detailed Images
