OMNIBUS F4 V2 Pro Flight Controller With Built In OSD

OMNIBUS F4 V2 Pro Flight Controller With Built In OSD
Part No.: OSDF4-V2
Manufacturer: hymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

OMNIBUS F4 is characterized by flight controller and OSD program integrated in an MCU, no additional microcontroller controlled, while the OSD tuning software and flight control parameters are integrated together, the input and output using standard equipment interface, reducing the conversion of wire and connectors , Reduce the risk, improve assembly and maintenance convenience.
MPU6000 sensor is connected with and SPI bus to improve the sampling rate of the sensor and the MCU master program running frequency, to provide higher control accuracy and faster response speed.
Built-in power module BEC, no external, easy to use.



Product Details

Item name: F4 V2 Flight Controller
Size: 35x35mm
Mounting hole: 30.5x30.5mm
Firmware: betaflight_3.1.7_OMNIBUSF4SD
Input voltage: 2-6S
SCM: STM32 F405 MCU
Sensor: SPI Sensor MPU6000
Berometer: BMP280
Slot: standard SD card slot
BEC: 5V/3A

Item Packing

1 x F4 V2 Flight Controller (without cables)

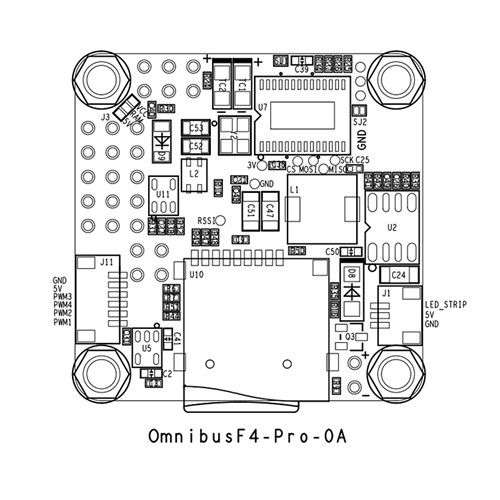

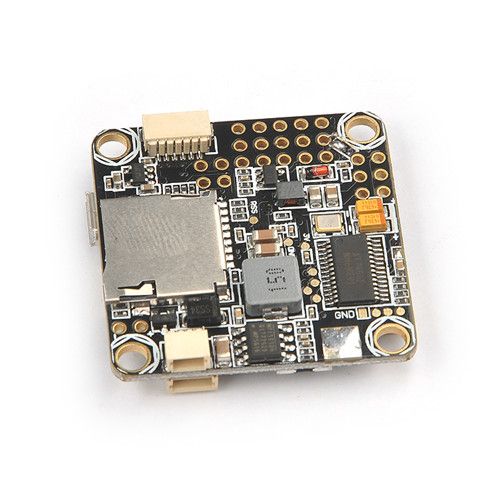

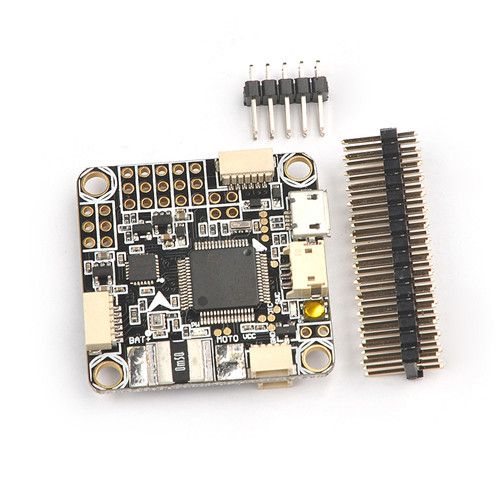

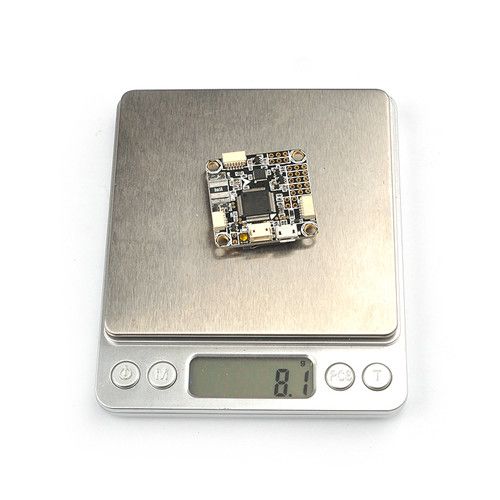

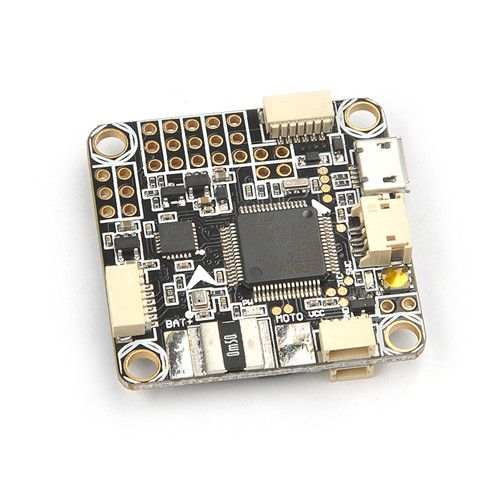

Detailed Images
