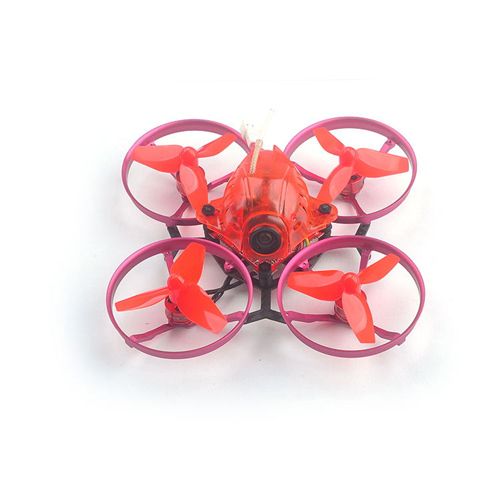

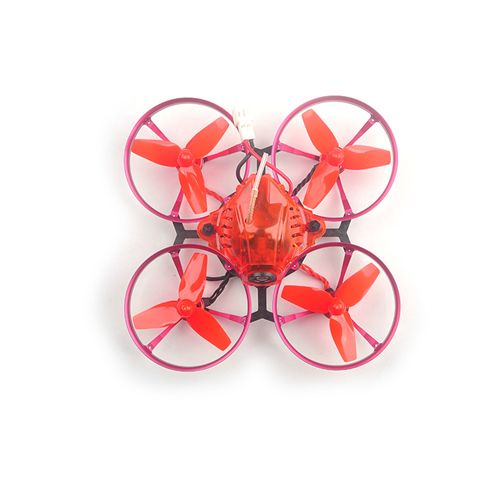

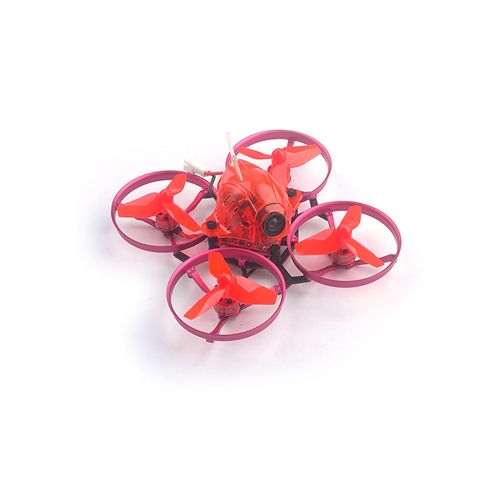

Snapper7 Brushless Whoop Racer Drone BNF Tiny 75mm FPV Racing RC Quadcopter 4in1 Crazybee F3 FC 700TVL Camera VTX

Snapper7 Brushless Whoop Racer Drone BNF Tiny 75mm FPV Racing RC Quadcopter 4in1 Crazybee F3 FC 700TVL Camera VTX
Part No.: Snapper7-3
Manufacturer: hymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Betaflight support , multi flight mode: ACRO/AIR/ANGLE
Powerful Brushless motor and Smooth ESC
CNC aluminum alloy propeller guard
Betaflight OSD support ,easy to get RSSI , Voltage and other info from your goggles
Adjust the settings and the PID of the flight controller via OSD
Frsky version support both EU LBT and NON-EU Frsky transmitter
Full telemetry function ready
Head lights ready
Camera angle adjustable
Real Bind and Fly version

Product Details

Mode: SE0703 KV19000
Configu-ration:9N12P
Stator Diamter:7mm
Stator Length:3mm
Shaft Diameter:Dia 1.0
Motor Dimension(Dia.*Len):Dia 10*14.5
Weight(g):2.5
No.of Cells(Lipo):1S
Flight controller
Firmware: Betaflight_3.3.0_Crazybee
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Board weight: 3.5 g
Power supply: 1S battery input (DC 3.5-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Frsky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter (Max 14A,could be modified to 28A by replace resistor)
Built-in 5V 0.8A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Onboard 4in1 ESC
Power supply: 1S LiPo/LiPo HV (4.2v/4.35v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_L_5_REV16_6.HEX
Default protocol:
Frsky receiver Version
SPI BUS receiver
Frsky D8/D16 switchable
Compatible both of Non EU and EU LBT transmitter
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support

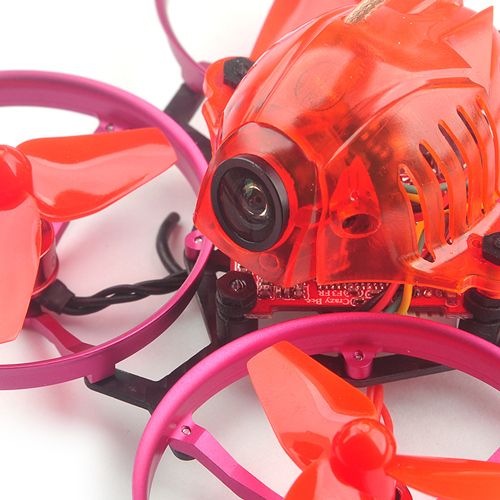

AIO Camera&VTX
Output power: 25mw
Frequency: 48CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Camera resolution: 700TVL
Field of view: 120 Degree
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 6 bands 48 channels
With Raceband: 5474 5945 MHZ
Size: 13.9"12.0mm ( L*W )
Weight: 3g

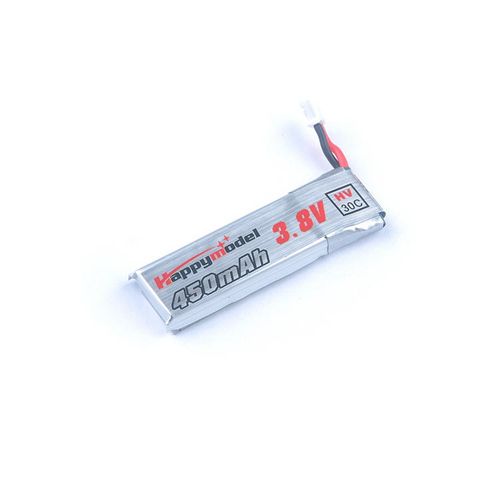

Lipo Battery
Capacity:450mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx7mm
Weight: 13.6g
Connector: PH2.0



Item Packing

Snapper 7 Frame 1
Crazybee F3 FC Frsky  1
SE0703 KV19000 Motor 4
40mm 3-blades propeller(4cw+4ccw) 1
AIO Camera & VTX 1
3.8v 450mah 30C/60C battery 3

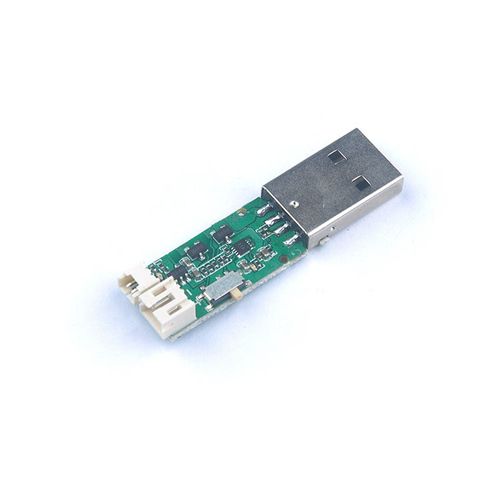

USB Lipo/LIHV Charger 0

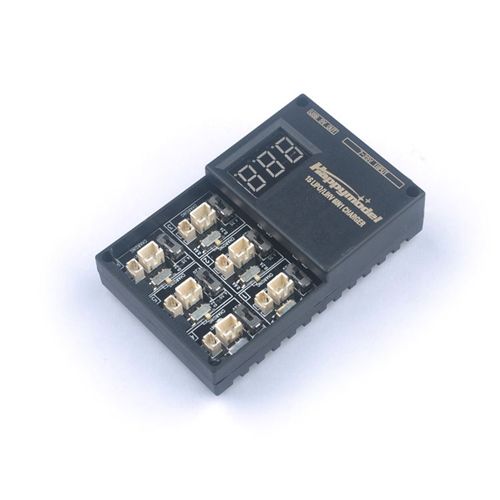

1S06 6 way Lipo/LIHV charger 1
Propeller disassemble tool 1
Screwdriver 1

Detailed Images
