CUAV New SKYE 2 Nano DroneCAN DLVR High Accuracy Linearity Airspeed Sensor for ultra-long range Drone Measurement
| Part No.: | CU-SKYE2-Nano |
| Manufacturer: | CUAV |
Send to a friend
Features
*DLVR airspeed sensor with dual-wafer technology
*Self-developed M4C architecture
*Strong aluminum alloy shell
*Support airspeed measurement up to 226.8km/h
*Self-developed M4C architecture
*Strong aluminum alloy shell
*Support airspeed measurement up to 226.8km/h
Product Details
Brand Name: CUAV
Model Number: SKYE 2 Nano
Material: Plastic, Metal, chip
Airspeed measurement: 0-226.8km/h
Compatible controller: ArduPilot/PX4
MCU: STM32F4 100MHz
Sensor: DLVR L10D
Operating Voltage: 4.75~5.3V
Operating temperature: -20~85℃
Private Mold: NO
Weight: 15g

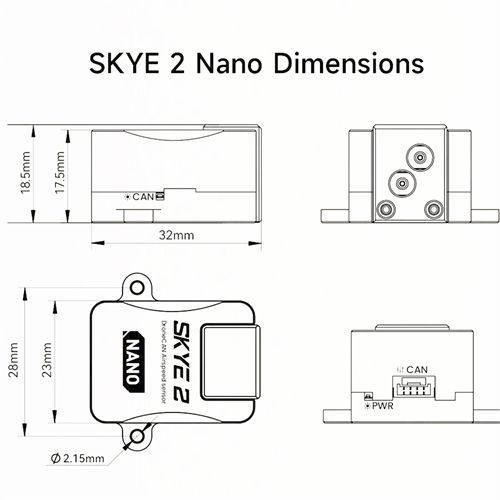

Dimensions: 33*33.5*18.5 mm
Model Number: SKYE 2 Nano
Material: Plastic, Metal, chip
Airspeed measurement: 0-226.8km/h
Compatible controller: ArduPilot/PX4
MCU: STM32F4 100MHz
Sensor: DLVR L10D
Operating Voltage: 4.75~5.3V
Operating temperature: -20~85℃
Private Mold: NO
Weight: 15g
Dimensions: 33*33.5*18.5 mm

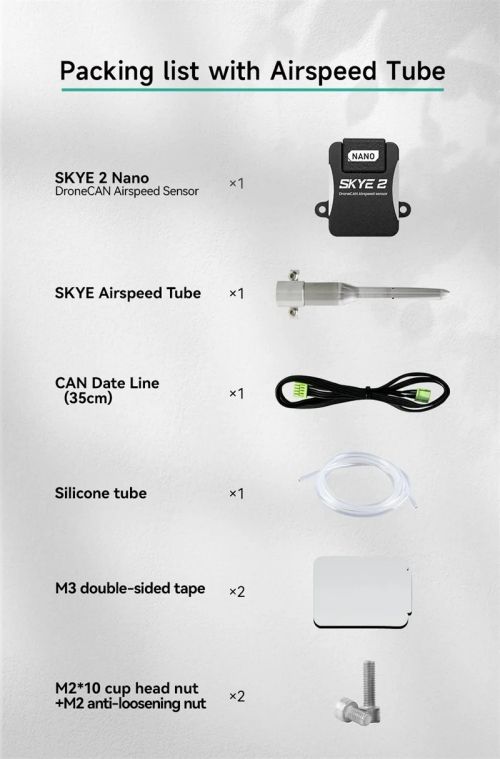

Item Packing
1 x SKYE 2 Nano DroneCAN Airspeed Sensor
1 x SKYE Airspeed Tube
1 x CAN Data Line (35cm)
1 x Silicone tube
2 x M3 double-sided tape
2 x M2*10 cup head nut +M2 anti-loosening nut
1 x SKYE Airspeed Tube
1 x CAN Data Line (35cm)
1 x Silicone tube
2 x M3 double-sided tape
2 x M2*10 cup head nut +M2 anti-loosening nut

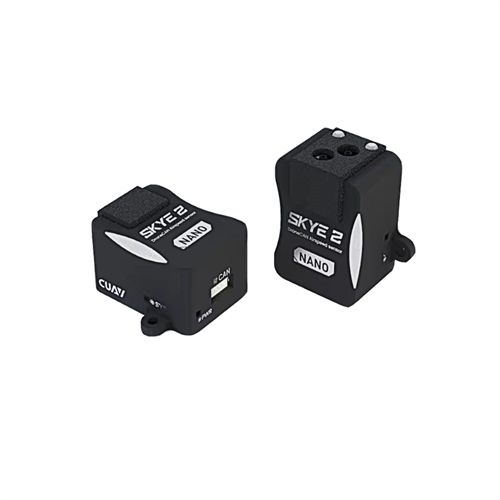

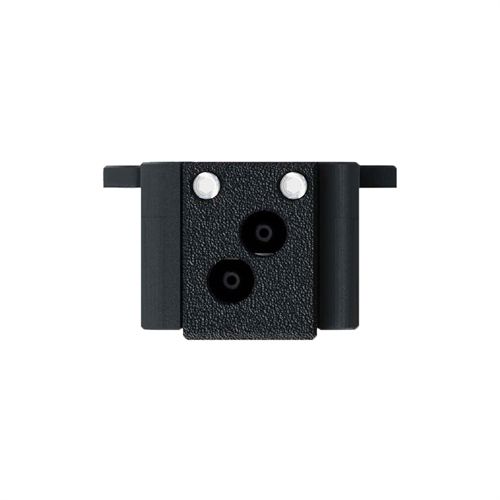

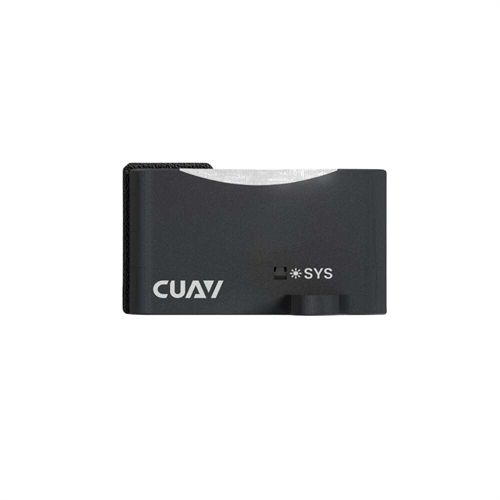

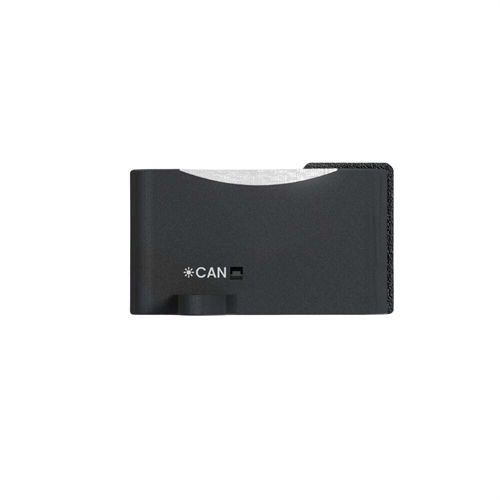

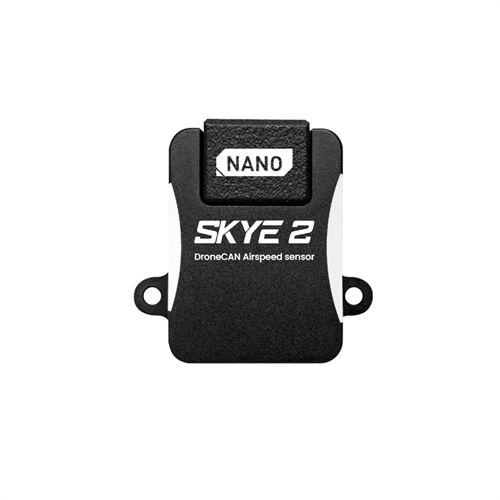

Detailed Images
