Rocket 3660 3250KV 4 Poles Brushless Sensorless Motor for 900mm RC Boat
Part No.: | RO-3660-3250KV |
Manufacturer: | Feixiang |
Send to a friend
Features
4 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Removable/replaceable rotor
Precision engineered for maximum energy conversion
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Removable/replaceable rotor
Precision engineered for maximum energy conversion
Product Details
Brand name: Rocket
KV(RPM/Volt): 3250KV
Diameter: 36mm
Length: 60mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Max Amps:70
Max voltage:17
Max power(W):1200
Weight(g):195
Motor size(mm) :Φ36x60
Winding type:WYE
Number of turns:2Y
No load current:3.1A
Max RPM:60K
Shaft(mm):Φ5
Rotor poles:4
Item Packing
Rocket 3250KV Brushless Motor x 1

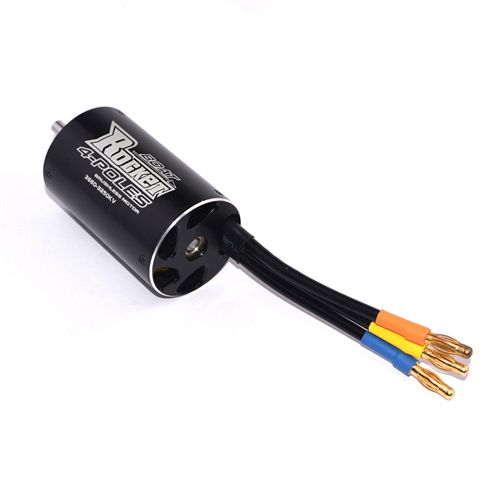

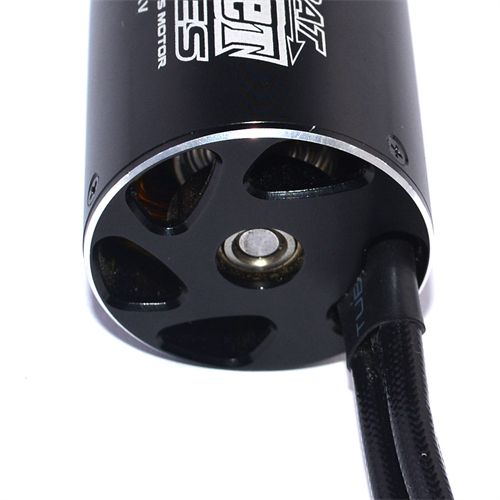

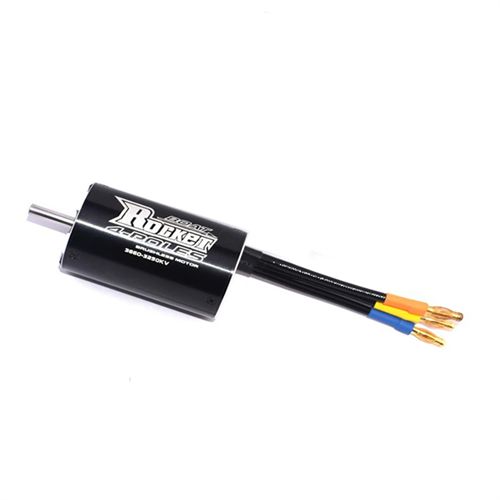

Detailed Images
