HobbyWing QuicRun Fusion Pro 540 2300KV Brushless Sensory Motor Built In 60A ESC 2 in 1 for RC 1/10 Climbing Car
| Part No.: | FUSION-PRO-2300KV |
| Manufacturer: | Hobbywing |
Send to a friend
Features
HobbyWing QuicRun Fusion Pro 540 2300KV Brushless Sensory Motor Built In 60A ESC 2 in 1 for RC 1/10 Climbing Car
Product Details
Product Name：Quicrun Fusion Pro
Product Number：30120402
Type
- Scale：1/10th
- Brushed/Brushless：BL
- Sensored/Sensorless：SD
- Waterproof：Waterproof
Spcifications
- Cont / Peak Current：60A / 200A
- Input Voltage：2-3S Lipo / 6-9 Cell NIMH
- BEC Output：Switch Mode: 6V / 7.4V, 6A
- Motor KV：2300KV
- Diameter / length of Motor：37mm / 58mm
- Shaft diameter / exposed shaft lengt：3.175mm / 16mm
- Motor Poles：4
Wires & Connectors
- Input Wires：Red-14awg-330mm * 1 / Black-14awg-330mm * 1
- Input Connectors：XT60
( Note : All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
- SET Button on ESC：Not Supported
- LED Program Box：Supported
- LCD Program Box：Not Supported
- Wifi Module：Not Supported
- Program Port：Independent programming interface (switch position)
Firmware Upgrade：Not Supported
Size：37 * 58mm
Weight：209g (including wires & connectors)
Applications Vehicles：1/10th rock crawler
Product Number：30120402
Type
- Scale：1/10th
- Brushed/Brushless：BL
- Sensored/Sensorless：SD
- Waterproof：Waterproof
Spcifications
- Cont / Peak Current：60A / 200A
- Input Voltage：2-3S Lipo / 6-9 Cell NIMH
- BEC Output：Switch Mode: 6V / 7.4V, 6A
- Motor KV：2300KV
- Diameter / length of Motor：37mm / 58mm
- Shaft diameter / exposed shaft lengt：3.175mm / 16mm
- Motor Poles：4
Wires & Connectors
- Input Wires：Red-14awg-330mm * 1 / Black-14awg-330mm * 1
- Input Connectors：XT60
( Note : All the wire length above is the original length not the length you see from the outside.)
ESC Programing via
- SET Button on ESC：Not Supported
- LED Program Box：Supported
- LCD Program Box：Not Supported
- Wifi Module：Not Supported
- Program Port：Independent programming interface (switch position)
Firmware Upgrade：Not Supported
Size：37 * 58mm
Weight：209g (including wires & connectors)
Applications Vehicles：1/10th rock crawler

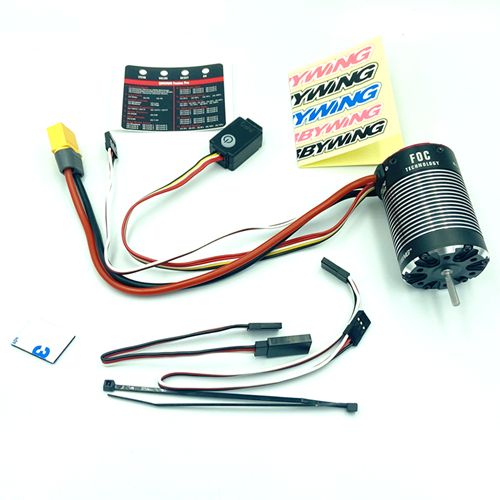

Item Packing
QuicRun Fusion Pro 540 2300KV Brushless Motor x 1

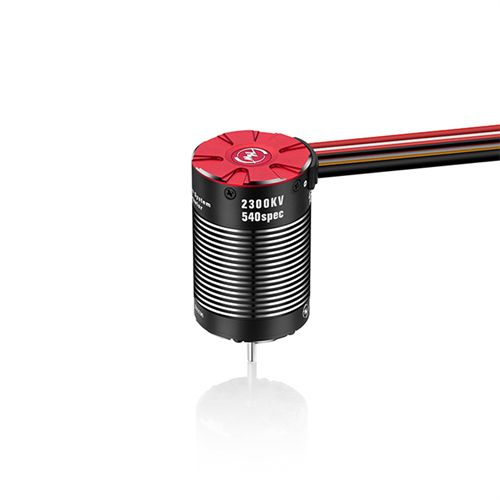

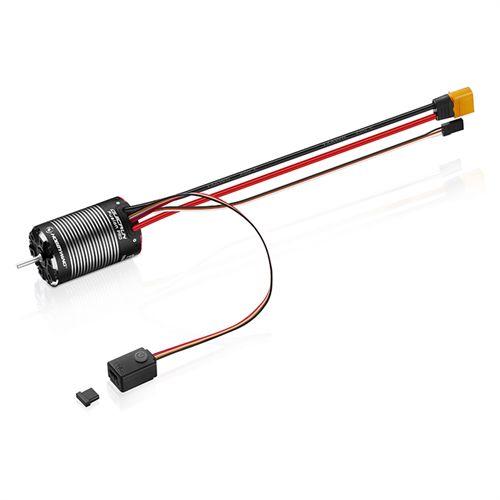

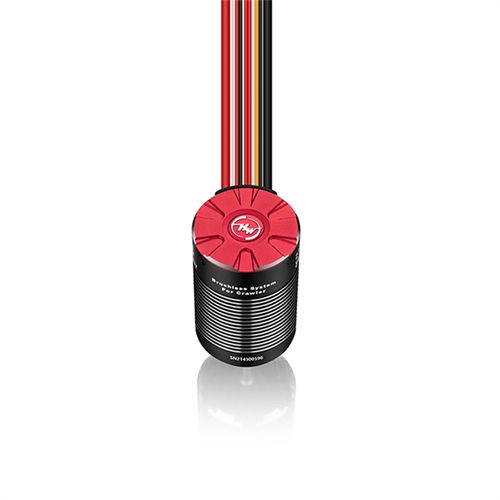

Detailed Images
