SURPASS HOBBY Waterproof Brushless ESC Speed Controller T PLUG 45A With Fan Combo For 1/10 1/12 RC Racing Car
| Part No.: | SH-ECS45A |
| Manufacturer: | Feixiang |
Send to a friend
Features
1.This ESC Water-proof and dust-proof for all weather races;(Note:please uninstall the cooling fan before using SC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-up,acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4.The strong resistant current capability ,excellent heat dissipation.
5.Muitiple protection features:Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle signal loss protection/Motor blocked protection.
6.Easily programmed and compatible with pocket-sized program card.
Product Details
Brand: SURPASSHOBBY
Cont.Current/Burst Current: 45A/240A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3650-Size or smaller motor with the KV<5600KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3800KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3800KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2600KV
Suitable Car: 1/10 Car
Resistance: 0.0014ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/76g
Cont.Current/Burst Current: 45A/240A
Motor Type: Sensorless Brushless Motor
for 2S Lipo or 6 cells NiMH :
1. on-road: 3650-Size or smaller motor with the KV<5600KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3800KV
for 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3800KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2600KV
Suitable Car: 1/10 Car
Resistance: 0.0014ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Dimensions/Weight: 51.5x68.5x38.5mm/76g
Item Packing
SURPASSHOBBY 45A ESC x 1

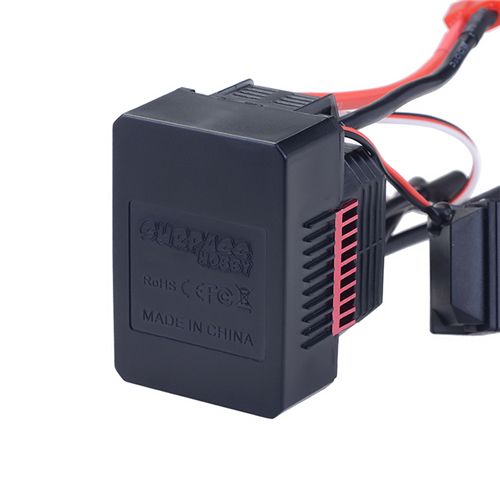

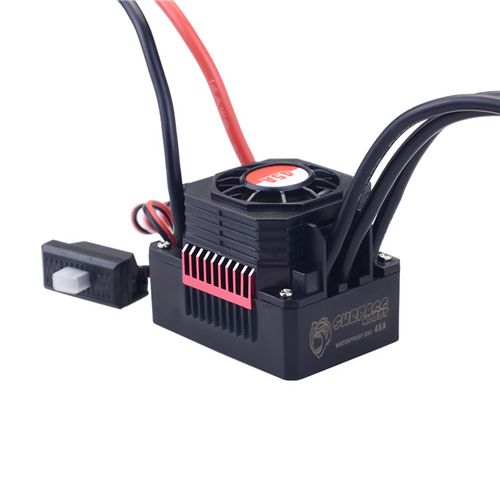

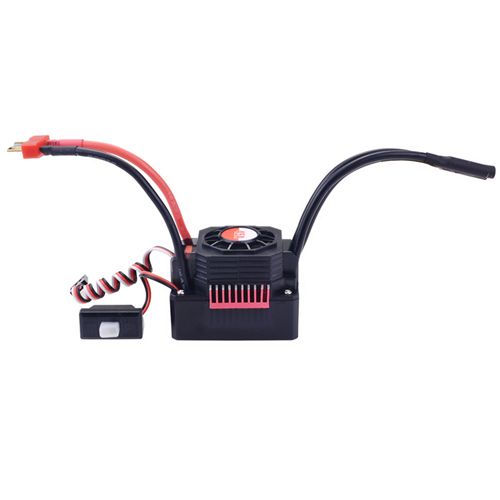

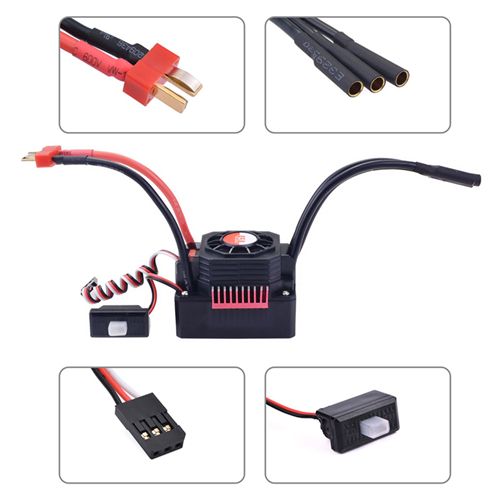

Detailed Images
