Hot New SpeedyBee Bluetooth-USB Adapter 2-6S Support STM32 Cp210x USB Connecter For RC Racing Drone Flight Controller Spare Part

Hot New SpeedyBee Bluetooth-USB Adapter 2-6S Support STM32 Cp210x USB Connecter For RC Racing Drone Flight Controller Spare Part
Part No.: SpeedyBee-USB
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- 2S - 6S Power Input

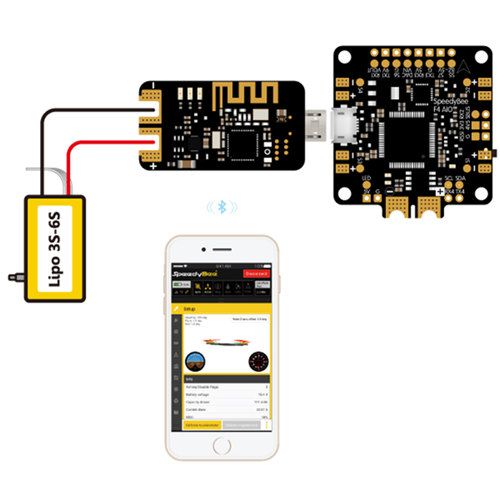

2s-6s power input, at the same time, the Micro USB interface supplies power to the flight controller
(*A battery can simultaneously power the Bluetooth module and the flight controller)
- Support USB Connector
Support STM32/Cp210x USB Connector, compatible with most flight controllers
- Speedybee App
Using with SpeedyBee APP, the most convenient Mobile Ground Station!
iOS Device: for iPhone 4S, for iPad 3rd Gen and later
iOS 10.0+ : for APP Store
Android 4.3+: Google Play, Download
- More Stable and Faster Transmission Performance
Low-Power Bluetooth Solution
Standalone Transmission Control Chip
1KB Data Cache Expansion
- No Configuration Required, plug and play

Product Details

Brand Name: SpeedyBee
Item Name: Bluetooth-USB Adapter
Output Power: 0 dBm
Receiver Sensitivity: -94 dBm
Transmission Rate: Bidirectional 2K/S
Bluetooth Protocol: 2Bluetooth Specification V4.0 BLE
Transmission Distance: 10m
Frequency Range: 2400 MHZ - 2483.5MHZ (2.4G ISM Band)
Baud Rate: 19200
USB to Serial Port Baud Rate: 115200
Operating Voltage: 2-6S LiPo (6 - 30V)
Minimum Operating Current: 20mA
The Operating Current When Connecting The FC: 80mA

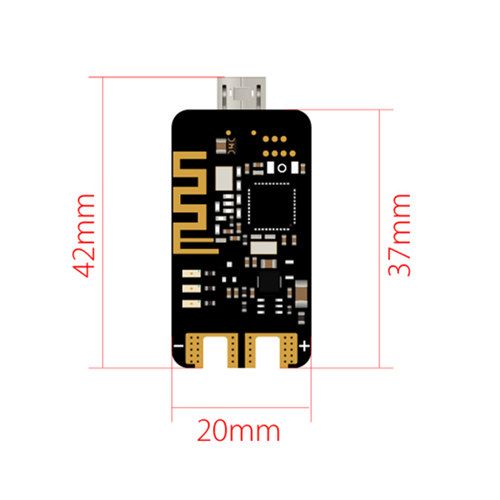

Dimension: 42*20*5.6mm
Net Weight: 3.5g

Item Packing

SpeedyBee-USB x 1

Detailed Images
