SoloGood F722 60A Stack ICM42688P 4in1 ESC Flight Controller BLHELI_S 2-6S for FPV Freestyle Drones Parts

SoloGood F722 60A Stack ICM42688P 4in1 ESC Flight Controller BLHELI_S  2-6S for FPV Freestyle Drones Parts
Part No.: SG-F722-60A
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Easy to build X8 drones, Xiugu high-performance flight control supports 8 motor outputs, making it a worry free choice for X8 aircraft.
*Integrated 5V/10V dual BEC, the 10V BEC can provide independent power to the VTX through USER1 control switch to ensure stable operation. When debugging the aircraft, the 10V power supply of the VTX can be remotely turned off without the need for a fan to cool the VTX.
*There are 4 LED status indicator lights that display the working status in different states.
Equipped with F722 main control chip, onboard OSD chip, barometer, and onboard black box chip are all available.
*Using large solder pads, even beginners can solder perfectly.
*High performance processors and onboard TVS protection tubes can also function freely in complex flight environments.
*Support Bluejay firmware, bidirectional DSHOT, and enable RPM filtering.

Product Details

Main control: STM32F722RET6
Gyroscope: ICM42688P
Barometer: Supported (DPS310)
OSD: Supported (AT7456E)
BEC: 10V/2A, 5V/2A
UART port: 6
Black box: On-board (16M flash memory)
Number of supported motors: M1-M8
Firmware name: BETAFLIGHT:SOLOGOODF722
Input voltage: 3-6S lithium battery (11-30V MAX)
Output voltage: VBAT
Mounting hole: 30.5×30.5MM (4MM aperture)
Flight control size: 38.5×38.5MM
Weight: 8.1 grams
LED status: Blue: Gyroscope status; Green: 3V3 indication; Red: 5VBEC indication; White: 10VBEC indication
DJI/VISTA: Supported/6PIN

ESC (Electronic Speed Controller):
TVS protective diode: Yes
External capacitor: 1000UF high-frequency low-resistance capacitor (included in the package)
ESC/motor protocol: DSHOT300/600
Continuous current: 60A
Maximum current: 65A
Mounting hole: 30.5×30.5MM (4MM aperture).

Item Packing

1×SoloGood F722 60A

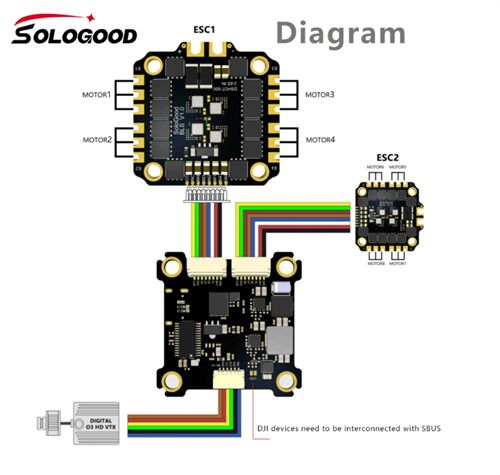

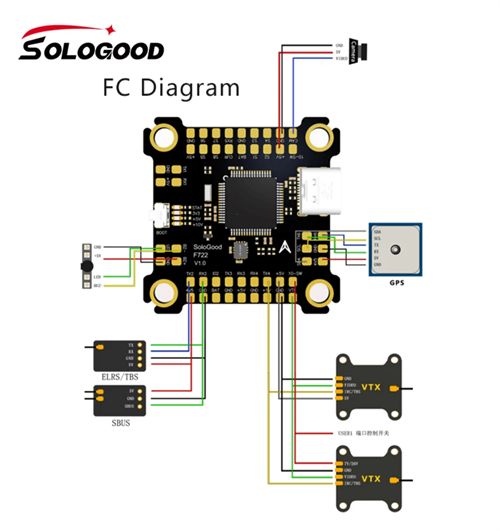

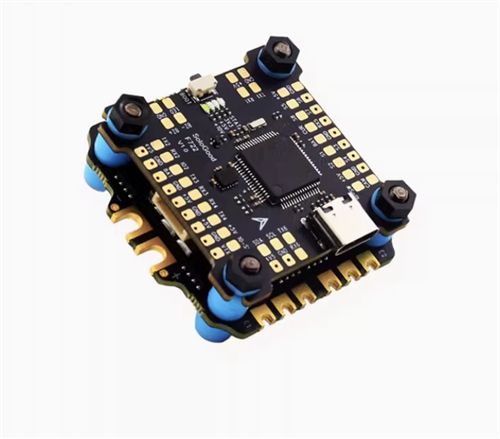

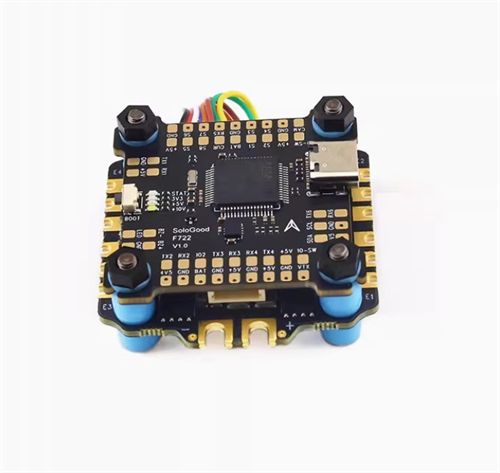

Detailed Images
