T-motor New released ALPHA 60A 12S HV Speed Controller for RC Drone Multirotor FPV Plane Brushless Motor MN605S U8II

T-motor New released ALPHA 60A 12S HV Speed Controller for RC Drone Multirotor FPV Plane Brushless Motor MN605S U8II
Part No.: ALPHA-60A
Manufacturer: T-MOTOR

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Multiple Protections - Intelligent design enables ALPHA ESC to timely detect parameters such as voltage, current, and temperature. The ESC will carry out adjustment and interference upon abnormality, thus helping to prolong the lifespan.
*Strict Protection: Nano coating technology is adopted in ALPHA ESC PCB A. With an IP55 grade, it keeps water and dust away, protecting the ESC from the damage of liquid corrosion such as pesticide for safe operation.
*Light-weight Design: While ensuring waterproof, dust-resistance, and cooling performance, ALPHA ESC is 15 - 20% lighter than square wave ESC of the same size.

Product Details

Size: 78.7*32.5*16.2mm (LWH).
Weight (Incl. cables): 73g.
Support Voltage(12S): 18 - 50.4V.
BEC: NO.
Con. Current: 60A.
Peak Current(10s): 80A.
Standby Consumption: ≤50mA.
Throttle Pos. Range: 1100 - 1940 s.
Throttle Refresh Frequency: 500Hz.
Throttle Response Speed: 300ms.
Silicone wire - deep orange - 16AWG: Motor Cable - 65MM*3PCS.
Silicone wire - red/black - 14AWG: Power Cable - 160MM.
PVC flat cable - 30 core wires - 2 - 300MM: Signal Cable (white, blank, black/JP 3P male connector).
PVC flat cable - 30 core wires - 3 - 300MM: Programming Cable (black, red, white/P 3P male connector).

Item Packing

1×ESC

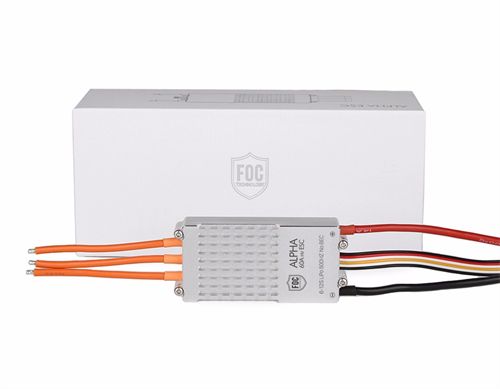

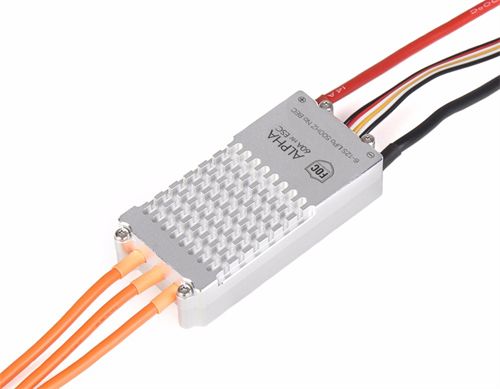

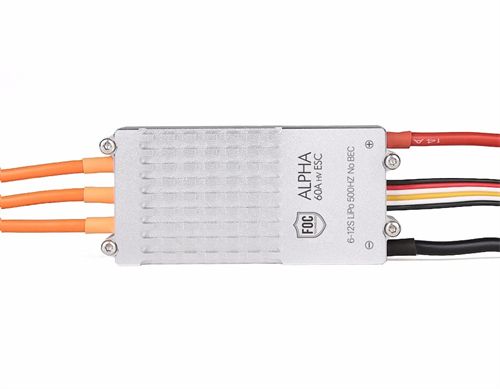

Detailed Images
