Hobbywing NEW XRotor H130A 14S BLDC Electronic speed controller (ESC) for fixed-wing and multi-rotor plant protection drones.

Hobbywing NEW XRotor H130A 14S BLDC Electronic speed controller (ESC) for fixed-wing and multi-rotor plant protection drones.
Part No.: H130A-14S-BLDC
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

*Dual Communication Bus Design. The industry's first CAN + 485 dual-bus throttle design, further enhances anti-interference and ensures safe flight.
*Independent Power Supply Real-time Wakeup. The ESC control circuit and power circuit are powered separately to ensure power supply stability and quick response.
*Compatible with low power consumption mode. Quickly enters a low-power state after activating sleep mode, and can be awakened to enter the working state at any time by external signals.
*Detailed Design,Easy Installation.New appearance, easy to install on both multi-rotor and fixed-wing drones.
*High Thermal Conductivity Materials.Strong heat dissipation, stable and reliable.

Product Details

Product Name: XRotor H130A14SBLDC
Specifications:
Input Voltage: 6 - 14S (18 - 65V)
Continuous Current: 60A (Good heat dissipation)
Peak Current: 150A (3S)
Operating Temperature: -40°C - 65°C
Communication Protocol: CAN + RS485 (Custom serial port)
Isolation Mode: Throttle and communication isolation
Firmware Update: Supported
Digital Throttle: Supported (CAN)
PWM Input Signal Level: 5V/3.3V
Throttle Signal Frequency: 50 - 500Hz
Operating Pulse Width: 1100 - 1940µs
Throttle Travel Calibration: No
Double Throttle Signal: Supported (CAN and PWM)
Propeller Positioning: Optional
Fault Storage: 2 - 48 hours real-time data and fault data, real-time up to millisecond level.
Waterproof Rating: IP55 (Custom IP67)
Weight (without wire): 148g
Size: 96.5 × 46 × 23.5mm
Cable Specification:
Input: Silicone cable - 12AWG - 200mm × 2
Output: Silicone cable - 12AWG - 150mm × 3
Signal Shielded cable - 5pin - 500mm × 1, JR - 3Pin male connector × 2

Item Packing

1× Hobbywing XRotor H130A 14S BLDC

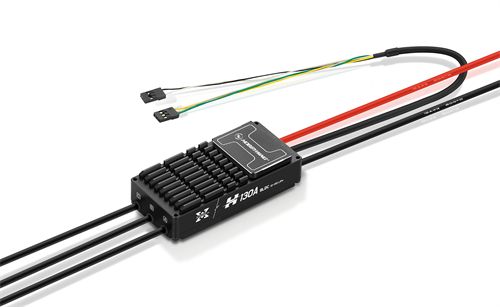

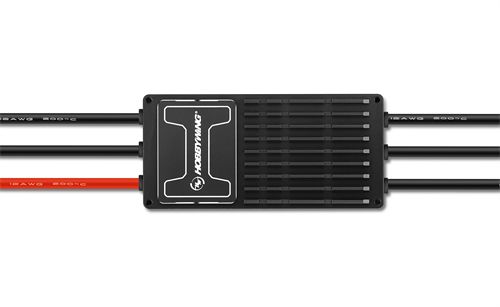

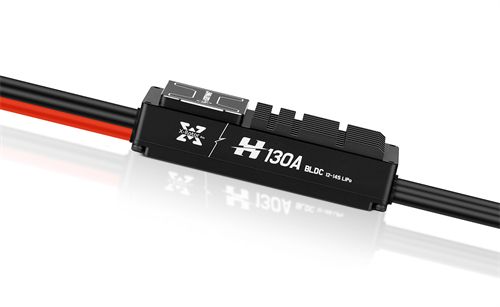

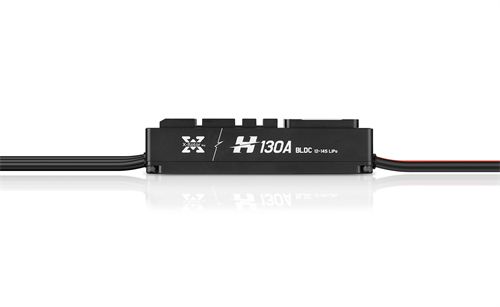

Detailed Images
