HSP HPI 320A Brushed Electrical Speed Controller ESC With Fan For RC Boat

HSP HPI 320A Brushed Electrical Speed Controller ESC With Fan For RC Boat
Part No.: HP-320A
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Operating system : forward, reverse, and brake
With this power transfer would not have to worry about slow tram Motor Boats only need to
replace the original power transfer
Operational Guidelines:
1.the right and a power supply battery connection on both ends of the wiring board the red
line for positive, black, compared with negative. (battery connection plug Daejeonmale plug )
2.ESC output red and black wire are connected to the red and black lines of the car 540 motor.
3.open the ESC power switch, if no signal input, motor will send a beep ~ beep ~ beep \”alarm sound.
Turn the transmitter power signal injection will issue the voice of the duo ~ ~ Mi \”, has been connected
to prove the transmitted signal and receiving the electrical and mechanical tone.

Product Details

Power range:7.2V-16V
Input voltage(advise):6-12 cells NiMH/NiCd or 2-4 cells LiPo.
Weight:60g (including connectors and switches)
BEC:5.6V 2A
Output current:forward 320A
Out of control protection
Low voltage protection
Over-voltage protection
With heat sink
For 540 dual motor or single motor

Item Packing

320A ESC x 1

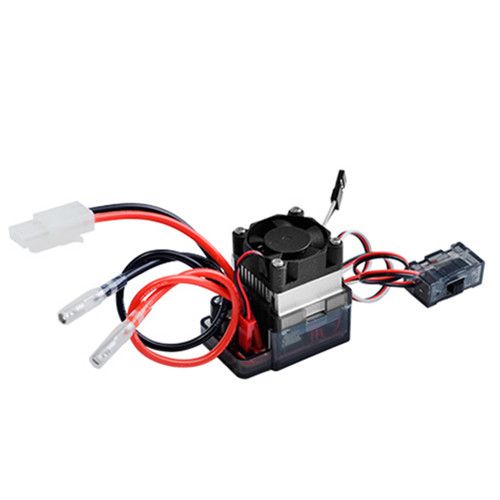

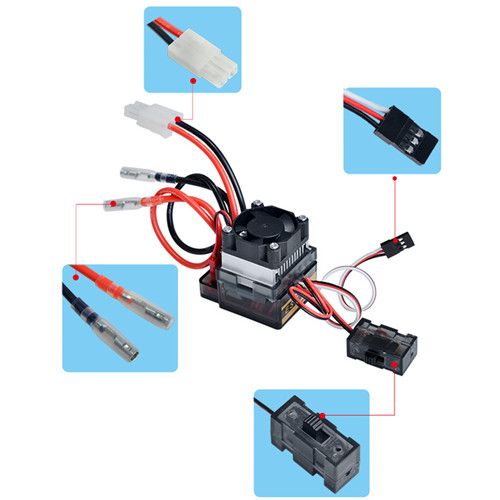

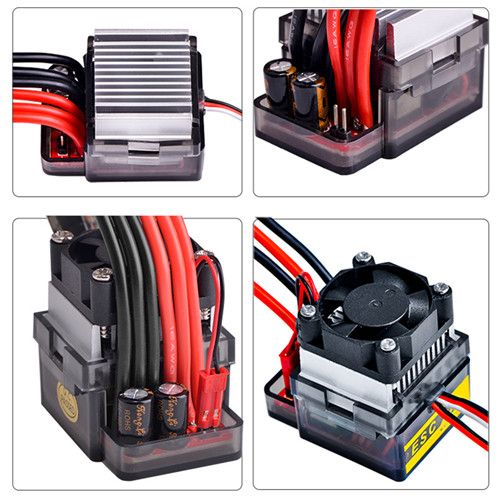

Detailed Images
