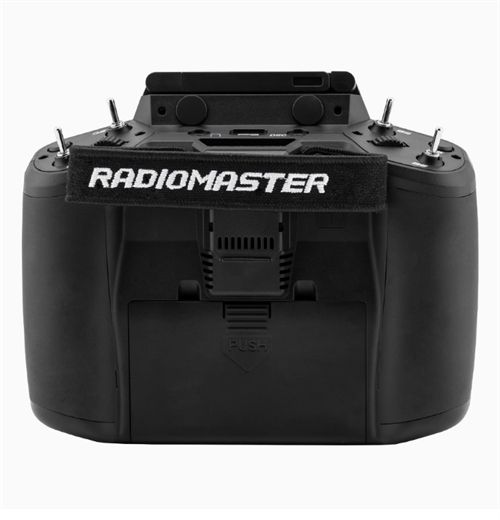

Radiomaster GX12 1000HZ 3D Digital CNC Hall Gimbal Dual Band Antenna Gemini XROSSBAND EXpressLRS Radio Controller

Part No.:	RM-GX12-ELRS
Manufacturer:	RadioMaster

Send to a friend

Features

*The GX12 is an outstanding device that combines multiple remarkable features.
*It is equipped with Dual-Band Dual 1W Gemini Xrossband ExpressLRS Transmitters, providing unmatched range and reliability through ExpressLRS Gemini Xrossband (Gem-X) dual-band transmission capabilities.
*The Integrated Folding Dual-Band Antennas, with their sleek and foldable design, are not only convenient for transport and storage but also compatible with both 2.4GHz and Sub - G 900MHz frequencies.
*The GX01 Gimbals, which are fully CNC Aluminum 3D Digital Hall Sensor Gimbals, offer superior control and durability due to their precision - engineered aluminum construction and 3D Hall sensors.
*The 1000Hz Digital Gimbals with EdgeTX Sync enable exceptional precision and responsiveness.
*Folding Gimbal Sticks add to the convenience of storage and transport. You can customize your setup with Removable Switch Panels, and enjoy flexibility in antenna installation via DIY SMA Ports.
*It features a crisp and clear OLED Display with high contrast, along with 512MB of integrated high - speed flash storage, eliminating the need for TF cards.
*The single USB - C Connectivity port manages smart balance charging, SIM connectivity, firmware updates, and direct access to the high - speed flash memory.
*The integration of the 6 - Position Switch and SA/SD Switches, which are individually programmable, offers versatile control options. *Programmable RGB Indicators on these switches provide visual feedback on switch status.
To handle the power generated by the dual 1 - watt transmitters, it has a Powerful Efficient Cooling System to keep the radio cool even in hot weather.
*With PCB Nano coating, thicker plastics, and a design engineered for the extremes, the GX12 can withstand hot, cold, dry, and humid conditions, ensuring reliable performance wherever your adventures lead.

Product Details

Item: GX12 Radio
Color: Black
Size: 183*148*78mm
Weight: 573g
Frequency: 2.400GHz and Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Antenna: Dual folding 2.4GHz/ Sub-G 900MHz omni directional
RF: (Dual 1,000mW | Dual band XROSSBAND ELRS)
Voltage Range: 6.6 - 8.4V DC
Current: 390mA - 1000mA (Depending on Rf output)
Radio Firmware: EdgeTX (Transmitter) / ELRS (RF module)
Channels: Max 16 channels (Receiver dependent)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells /21700 5000mAh Battery (batteries not included)
Charging: 2S Smart Balance Charging
Connectivity: USB-C
Display: 128*64 Monochrome OLED display
Gimbal: GX01 1000Hz, 3D Digital CNC Hall Effect Gimbal with folding sticks
Gimbal Sticks: 3mm
External Module: Nano / Crossfire compatible
Upgrade Method: USB / EdgeTX Companion PC software
Memory: 512Mb Integrated Flash

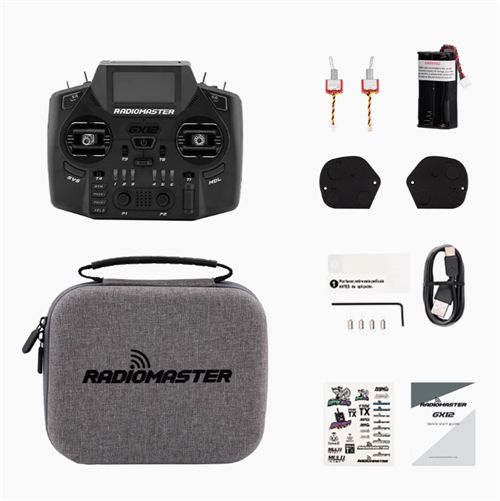

Item Packing

1 × GX12 Radio Controller

1 × Signature Carry Case

1 × 18650 Battery Tray

2 × Replacement Switch Panels

1 × Type-C Cable

1 × Screen Protector

1 × 1.5mm Hex Wrench

4 × Low Tension Gimbals Springs

1 × 2 Position Switch

1 × Momentary Switch

1 × RadioMaster Sticker Set

1 × GX12 Manual
