Tarot ZYX T-DZ 3-Axis Brushless Gimbal For GoPro Hero 3 / 4 TL3T03
| Part No.: | TL3T03 |
| Manufacturer: | TAROT |
Send to a friend
Features
Tarot's T-DZ metal three-axis pan/tilt is specially designed for GOPRO HERO 3/3+/4 cameras. It integrates all the high-end technologies of TAROT series PTZ, and adopts the industrial design of all-CNC overall ribbed structure. Lightweight and strongest stability. Even in demanding extreme environments, it accurately locks the camera to maintain high stability and delivers the ultimate picture of the ultimate experience. Tarot T-DZ metal three-axis pan/tilt head with PTZ control system with excellent calculation ability, built-in independent IMU to accurately control the attitude of the gimbal, integrated PTZ and servo drive module, support attitude locking, pointing follow and the first angle mode.
Product Details
Mechanical/electronic characteristics
Applicable camera type: GOPRO HERO 3/3+/4
Input power: 3S-6S Li (11V-26V)
Operating current: 30mA (@25V) / 50mA (@12V)
Stall current: 350mA (@25V) / 700mA (@12V)
Attitude control accuracy: ±0.02 degrees
Maximum controllable speed
Direction of rotation (PAN): ±200°/s
Tilt direction (TILT): ±200°/s
Roll direction (ROLL): ±200°/s
Controllable range of rotation
Direction of rotation (PAN): -125°~+125°
Tilt direction (TILT): -90°~+125°
Roll direction (ROLL): -35°~+40°
S-Bus/PPM/DSM receiver support
Working environment temperature: -20 ° C ~ +50 ° C
Maximum dimensions (length, width and height): 230mm * 214mm * 116mm
Assistant software installation requirements
Windows XP; Windows VISTA; Windows 7; Windows 8/10 (32 or 64 bit)
Item Packing
Metal three-axis gimbal 360 g × 1
PTZ master control module (36 × 25 × 11MM) × 1
8P PTZ master and PTZ main body connection line ×1
5V output, receiver and video line × 1
USB module (27 × 21 × 7MM) × 1
GoPro charging and video output line × 1
Car charger to XT30 female output line (150CM) × 1
XT30 male × 1
Packing box × 1
PTZ master control module (36 × 25 × 11MM) × 1
8P PTZ master and PTZ main body connection line ×1
5V output, receiver and video line × 1
USB module (27 × 21 × 7MM) × 1
GoPro charging and video output line × 1
Car charger to XT30 female output line (150CM) × 1
XT30 male × 1
Packing box × 1

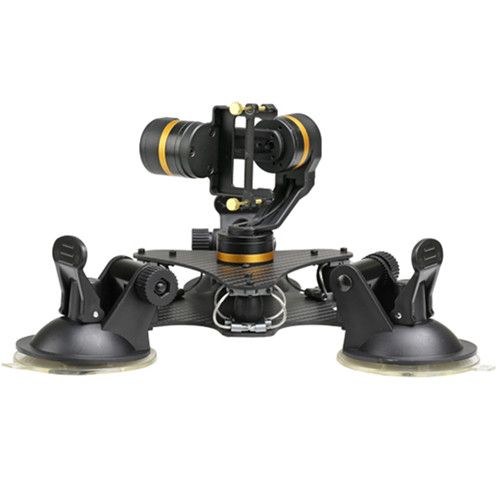

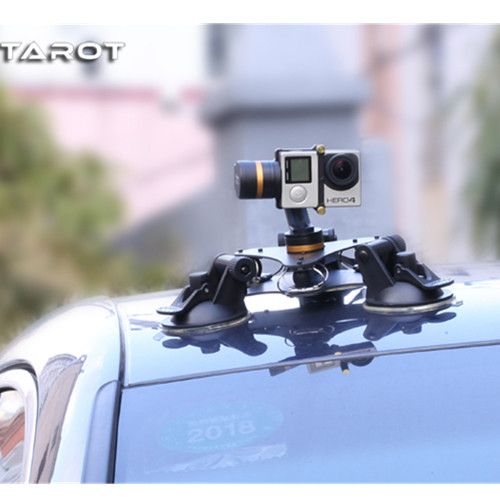

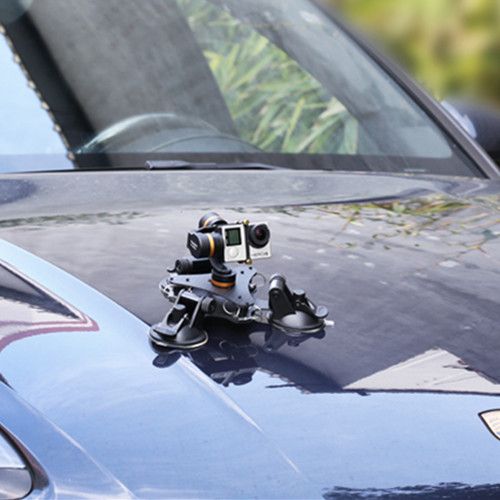

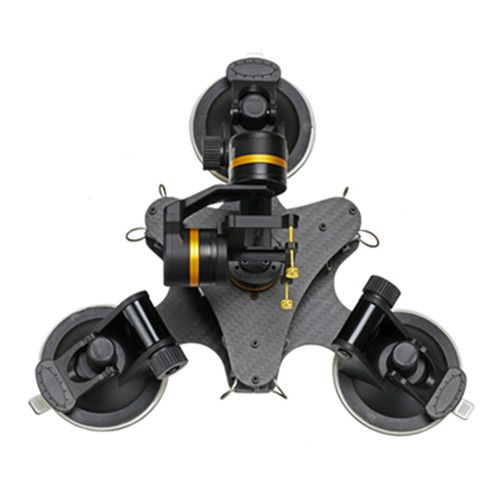

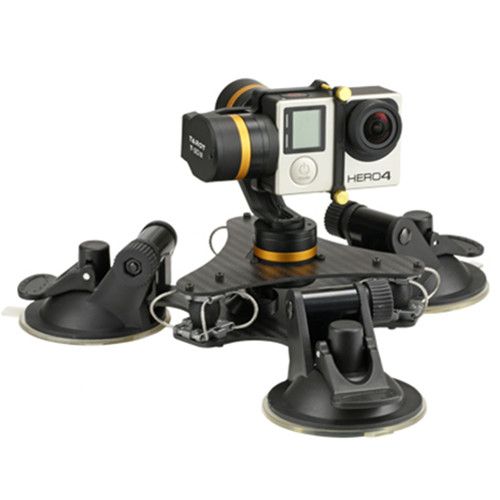

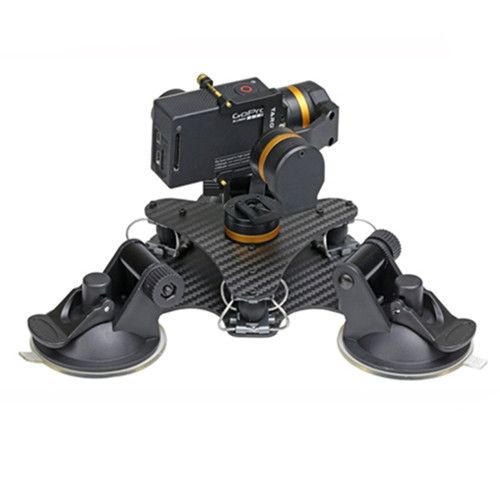

Detailed Images
