iFlight Gimbal Motor GM110-10 drone pod Motor/Turntable of Airborne Lid ar Pod Motor W/ AS5048A Encoder

iFlight Gimbal Motor GM110-10 drone pod Motor/Turntable of Airborne Lid ar Pod Motor W/ AS5048A Encoder
Part No.: IF-GM110-10
Manufacturer: IFlight

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

The AS5048 is an easy-to-use 360° angle position sensor with a 14-bit high-resolution output. The maximum system accuracy is 0.05° assuming linearization and averaging is done by the external microcontroller. The IC measures the absolute position of the magnet's rotation angle and consists of Hall sensors, the analog-digital converter, and digital signal processing. The zero position can be programmed via SPI or IC command. Therefore no programmer is needed anymore. This simplifies the assembly of the complete system because the zero position of the magnet does not need to be mechanically aligned. This helps developers to shorten their developing time. The sensor tolerates misalignment, air gap variations, temperature variations and as well as external magnetic fields. This robustness and wide temperature range (-40°C up to +150°C) of the AS5048 makes the IC ideal for rotation angle sensing in harsh industrial and medical environments. Several AS5048 ICs can be connected in the daisy chain for serial data read out. The absolute position information of the magnet is directly accessible over a PWM output and can be read out over a standard SPI or a high-speed IC interface. Version AS5048A comes with SPI and PWM Interface. Version AS5048B is configured with the IC interface and has also a PWM output. An internal voltage regulator allows the AS5048 to operate at either 3.3 V or 5 V supplies.

Product Details

Model Number : GM110-10
Size : 110*33.9mm
Package : Yes
Weight : 0.3kg
Compatible Drone Brand : GoPro
Brand Name : IFLIGHTModel: GM110-10
Motor Out Diameter: 110±0.05mm
Motor Height: 33.4±0.2mm (Included with Encoder housing)
Hollow Shaft(OD): 25-0.008/-0.012 mm
Hollow Shaft(ID): 22+0.05/+0.1 mm
Wire Length: 610±3mm
Cable AWG: #24
Motor Weight: 556±1g
Wire plug: 2.5mm dupont connector
No-load current: 20V
No-load volts: 0.16±0.1 A
No-load Rpm: 292~323 RPM
Load current: 20V
Load volts: 2A
Load torque(g): 9000-15000
Motor internal resistance: 4.16Ω±5%Resistance varies with temperature
High voltage test: DC500V 1mA @2sec
Rotor housing runout: ≤0.1mm
Steering (axle extension): clockwise
High-low temperature test:
High temperature: Keep at 60 for 100 hours, and the motor can work normally after 24 hours at room temperature
Low temperature: Keep at -20 for 100 hours, and the motor can work normally after 24 hours at room temperature
Maximum power: ≤80W
Working current: 4-6S
Working temperature: -20~60;10~90%RH

Item Packing

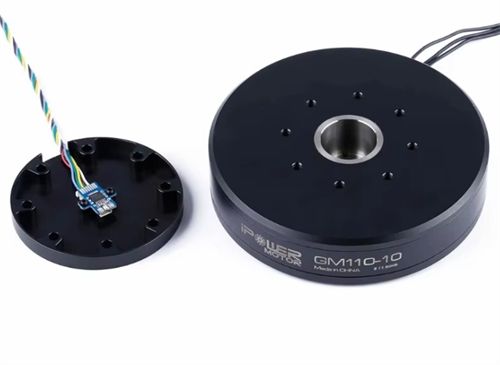

1 x AS5048A Encoder with aluminum case
1 x GM110-10 brushless gimbal motor

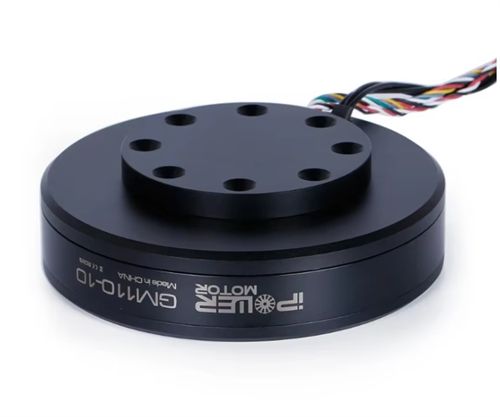

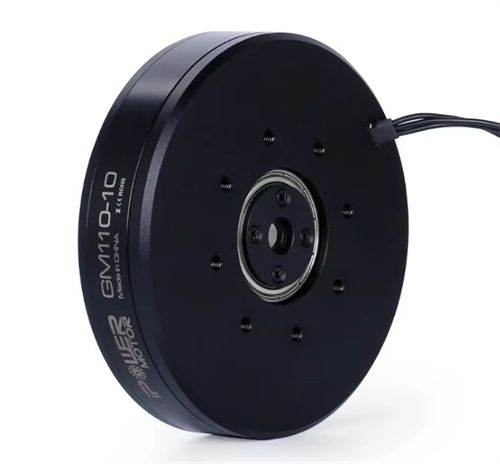

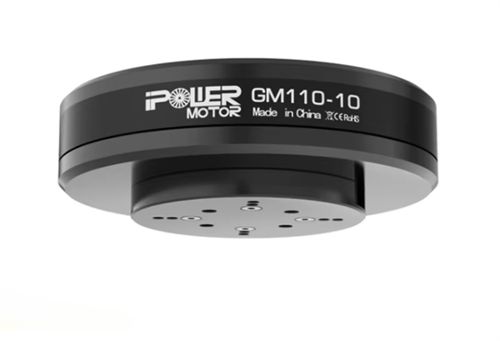

Detailed Images
