SpeedyBee F405 WING APP FC board ICM42688P Flight Controller for RC Fixed Wing Model Airplane
| Part No.: | SP-F405-WING |
| Manufacturer: | Feixiang |
Send to a friend
Features
SpeedyBee F405 WING APP FC board ICM42688P Flight Controller for RC Fixed Wing Model Airplane
Product Details
Product Name：SpeedyBee F405 WING FC board
MCU：STM32F405,168MHz,1MB Flash
IMU(Gyro&Accelerometer)：ICM-42688-P
Barometer：SPL006-001
OSD Chip：AT7456E
Blackbox：MicroSD Card Slot
UART：6 sets(USART1, USART2, USART3, UART4, UART5, UART6(Dedicated for Wireless board Telemetry connection))
I2C：1x Used for magnetometer, digital airspeed sensor
ADC：4x (VBAT, Current, RSSI, Analog AirSpeed)
PWM：12x (11+1“LED”pad)

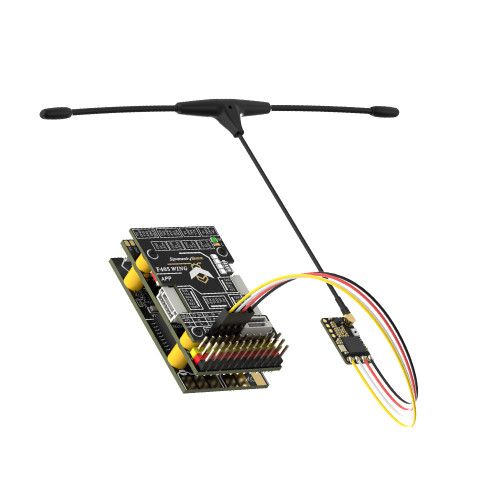

ELRS/CRSF receiver：Supported,connected to UART1
SBUS：Built in inverter for SBUS input (UART2-RX)
LED 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) 1x RGB
RSSI：Supported,Named as RS .
Supported FC Firmware：INAV:SpeedyBeeF405WING (default) ArduPilot: SpeedyBee F405WING

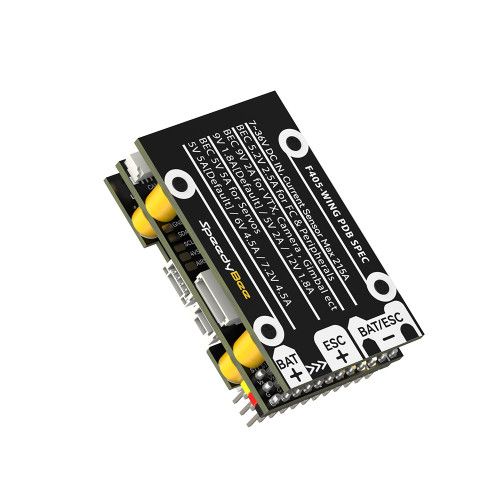

Product Name：SpeedyBee F405 WING PDB board
Input voltage range：7~36V (2~6S LiPo)
Battery Voltage Sensor：Connect to FC board VBAT, 1K:10K (Scale 1100 in iNav, BATT_VOLT_MULT 11.0 in ArduPilot)
Battery Current Sensor：90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
TVS Protective diode：Yes
FC BEC output：Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
VTX BEC output：Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
Servo BEC output：Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.
Product Name：SpeedyBee F405 WING Wireless board
Wireless Configuration (long press BOOT button for 6 seconds to switch modes)：BLE mode, connect to Speedybee APP； Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc. ；Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes)：4x WS2812 LED strip connectors, adjustable colors and flashing modes；Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
On-board battery level indicator：4x RGB indicator LED for battery level display by number of lights
Item Packing
SpeedyBeeF405 WING FC board x1
SpeedyBeeF405 WING PDB board x1
SpeedyBeeF405 WING Wireless board x1
SpeedyBeeF405 WING USB extender x1
90 Degree pin Header(3x12) x1
straight pin header(1x12) x 3
White straight pinheader(1x4) x1
M2 x 12 copper Standoff Spacer x5
M2x4 small head cross screw x10
M3x4 mm Silicone Grommets x5
8pin SH1.0 USB extender Cable(80mm) x1
4pin SH1.0 Analog VTX Cable (250mm) x1
6pin SH1.0 GPS Module Cable without Connectoron another end (250mm) x1
6pin Digital VTX Cable (250mm) x1
4pin SH1.0 to 3+2pin JST1.25 FPV CamCable(250mm) x1
6pin GH1.25 Telemetry module Cable(200mm) x1
4pin Dupont single-headCable(150mm) x1
Double-sided tape for isolatingpins and cables(32x9x1mm) x1
SpeedyBeeF405 WING PDB board x1
SpeedyBeeF405 WING Wireless board x1
SpeedyBeeF405 WING USB extender x1
90 Degree pin Header(3x12) x1
straight pin header(1x12) x 3
White straight pinheader(1x4) x1
M2 x 12 copper Standoff Spacer x5
M2x4 small head cross screw x10
M3x4 mm Silicone Grommets x5
8pin SH1.0 USB extender Cable(80mm) x1
4pin SH1.0 Analog VTX Cable (250mm) x1
6pin SH1.0 GPS Module Cable without Connectoron another end (250mm) x1
6pin Digital VTX Cable (250mm) x1
4pin SH1.0 to 3+2pin JST1.25 FPV CamCable(250mm) x1
6pin GH1.25 Telemetry module Cable(200mm) x1
4pin Dupont single-headCable(150mm) x1
Double-sided tape for isolatingpins and cables(32x9x1mm) x1

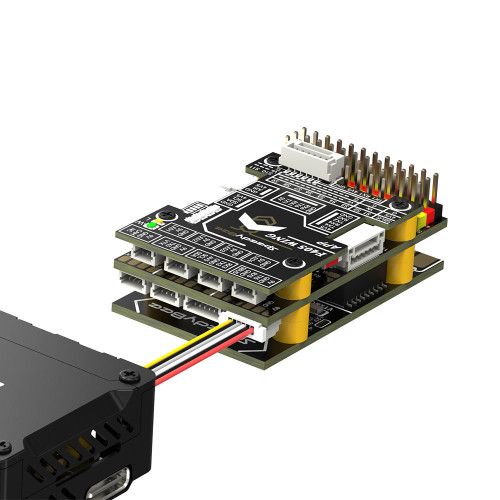

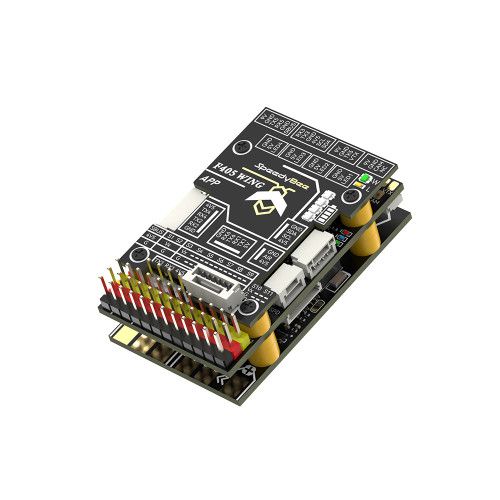

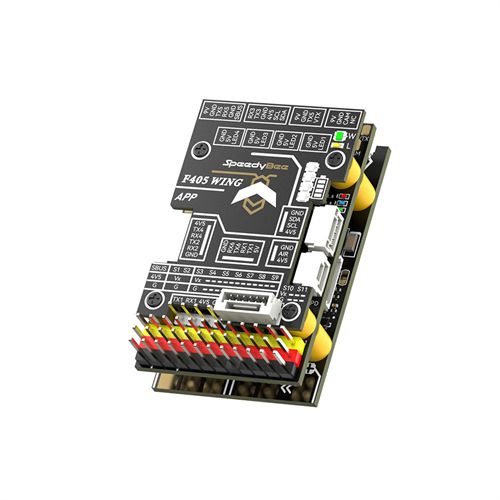

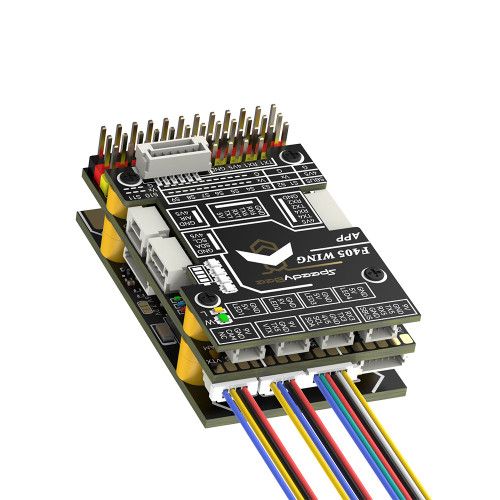

Detailed Images
